Wireless Smart Light Switch RF 433MHz Remote Control Switch AC 95-250V 10A Module 86 Wall Panel for Bedroom,Gallery Lights Lamp
14:350853#KT06
- Free worldwide shipping
- In Stock & Ready to Ship
- In stock, ready to ship
SPECIFICATIONS
Application scenario: Led Light Lamp Switch, Home Security Alarm System
Application2: Family, Farm, Factory, Office, Supermarket
Application3: Car Sunroofs Control, Mando Garaje
Application4: Bathroom Fixture,Kitchen Fixture,Family Intelligence System
Application5: Caring for the elderly, children, women, pregnant women
Brand Name: tedeligo
Certification: EMC,CQC,CE,CCC,CCC
Controller Max current: 10A
Controller Shell: YES
Controller Working Voltage: AC 90~250 V
Controller size: 3.19*1.61*0.98 in(81*41*25 mm)
Current: 10A
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Features: 433Mhz RF,lighting-control-switch,,Push-button-Switch with Fluorescence RF control 1Ch receiver
High-concerned chemical: None
Is Smart Device: no
Item Type: SWITCHES
Material: Plastic
Model Number: 2201D+WP04+KT
Modulation Mode: ASK superheterodyne wireless reception
Origin: Mainland China
Quiescent Current: less than 5mA
RF frequency: 433MHz
Receiving Sensitivity: more than 97dbm
Remote Control Size: 2.36*1.18 in(60*30 mm)
Remote Distance: Up to 50m in theoretical distance
Switch Type: Remote Control
Switch battery: 1pcs CR2032 battery(not include)

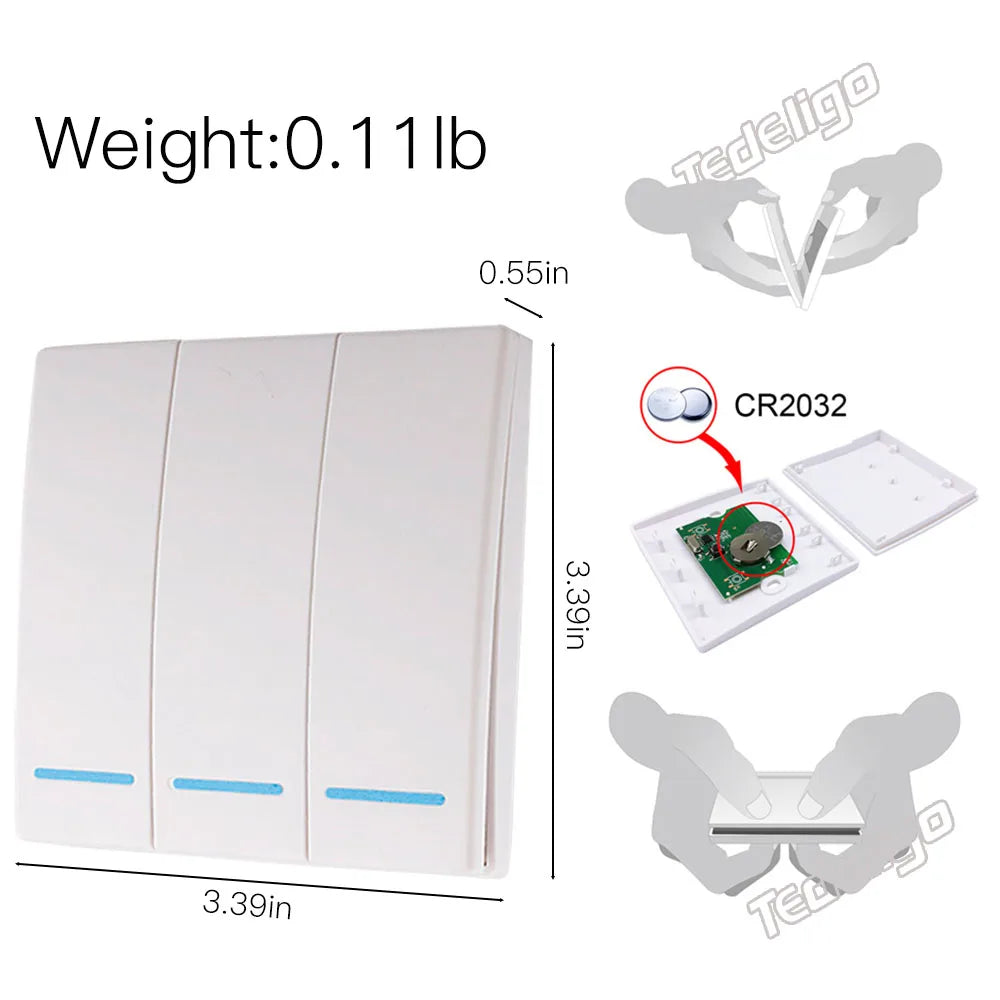

Switch size: 3.39*3.39*0.51 in(86*86*13 mm)
Warranty: 1 Year
Working temperature: -30~+80 Celsius
wireless light switch RF 433MHz Push button Remote Control AC 95-250V 10A Receiver wall panel For bedroom,gallery lights lamp

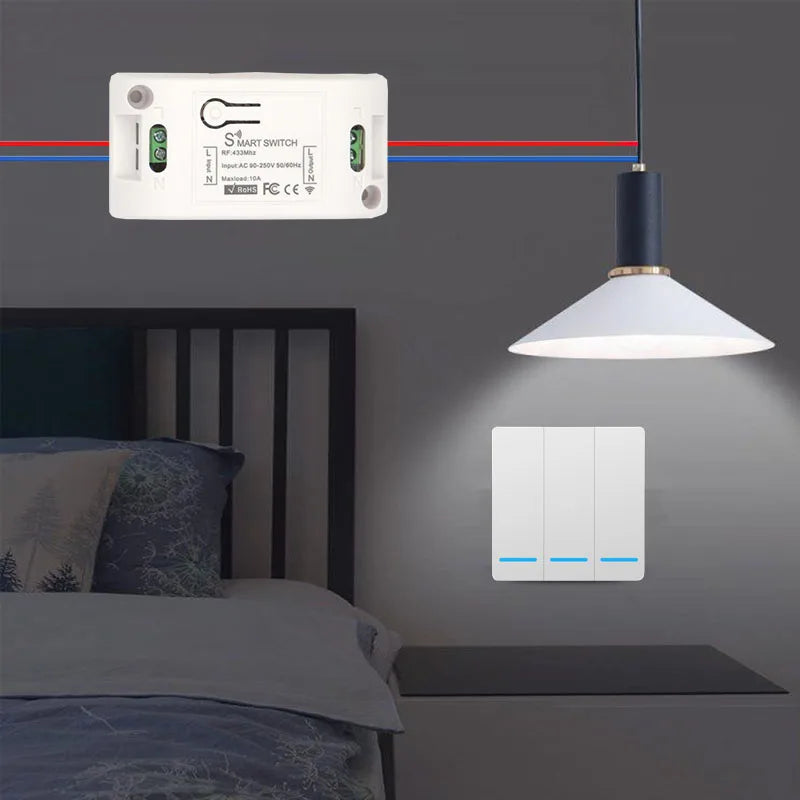

How to Connect:

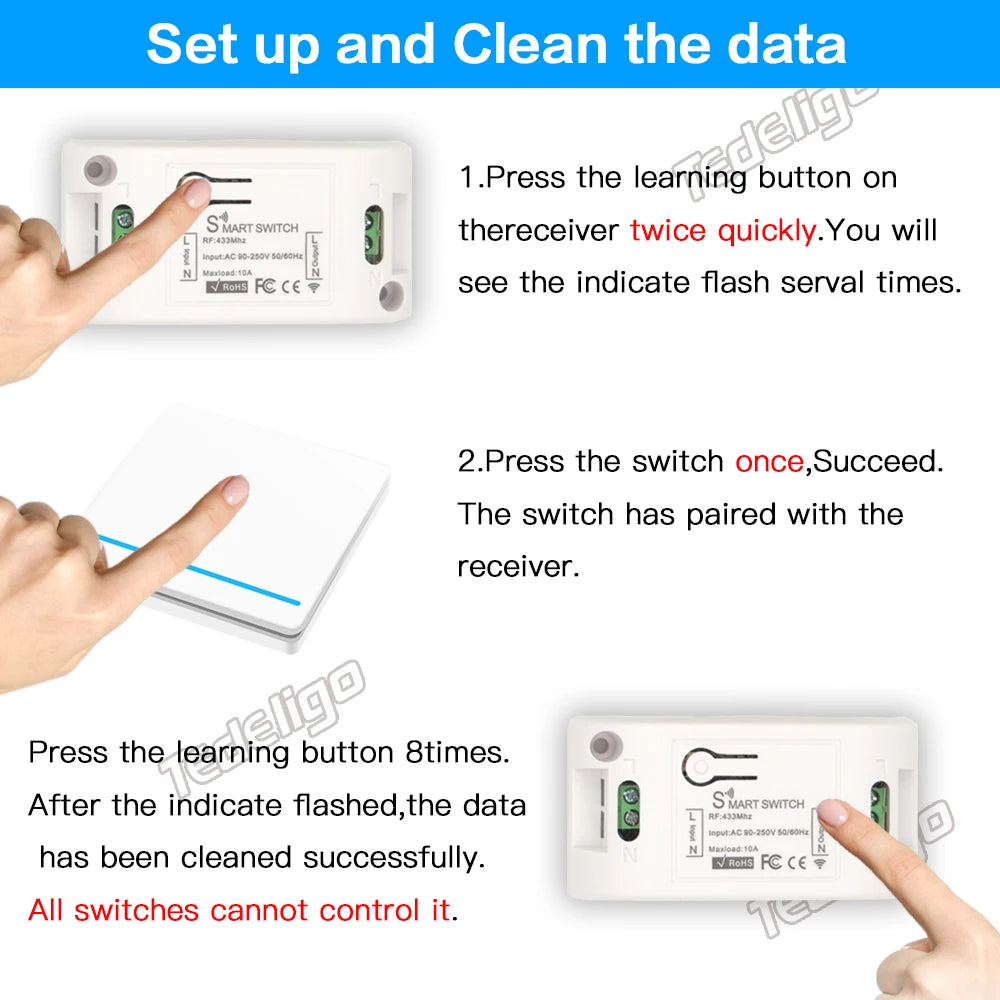

How to Set up:
1.Press the learning button twice quickly
2.Press switch once,Succeed.
How to reset
1.Press learning button 8times.Succeed.
More to learn
This controller also has another 2 modes.
Press the learning button once,press the remote/switch once,succeed.
--Press and hold the button,the controller will work.Release the button the controller will stop.
Press the learning button twice,press A button once,Press B button once,succeed.
--Press A button,the controller will work.Press B button,the controller will stop.
You can set up remote and switch in different modes to control this controller.
Product Parameter:
parameter |
Controller |
Input power |
AC 90-250V |
Frequency |
433MHz |
Remote storage |
25pcs |
Size |
3.19*1.61*0.98 in |
Max Current |
10A |
Shell |
Yes |
Port |
L/N |
Certification |
CCC,CE,RoHS |
Feature |
Easy connect,Easy setup |
parameter |

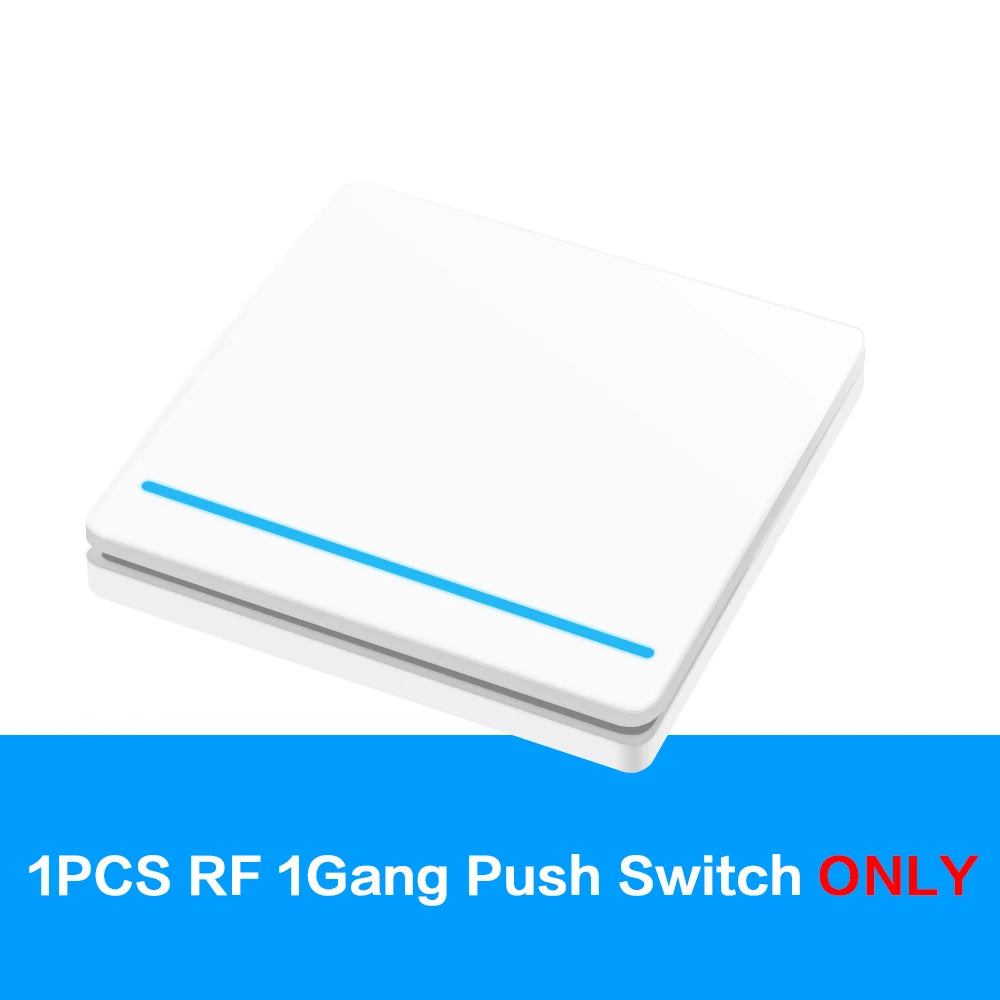

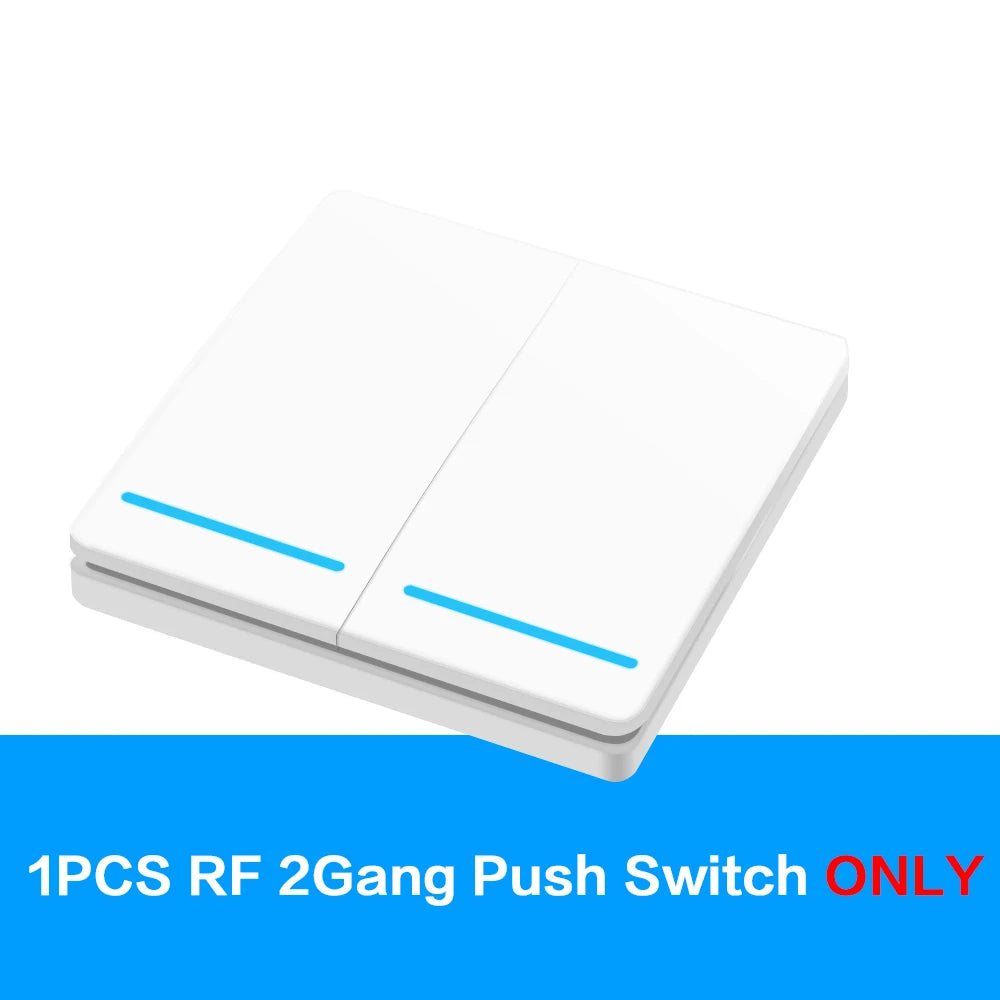

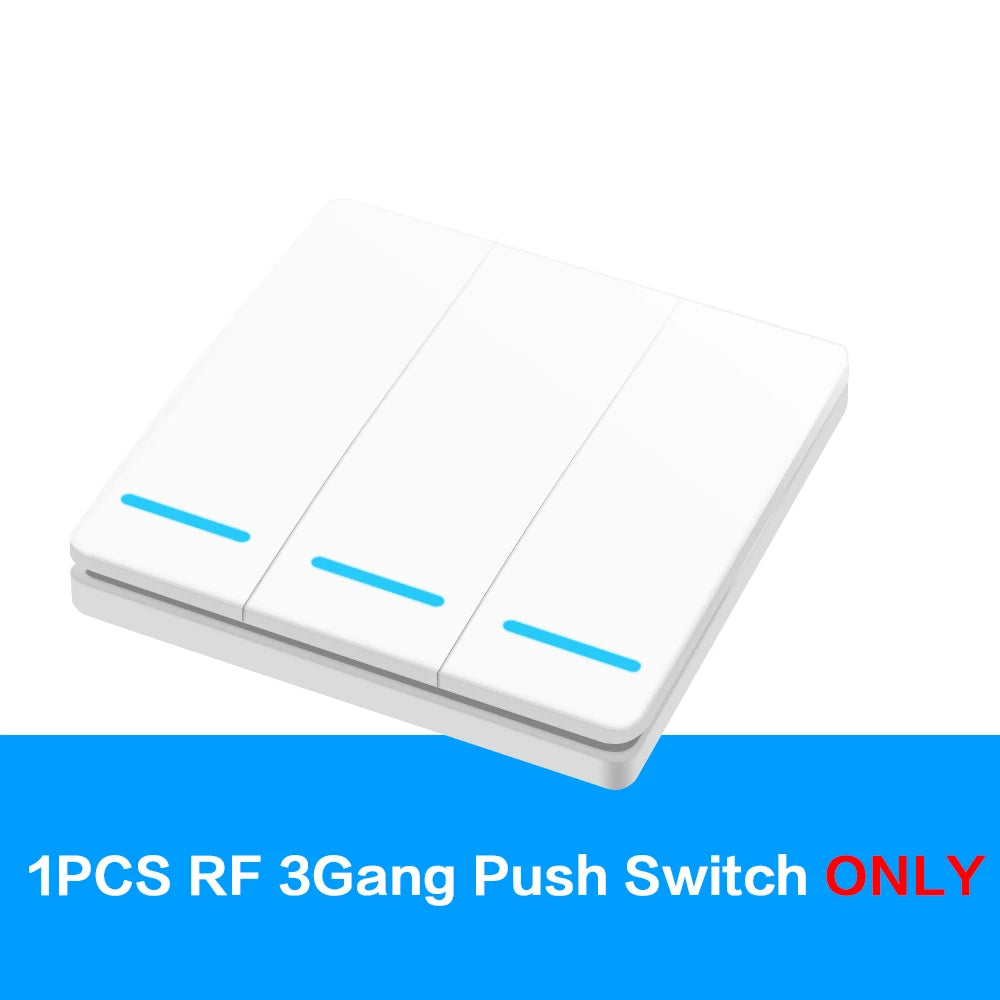

Wall Switch |
Size |
3.38*3.38 in |
Frequency |
433MHz |
Battery |
1*CR2032 (Not include) |
Control Distance |
20-50 meters |
Material |
Plastic |
Working Voltage |
3V |
Feature |
Has Fluorescent strip |
Feature2 |
Has 3M glue,can stick anywhere |
Feature3 |
Can Work with all recievers in our store |
parameter |

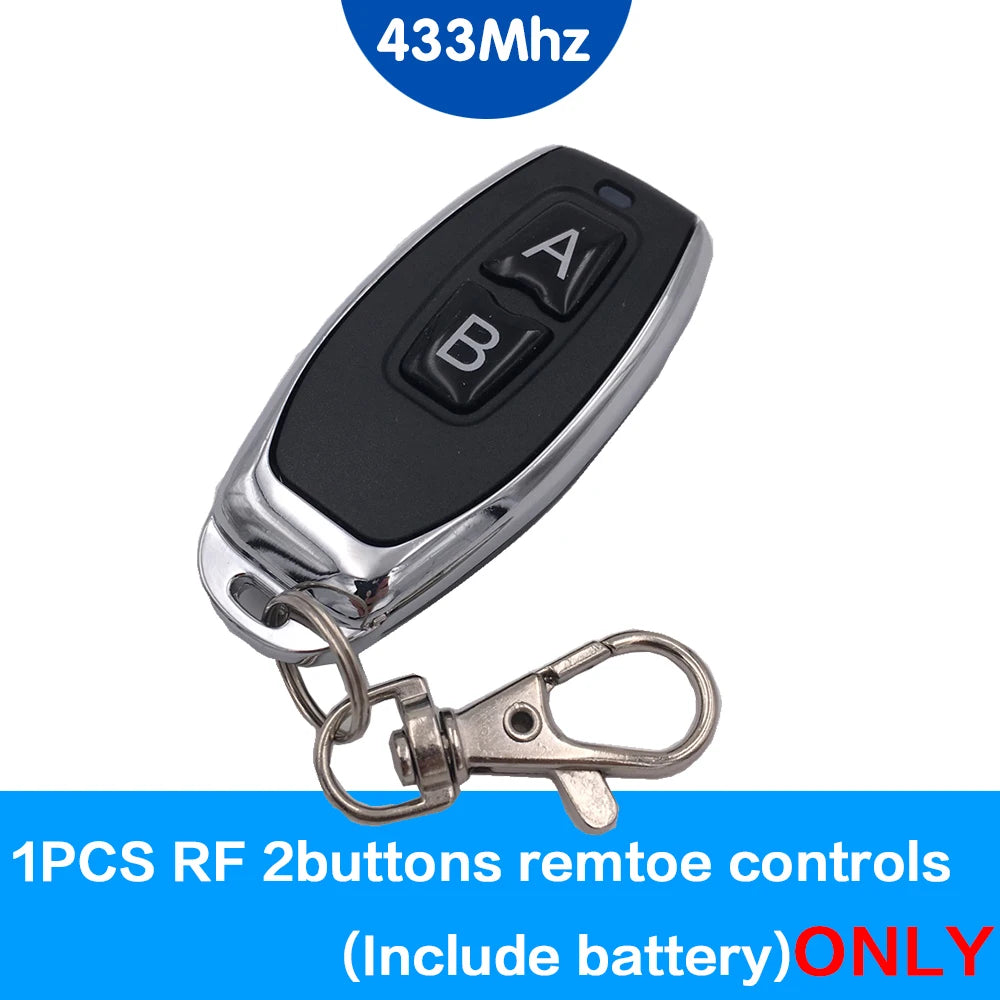

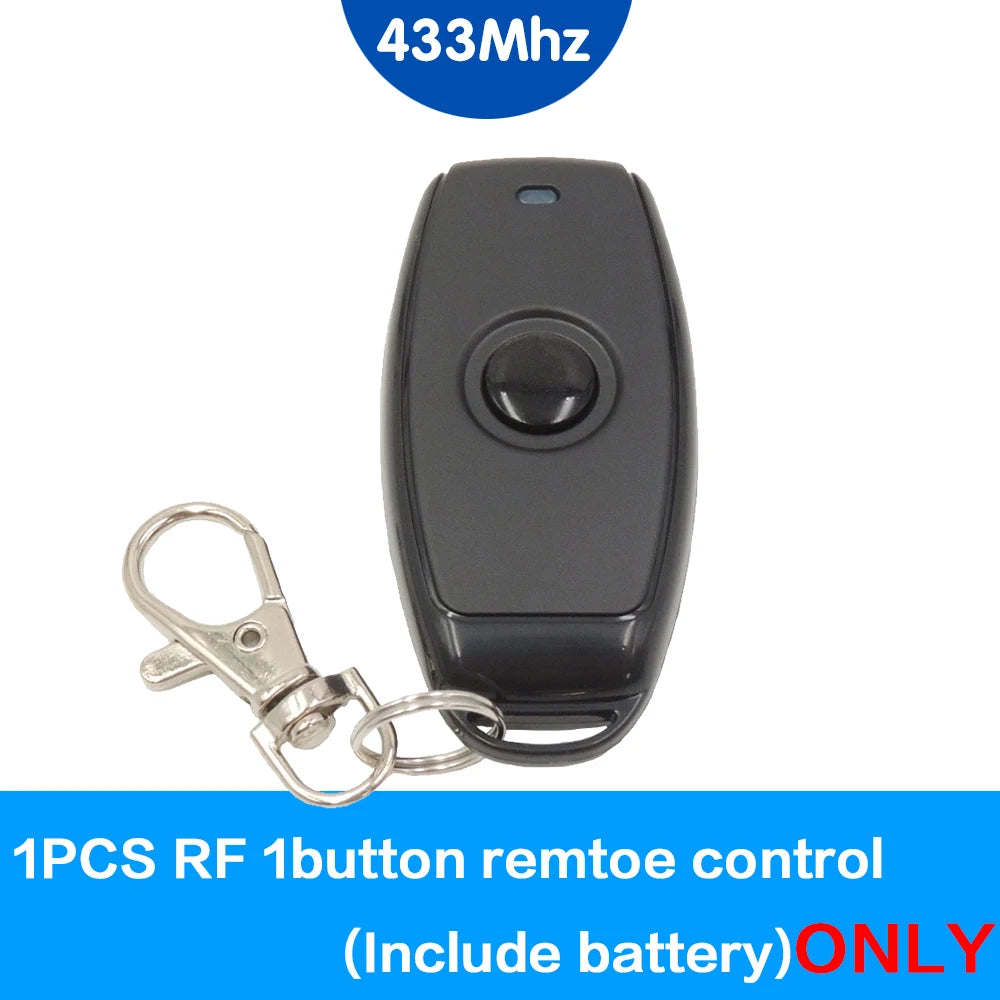

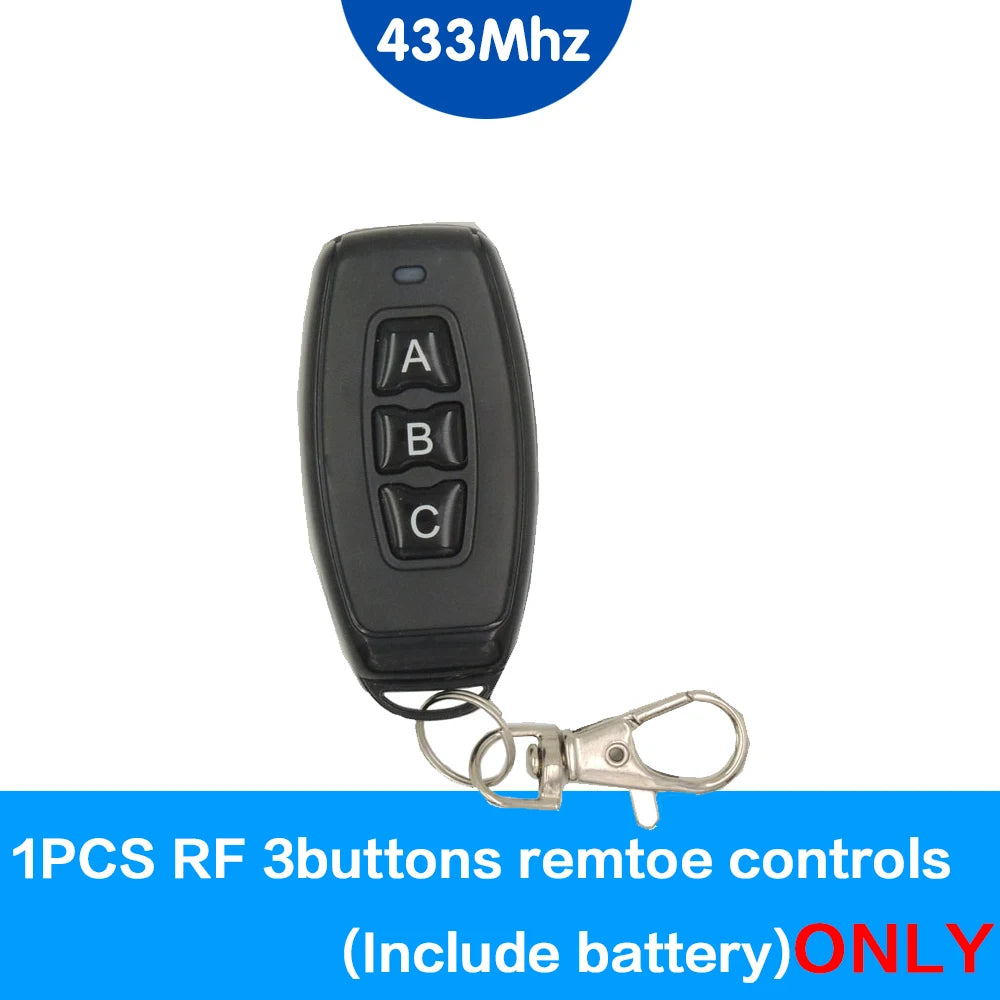

Remote Control(1,2,3,buttons) |
Size |
2.36*1.18 in |
Frequency |
433MHz |
Battery |
2*CR2016(include the battery) |
Control Distance |
20-50 meters |
Material |
Plastic |
Working Voltage |
3V |
Feature1 |
small size,can put in pocket |
Feature2 |
has keychain,wear on jeans |
Feature3 |
Can Work with all recievers in our store |
Features:

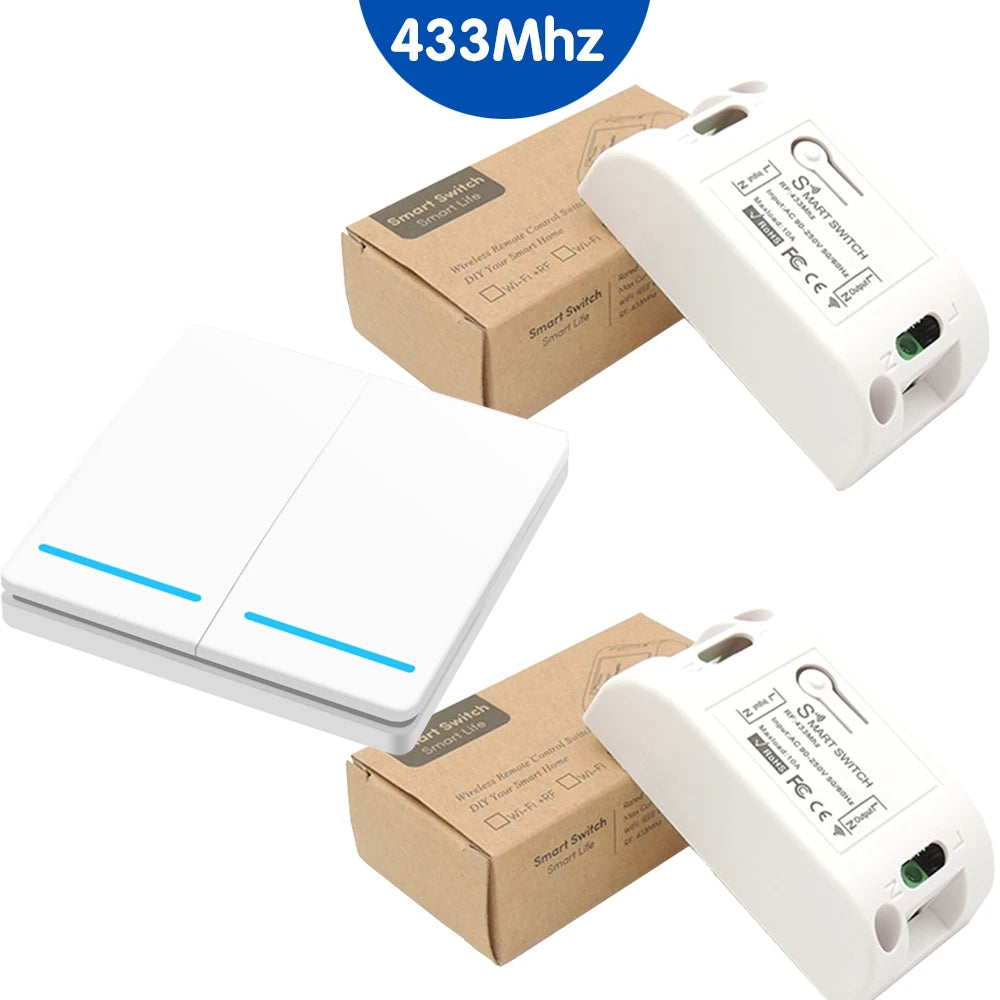

1.Multi switches control same receivers.One receiver can be controlled by many switches.
Save energy and avoid darkness.
2.3M Glues and screws,pasted on anywhere,Convenient.
3.Has Fluorescence
Easy to find in the dark night
4.Small Size and easy to replace the battery
Hold in hand or put on the wall
5.Has keychain,not easy to lose

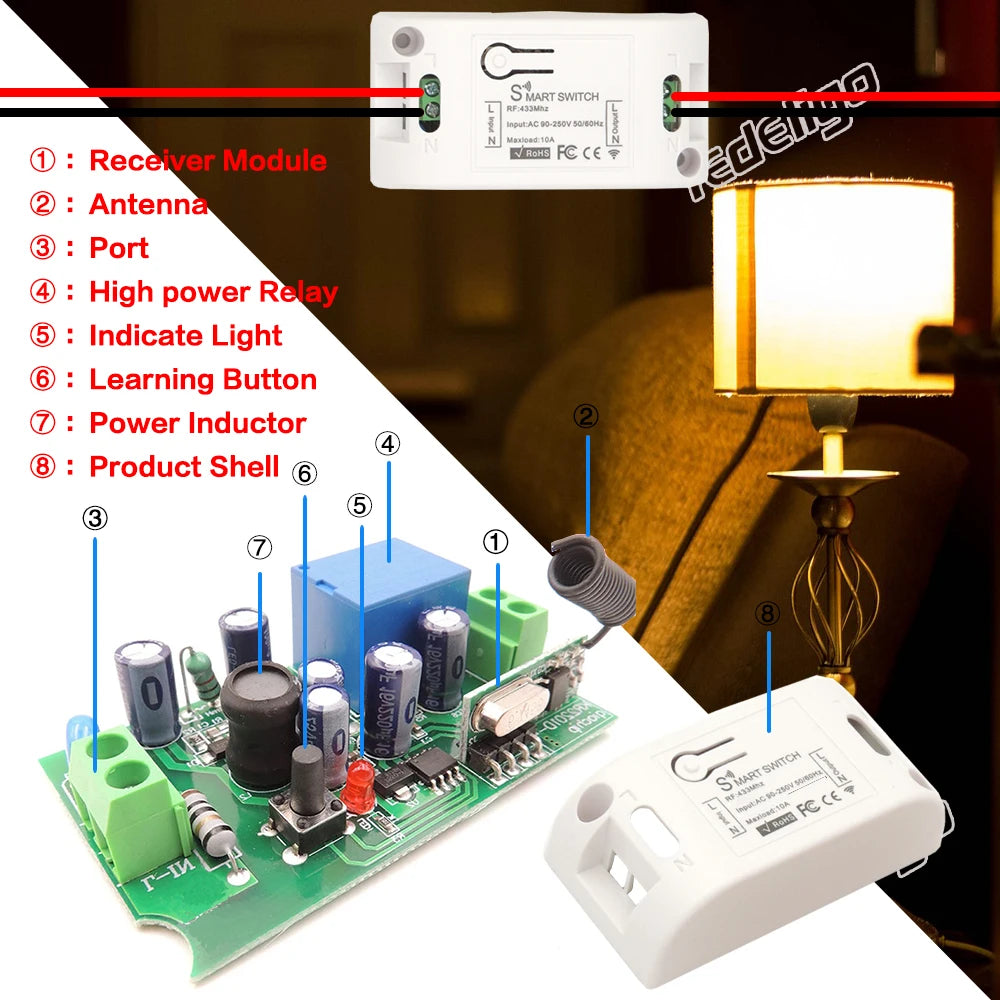

Product Detail:
1.Receiver Module
2.Antenna
3.Port
4.High Power Relay
5.Indicate Light
6.Learning Button
7.Power Inductor
8.Protect Shell

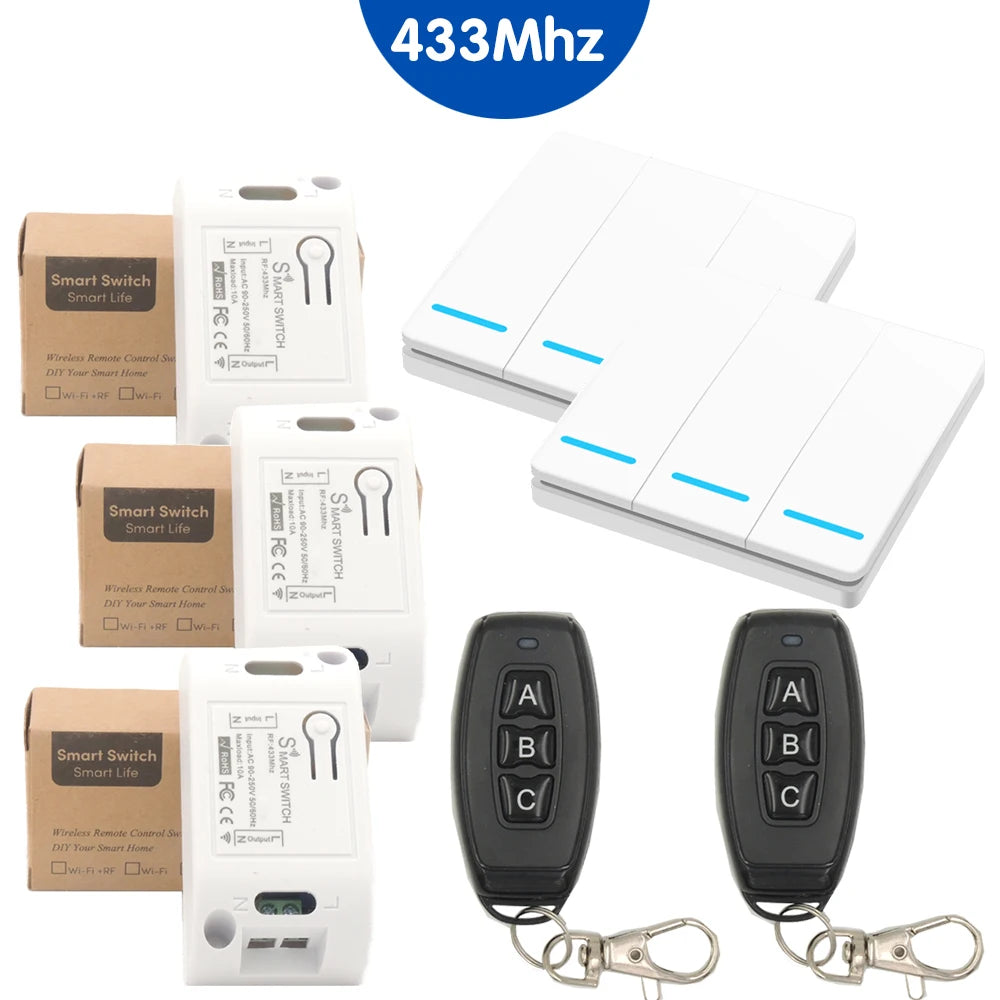

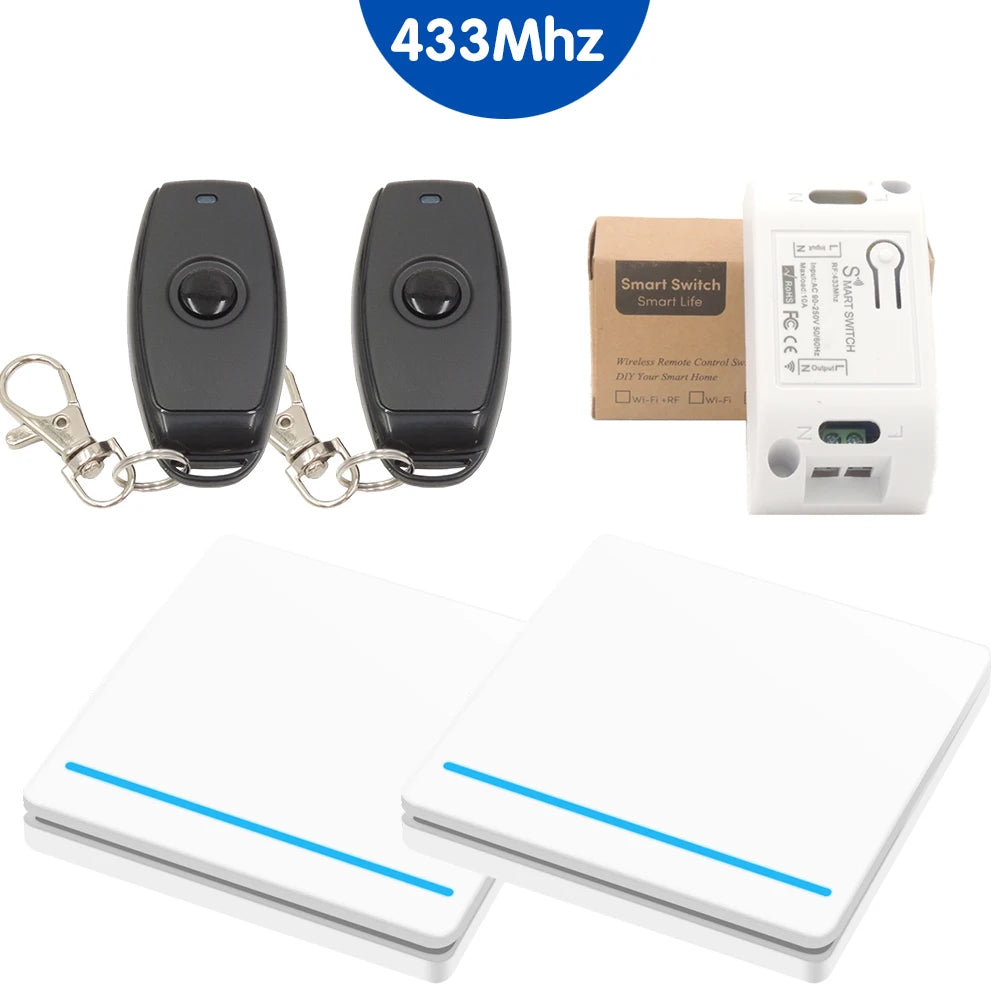

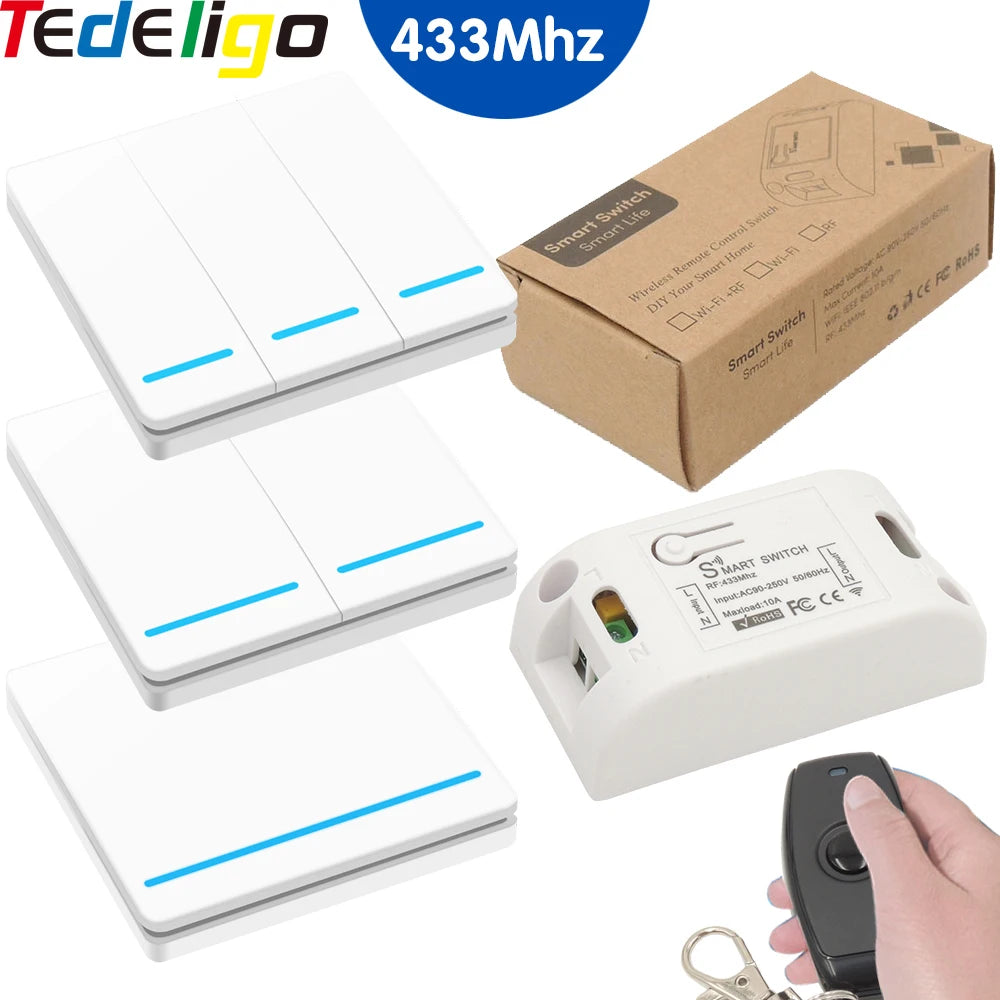

Package include:

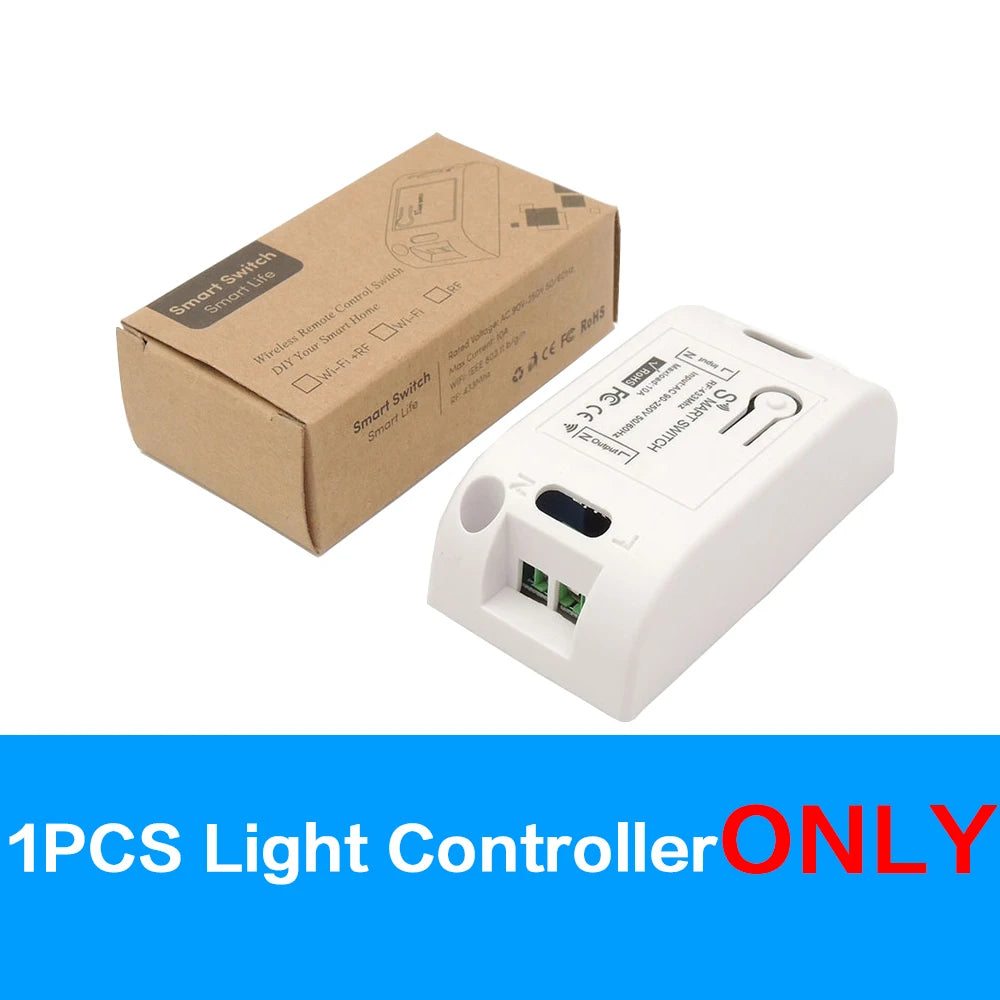

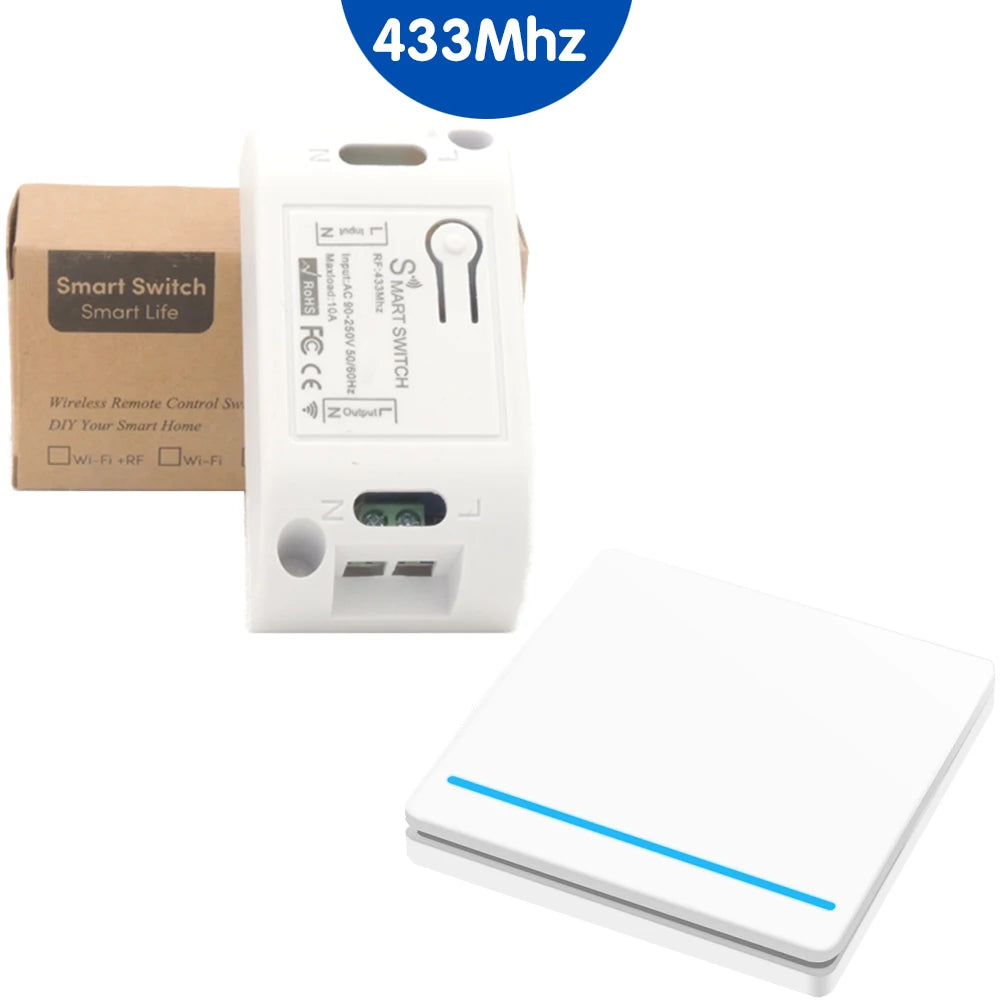

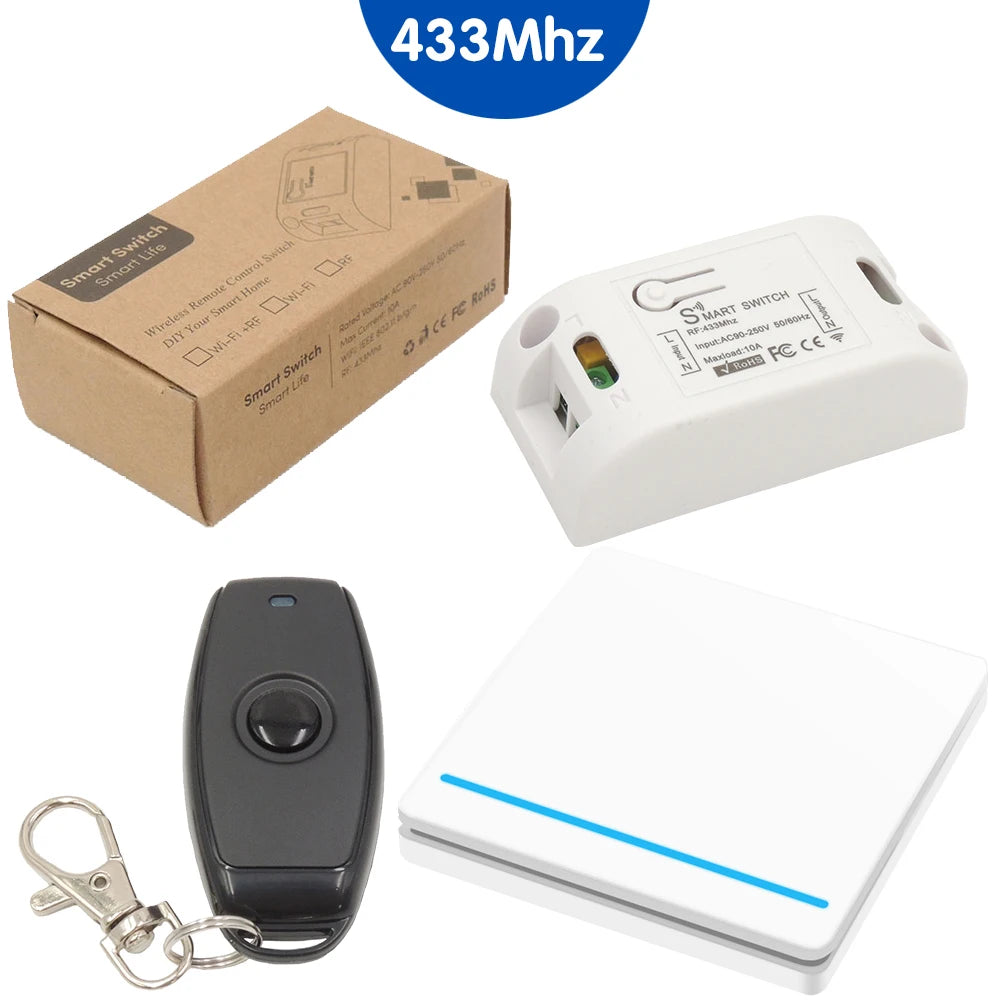

For controller : RF receiver(with box) and 1pcs Product manual
For switch : Push button switch(not include battery,with box) and 2pcs screws,2pcs 3Mglues
For remote control : Remote control(with battery) with keychain
The package depends on the product you choosed

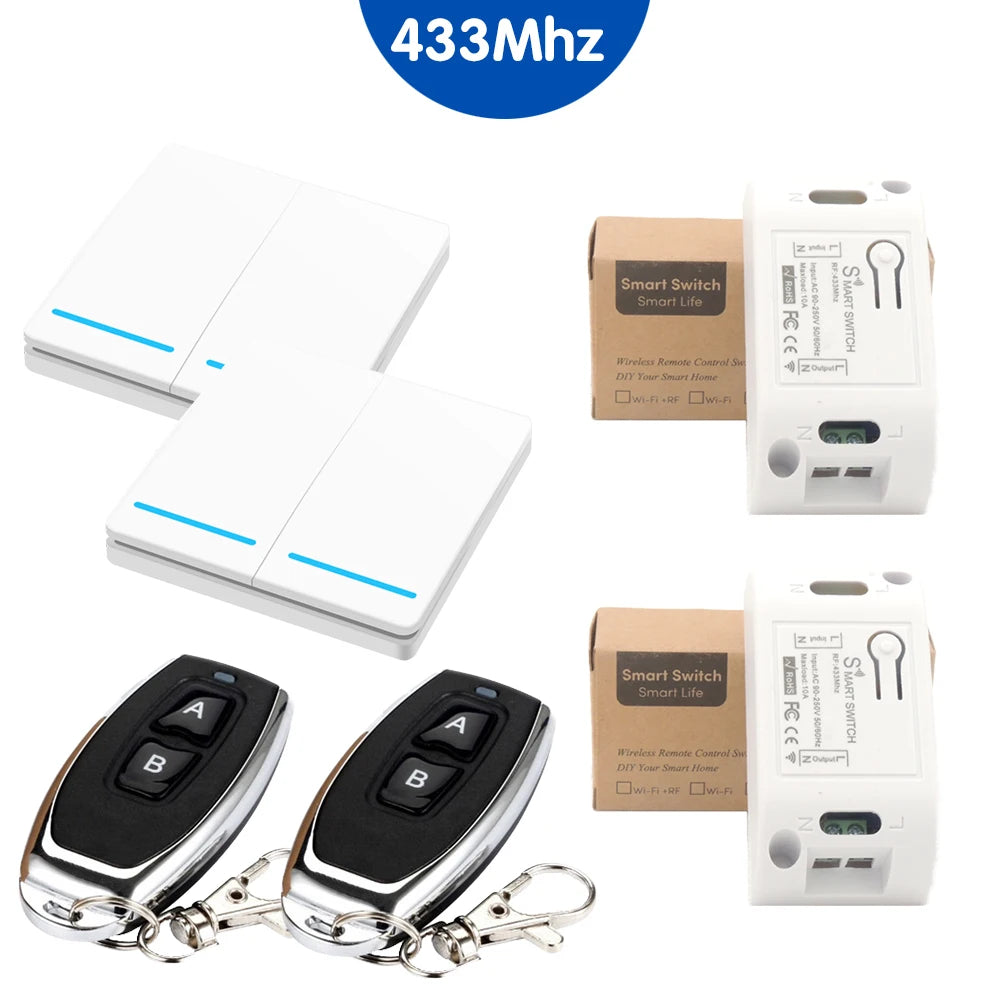

1.Can one receiver be controlled by multi switches? Or remote controls?
Yes.Of course.One receiver can be controlled by almost 10pcs switches.And you can use a remote and a switch to control this receiver.
2.When the power off and suddenly comes again,does the lamp/device light automaticly?
No.The device only works when you pressed the switch again.Our products are designed for saving energy.
3.Does the receiver need Neutral line?
Yes.Our receiver needs both Live line and Neutral line.
4.Do you have a wholesales price?
Yes.Please contact with us,we will give you the best price
Please contact with us if you have any questions.Thank you.
