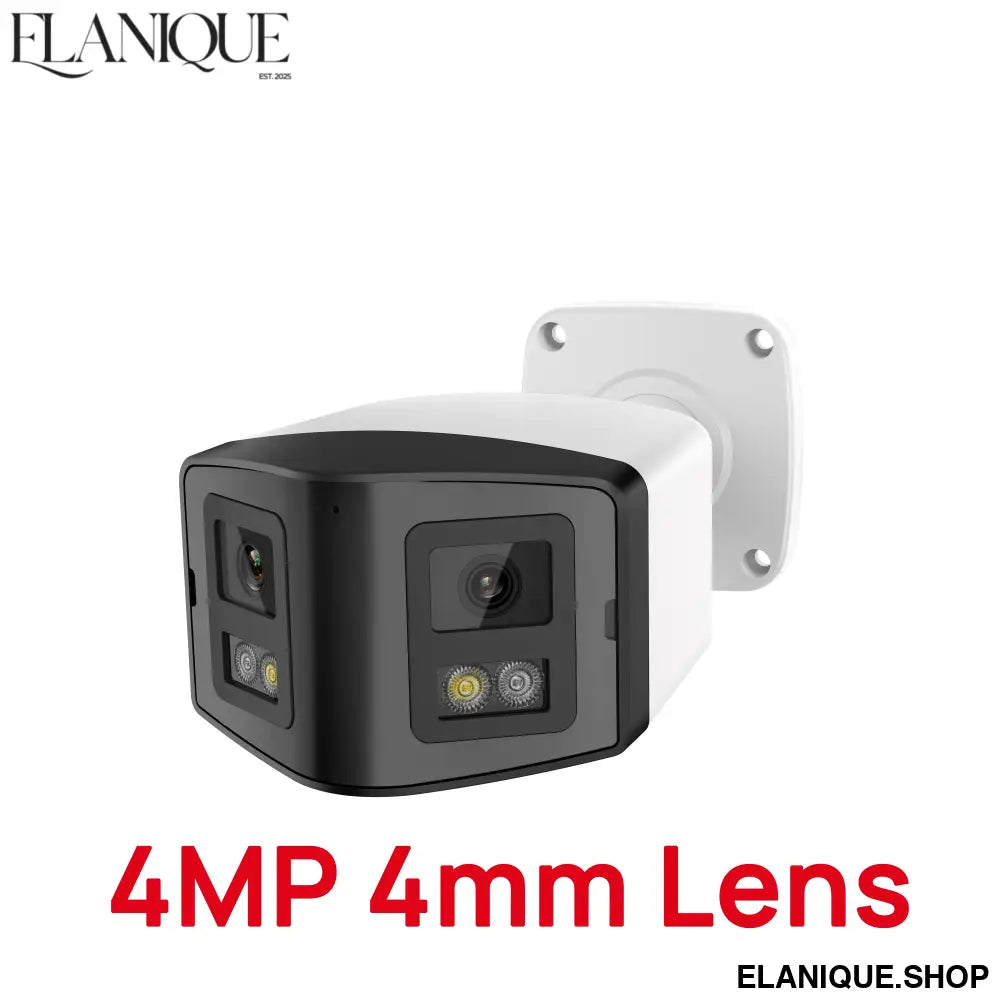

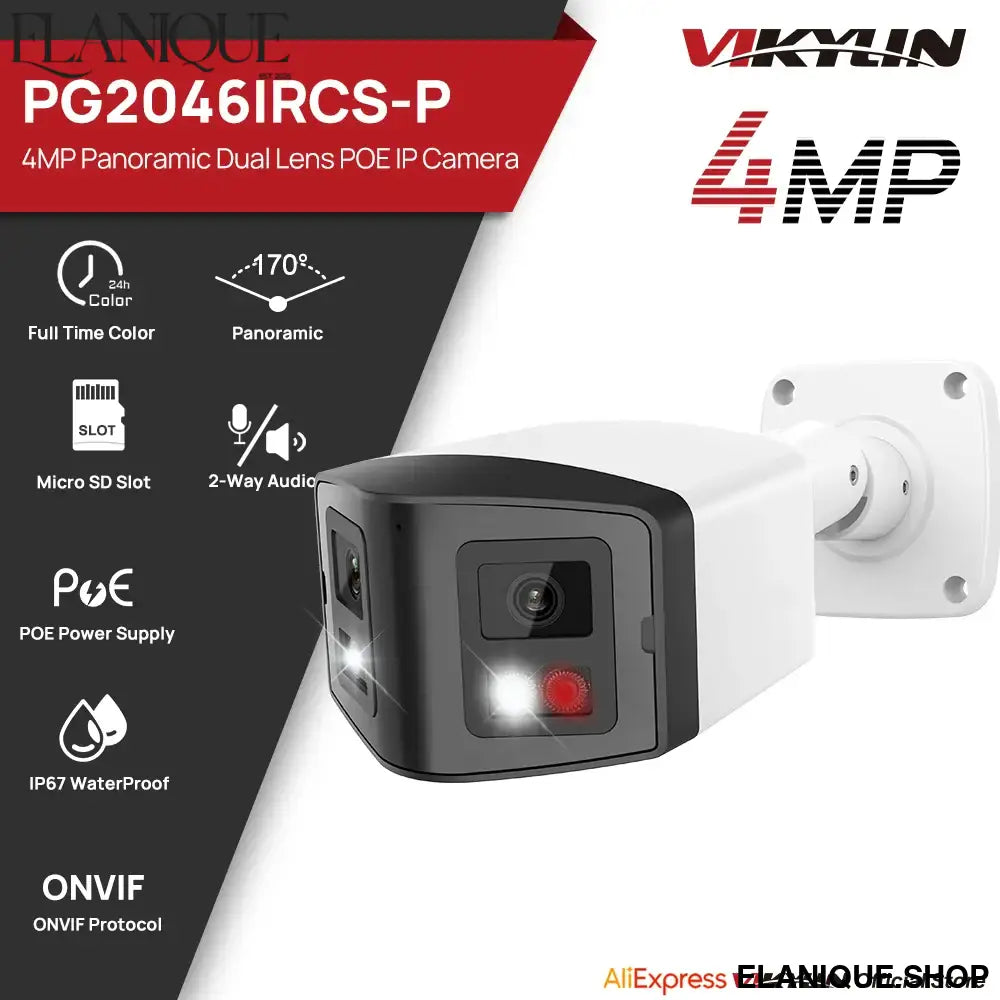

VIKYLIN 170° Panoramic Dual Lens IP Camera – 4MP PoE, IP67, Smart Dual Light
200000891:200004524#4MP 4mm
- Free worldwide shipping
- In Stock & Ready to Ship
- Low stock - 8 items left
The Camera That Sees Around Corners
Standard security cameras have a fundamental limitation: they see in one direction. No matter how high the resolution or how advanced the technology, a single-lens camera with a standard field of view will always leave blind spots — areas that are unmonitored, unrecorded, and potentially exploited. The VIKYLIN 170° Panoramic Dual Lens IP Camera addresses this limitation directly, delivering a 170° panoramic field of view through a dual-lens construction that covers the kind of wide-area surveillance that standard cameras simply cannot achieve.
The Problem With Standard Field-of-View Cameras
Most security cameras provide a viewing angle of 90–120° — sufficient for monitoring a specific, defined area, but inadequate for comprehensive coverage of larger spaces, wide corridors, car parks, or any environment where the area of interest extends beyond the camera’s fixed field of view. The result is a security system with gaps — areas that are technically covered but practically unmonitored, because the camera cannot see far enough to the left or right to capture what is happening at the edges of the space.

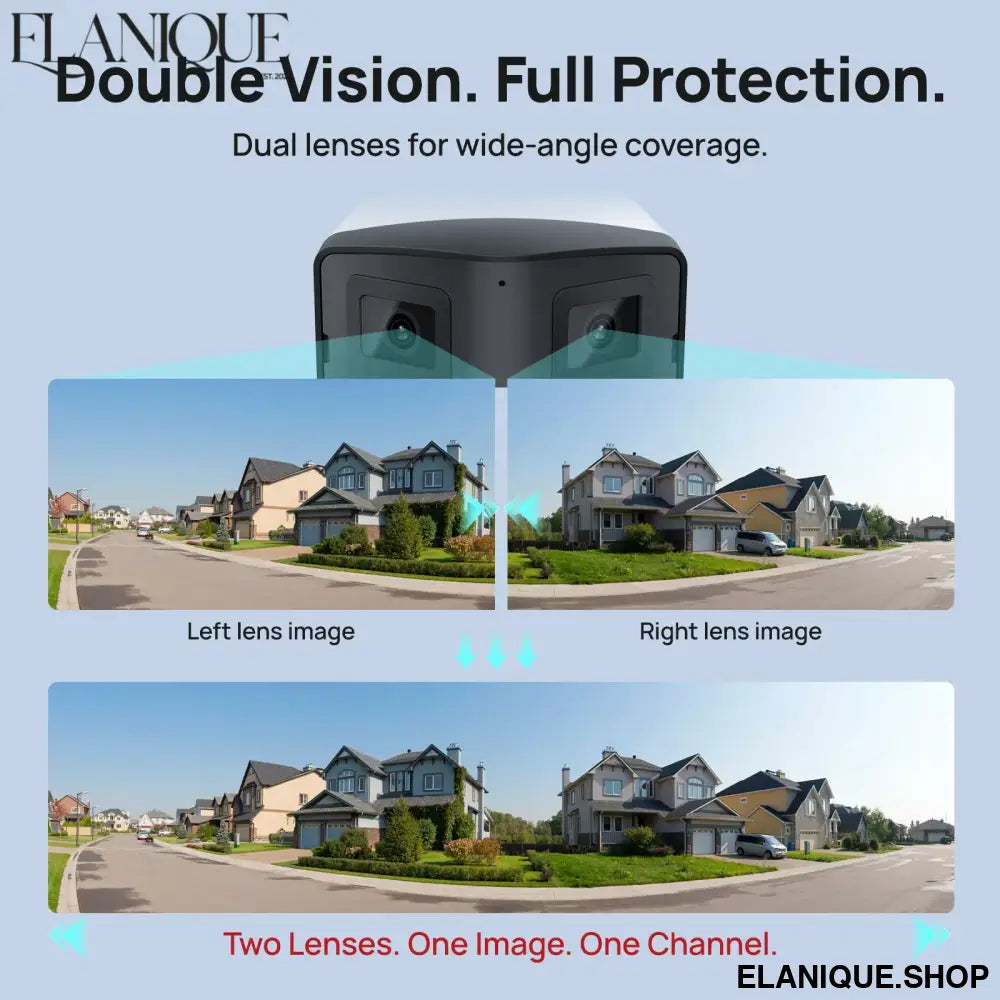

The 170° panoramic field of view of the VIKYLIN camera eliminates these gaps. The dual-lens construction — with a horizontal FOV of 180° and a vertical FOV of 40° — provides comprehensive coverage of wide spaces with a single camera, reducing the number of cameras required to achieve complete coverage and simplifying the installation and management of the security system.
4MP Dual Lens: Resolution Across the Full Panoramic View

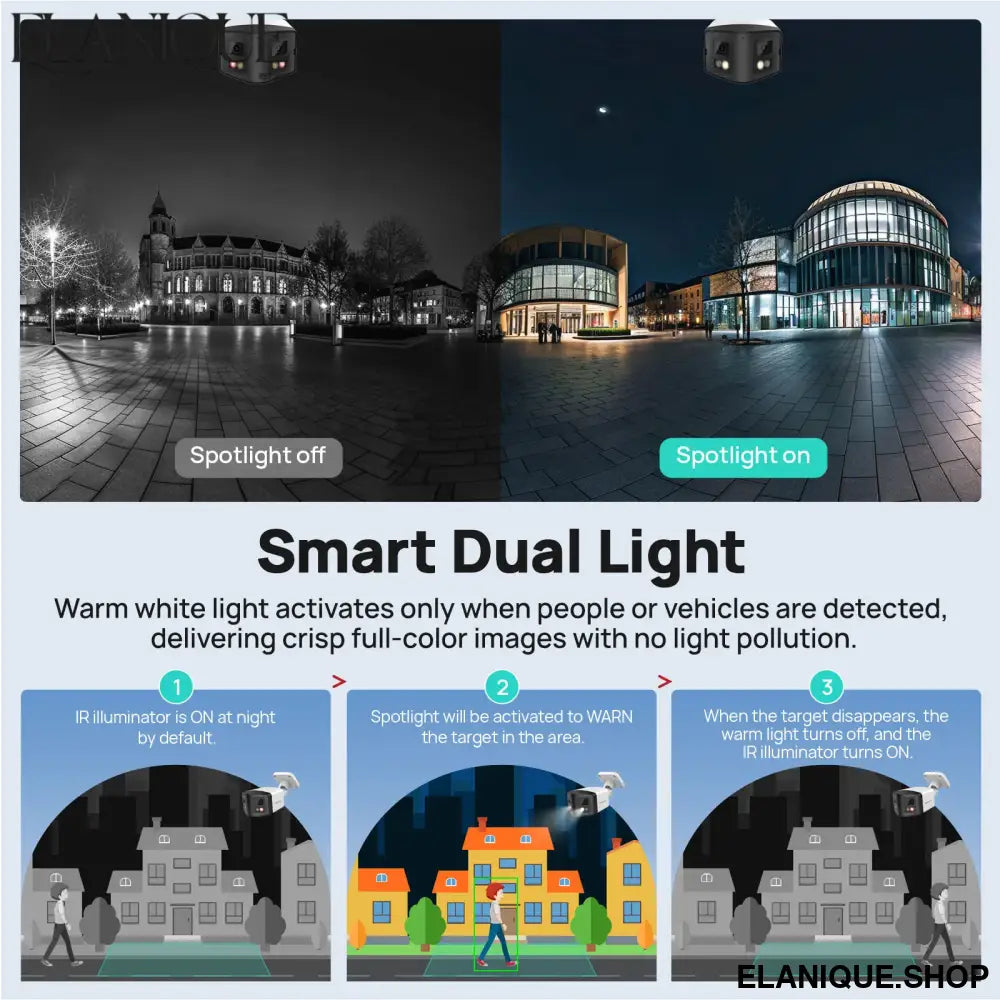

The 4MP resolution — delivered by dual 1/2.9” GC2063 CMOS sensors with a maximum resolution of 3840 x 1080 — ensures that the exceptional field of view is matched by exceptional image quality. The F1.6 aperture provides excellent low-light performance, with a minimum illumination of 0.05 lux delivering usable footage in near-darkness. The smart dual light system — combining IR illumination and white light — provides up to 30 metres of illumination in any lighting condition, ensuring that the camera’s identification capability is maintained around the clock.

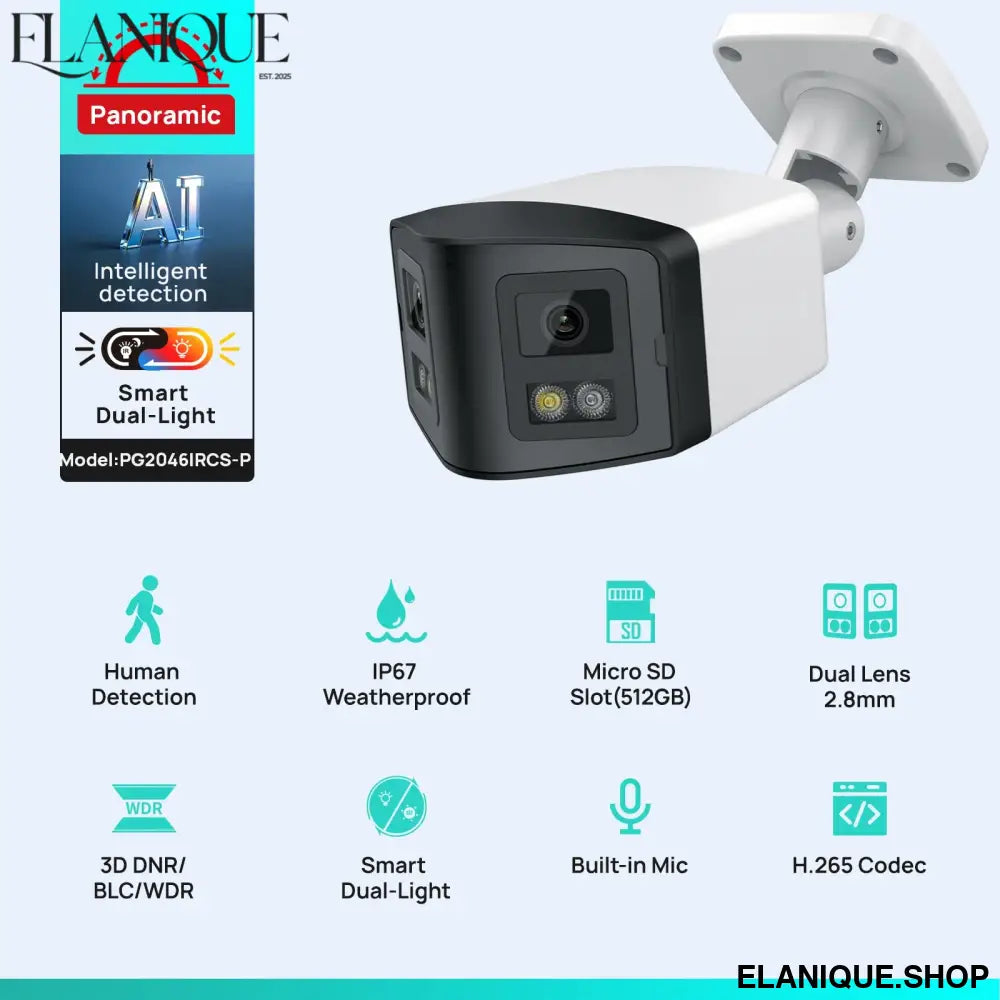

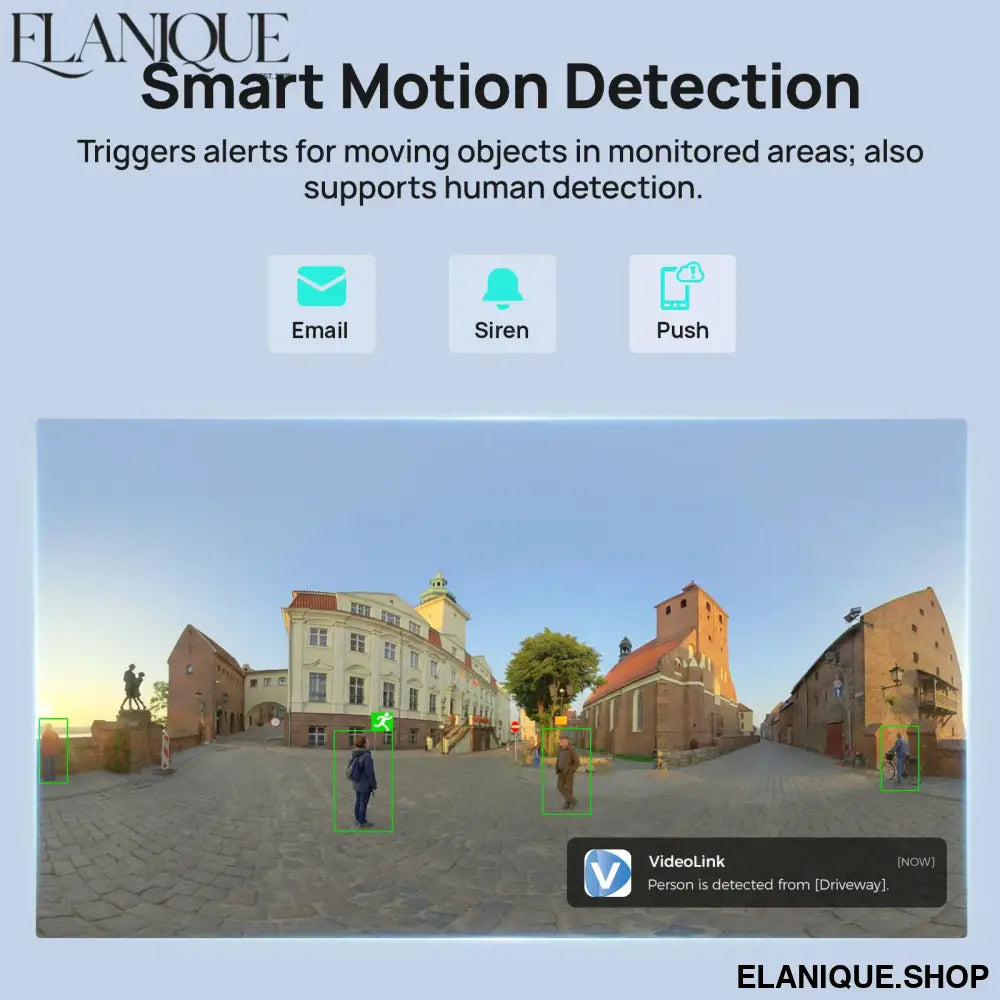

AI Human Detection: Intelligence That Reduces False Alerts
The AI human detection function distinguishes between human movement and other motion sources — animals, vehicles, wind-blown foliage — reducing false alerts and ensuring that you are notified only when a person enters the monitored area. The motion detection trigger supports recording to memory card, network storage, and cloud, with FTP, HTTP, NAS, and email notification options providing comprehensive alert delivery across multiple channels.
PoE and IP67: Professional-Grade Installation and Durability
The PoE (Power over Ethernet) power supply simplifies installation by delivering both power and data over a single Ethernet cable, eliminating the need for a separate power supply at the camera location. The IP67 weather resistance rating ensures that the camera can withstand the full range of outdoor conditions, and the operating temperature range of -30°C to 85°C ensures reliable performance in virtually any climate. The ONVIF compatibility ensures seamless integration with existing security systems and NVRs.
Why This Camera Belongs in Your Security Installation
- 170° panoramic field of view for comprehensive wide-area coverage
- 4MP dual-lens construction for high-resolution panoramic imaging
- Smart dual light system for 30m illumination in any lighting condition
- AI human detection for intelligent, relevant alerts
- PoE power supply for simplified, single-cable installation
- IP67 weather resistance for reliable outdoor performance
- Up to 512GB on-board storage
- ONVIF compatible for seamless system integration
- 14-language web client for international deployment
- Two-way audio for remote communication

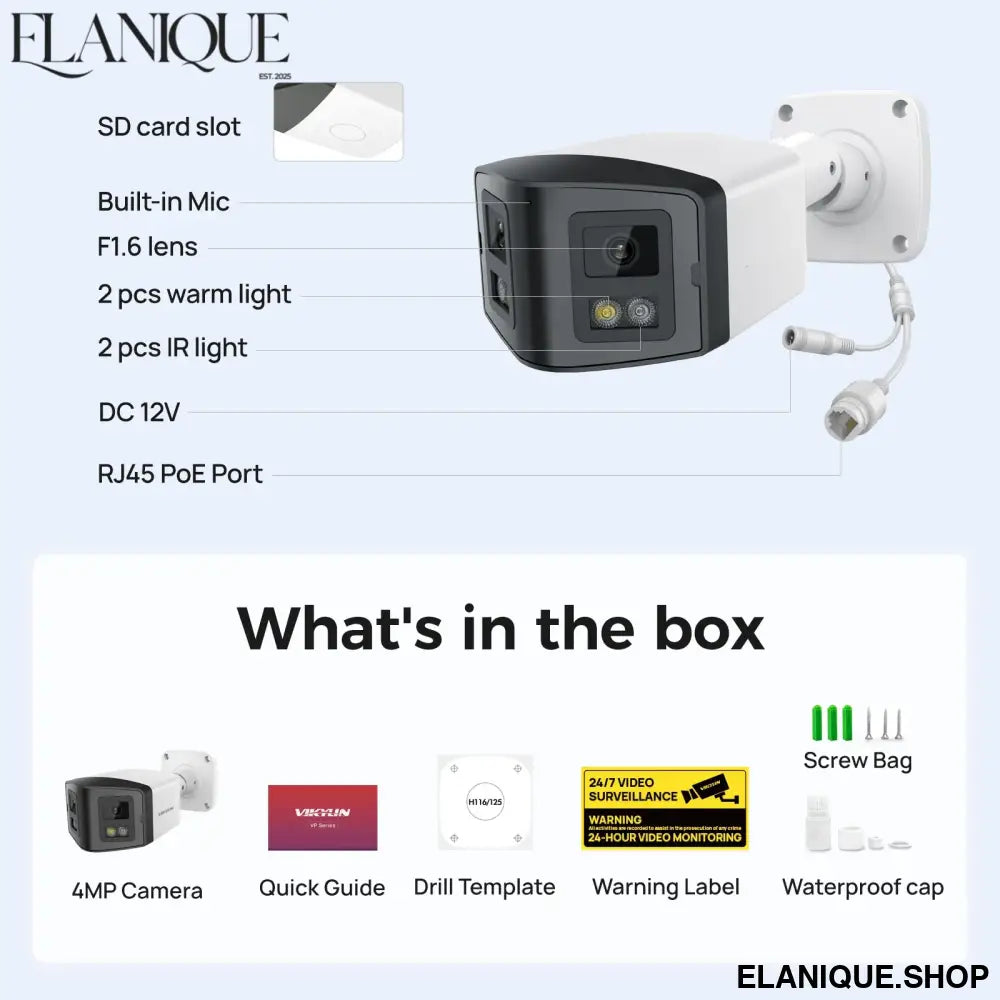

Specifications
AI Functions: Motion Detection, Human Detection | Alarm Type: Phone Alarm, Local Alarm | Angle Adjustment: Pan 0–360°, Tilt 0–180°, Rotate 0–360° | Aperture: F1.6 | Audio Output: Two-Way Audio | Brand: VIKYLIN | Built-in Microphone: Yes | Built-in Speaker: 3W | Certification: CE | Colour: White | Colour Night Vision: Yes | Connectivity: IP/Network Wired | Focal Length: 4mm fixed dual lens | FOV: Horizontal 180°, Vertical 40° | High Definition: 4.0 Megapixels | IP Rating: IP67 | IR Distance: 30m | Image Sensor: 1/2.9” GC2063 CMOS | Installation: Ceiling, Side | Lens: 4mm | Lens Quantity: Dual | Max Resolution: 3840 x 1080 | Megapixels: 4MP | Minimum Illumination: 0.05 Lux (F1.6) | Model Number: PG2046IRCS-P | On-Board Storage: Up to 512GB MicroSD | Operating Temperature: -30°C to 85°C | Power Consumption: Max 10.2W | Power Supply: DC 12V / PoE (802.3af) | Protocols: HTTP, RTSP, DHCP, FTP, NTP, ONVIF, P2P, SMTP, RTMP | Scene: Indoor and Outdoor | Sensor: CMOS | Shell Material: Metal | Style: Bullet Camera | Supported Systems: Android, iOS, Windows XP, Windows 7, macOS, Windows 10 | Video Compression: H.265+, H.265, H.264 | Viewing Angle: 170° | WDR: 120dB | Origin: Mainland China
