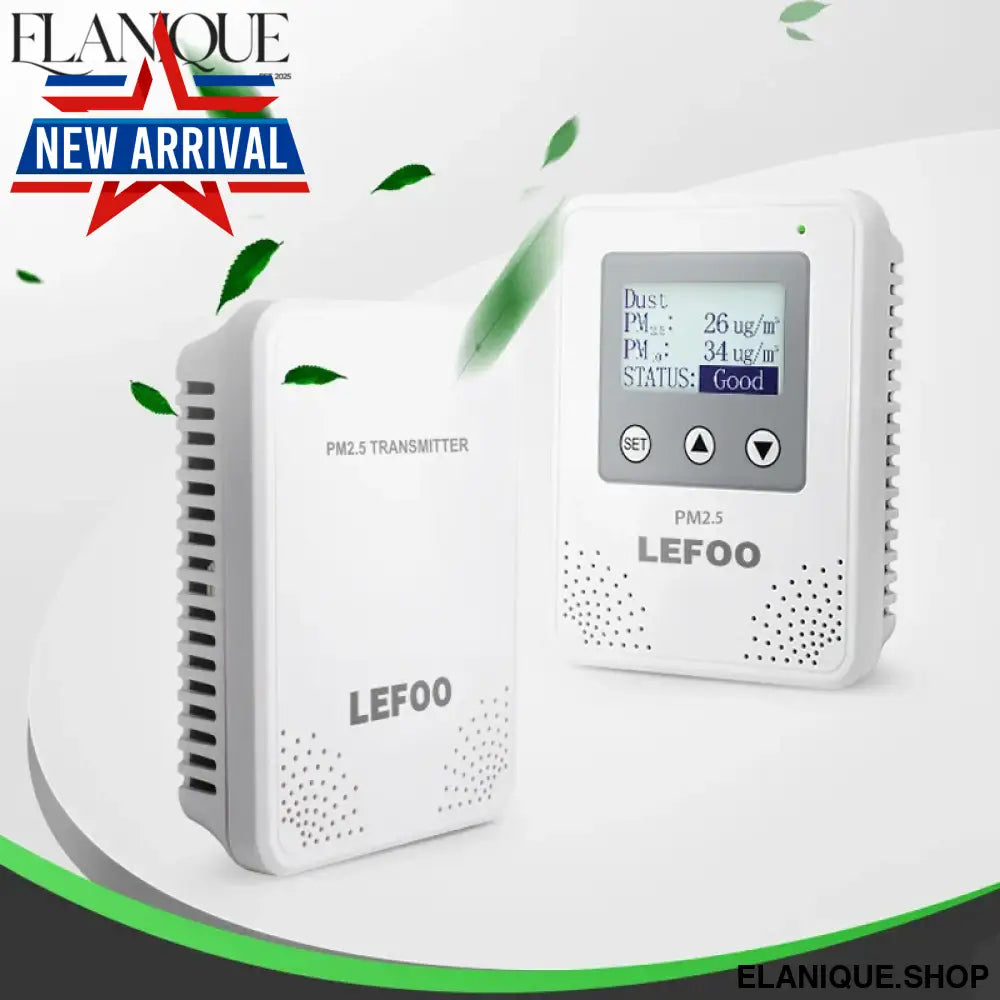

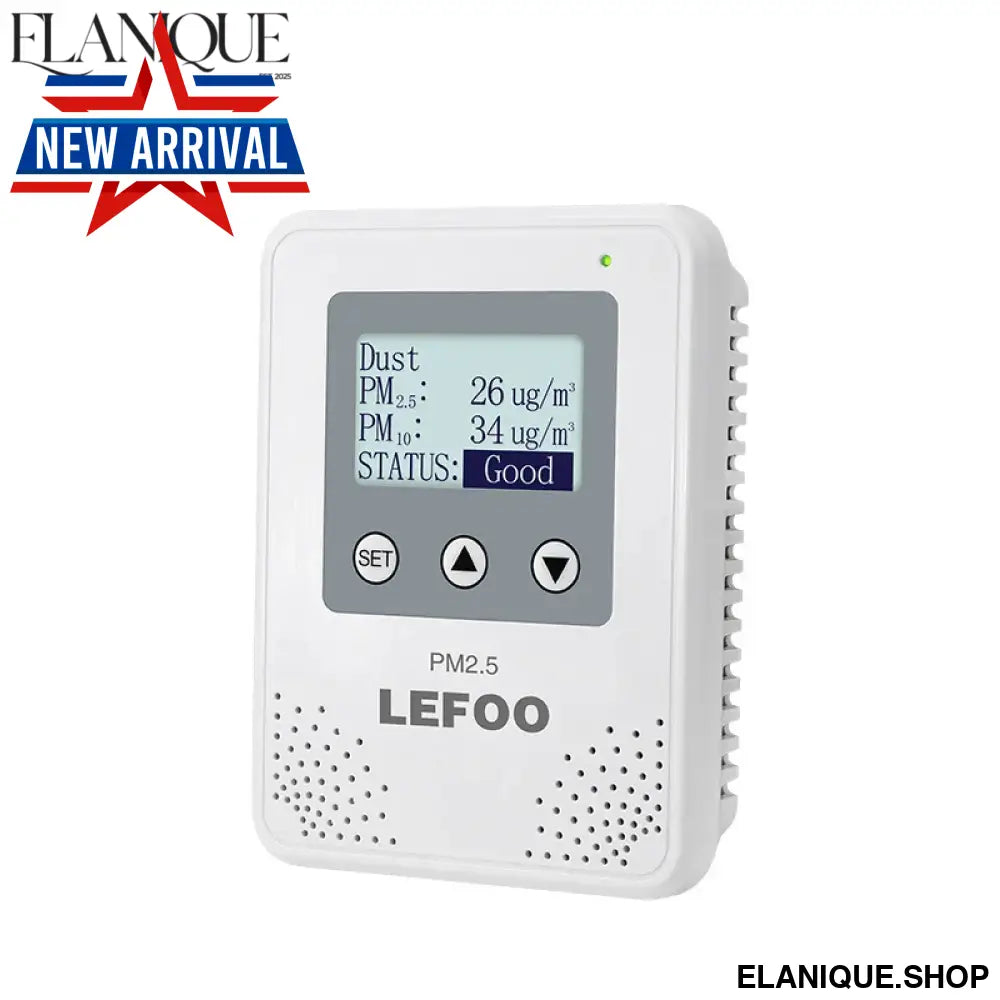

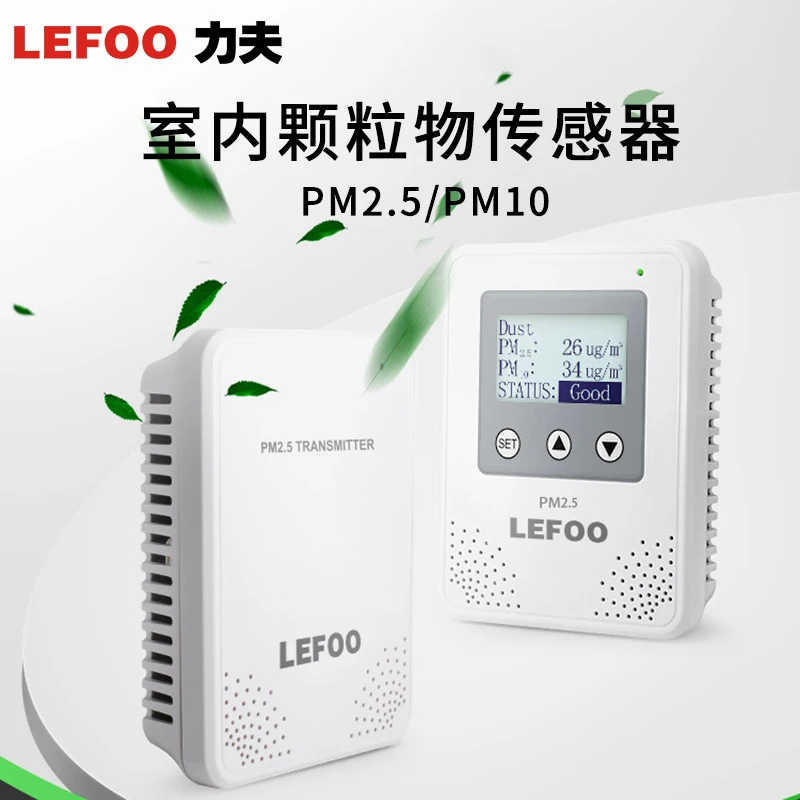

PM2.5/PM10 Sensor Air Quality Monitor with Control High-Precision Air Quality Sensor
14:200021498#LCD PM10
- Free worldwide shipping
- In Stock & Ready to Ship
- In stock, ready to ship
SPECIFICATIONS
Accuracy: PM2.5 10ug/m3 0-100ug/m30percentFS 100-500ug/m3
Battery Included: no
Brand Name: NONE
DIY Supplies: Electrical
High-concerned chemical: None
Is Smart Device: no
Measurement Range: PM2.5: 0-500ug m3, particle size 0.3-2.5um PM10: 0-600 ug m3, particl
Model No.: G303
Model Number: G303
Origin: Mainland China
Output Signal: 4 ~ 20mA/0 ~ 10V; RS485
PCBincluded: Yes
Power Supply: 15 ~ 36V DC / 24VAC+20%
Preheat Time: ≤2min
Product Name: PM2.5/PM10 Sensor Air Quality Monitor with Control High-Precision Air Quality Sensor
Range: PM2.5: 0-500ug/m3, particle size 0.3-2.5um PM10: 0-600 ug/m3, particle size 0.3-10um
Resolution: 1ug/m3
Semi-finishedproduct: Yes
Sensor: Laser dust sensor detects particle sizes 0.3 ~ 10um
With LCD Screen Or Not: Yes
PM2.5/PM10 Sensor Air Quality Monitor with Control High-Precision Air Quality Sensor
Production Description
The NanCon Different Air Qauity Sensor employs a high-precision MEMS sensor with digital pressure acquisition and temperature compensation. It features rapid pressure response, long-term stable output, and superior temperature performance. Capable of detecting positive pressure, negative pressure, or differential pressure, it is extensively employed for monitoring air or inert gases. Suitable applications include HVAC systems, energy management systems, VAV and fan control, environmental pollution control, static piping, cleanroom pressure monitoring, operating theatres, clean laboratories, fume cupboard control, oven pressurisation, and furnace ventilation control.
Detailed Images
Specifications
PM2.5/PM10 Sensor Air Quality Monitor with Control High-Precision Air Quality Sensor | |
Model No. |
G303 |
Sensor |
Laser dust sensor detects particle sizes 0.3 ~ 10um |
Lifetime |
>3 Year |
Range |
PM2.5: 0–500 μg/m³, particle size 0.3–2.5μm PM10: 0–600 μg/m³, particle size 0.3–10μm |
Accuracy |
PM2.5:+10ug/m3@0~100ug/m3,+10%FS@100~500ug/m3,@25℃ |
Resolution |
1ug/m3 |
Preheat Time |
≤2min |
Response Time |
Single response time in continuous measurement mode <1S, overall response time <10S |
Power Supply |
15 ~ 36V DC / 24VAC+20% |
Output Signal |
4 ~ 20mA/0 ~ 10V; RS485 |
Relay |
1×SPDT 3A/30VDC 3A/250VAC |
Working Ambient |
Temp.: 0 ~ 50℃; Humidity: 0 ~ 95%RH(No Condensing) |
Storage Temp. |
Temp.: -20 ~ 60℃; Humidity: 0 ~ 95%RH(No Condensing) |
Protection Class |
IP30 |
Materials |
PC |

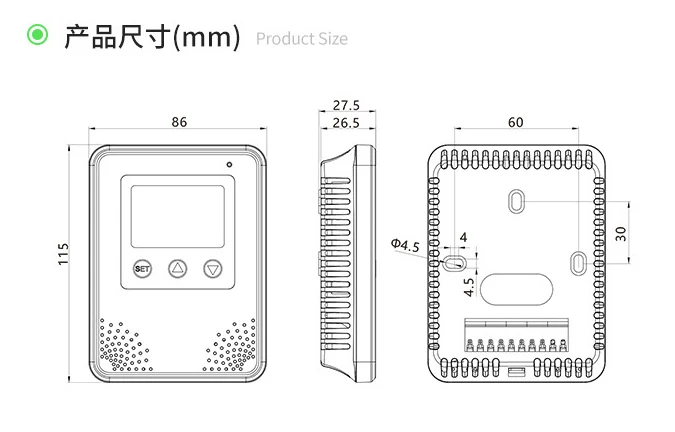

Dimension
Features
* Features an imported micro-pressure sensor core for highly responsive pressure detection

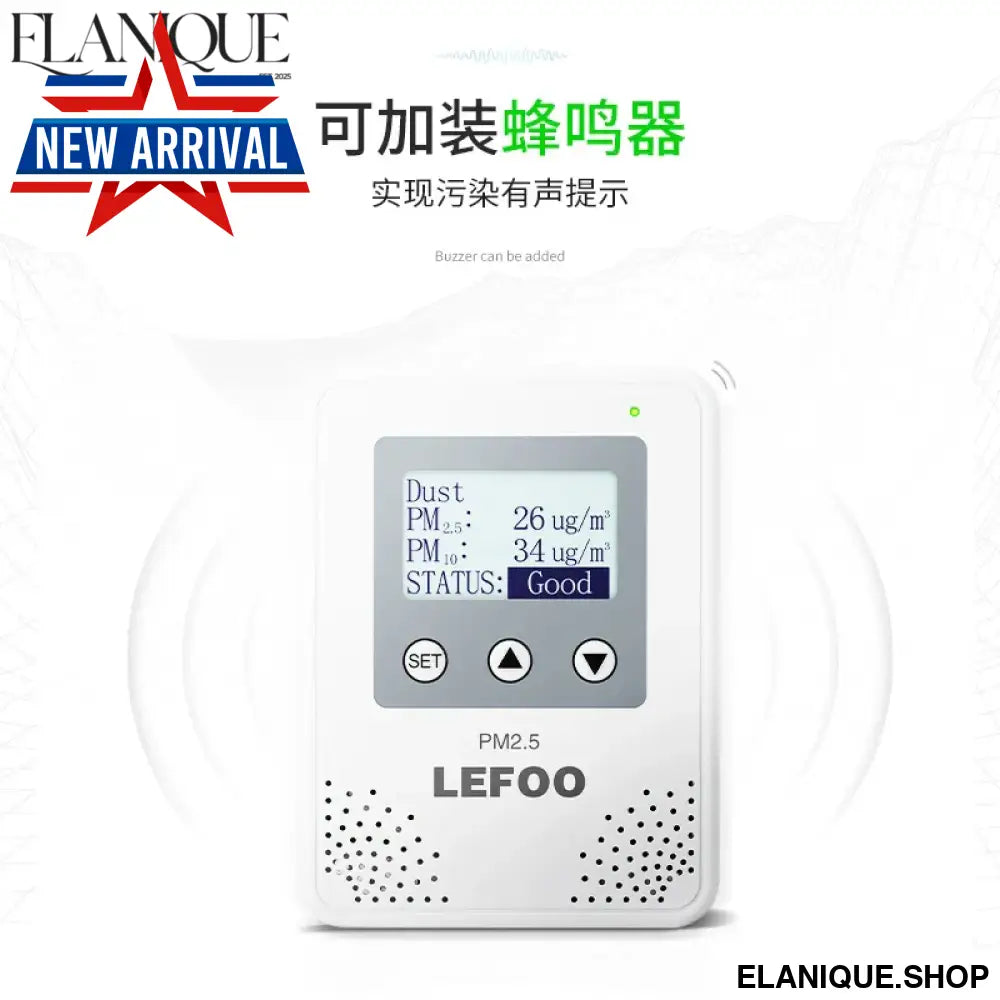

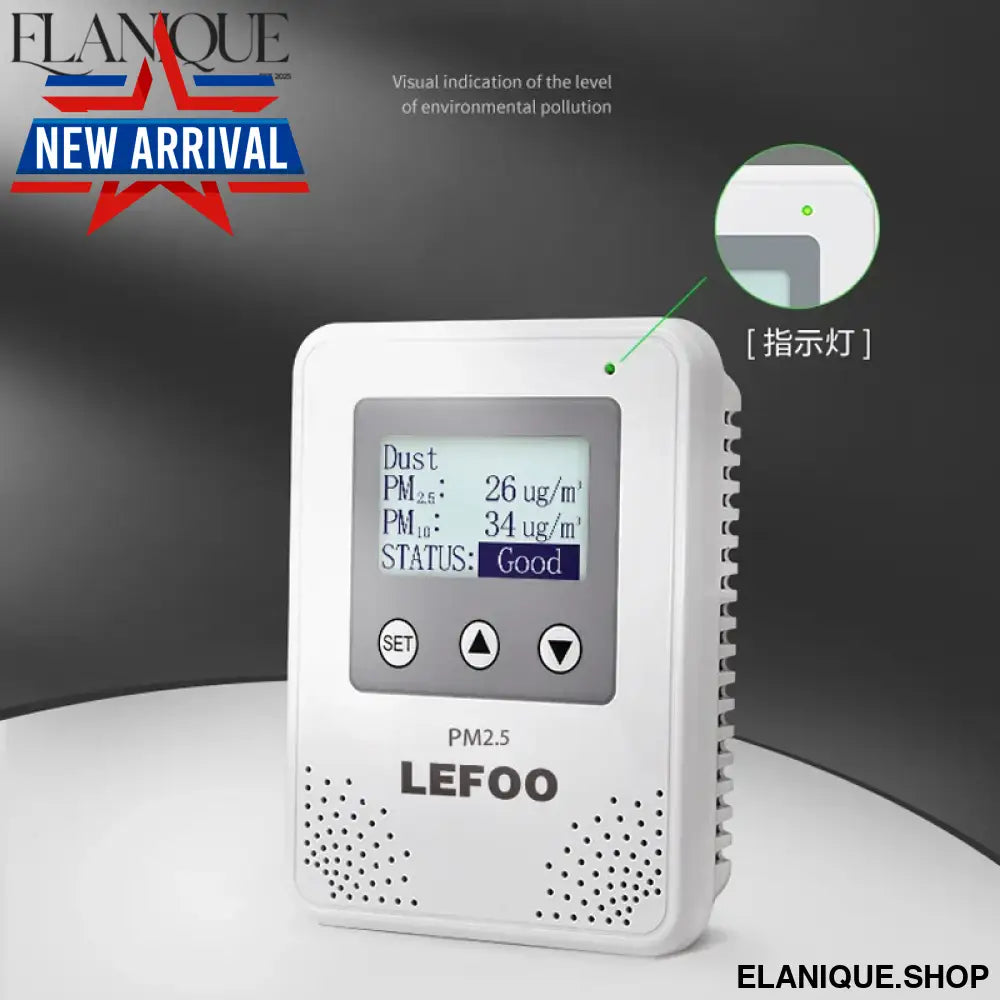

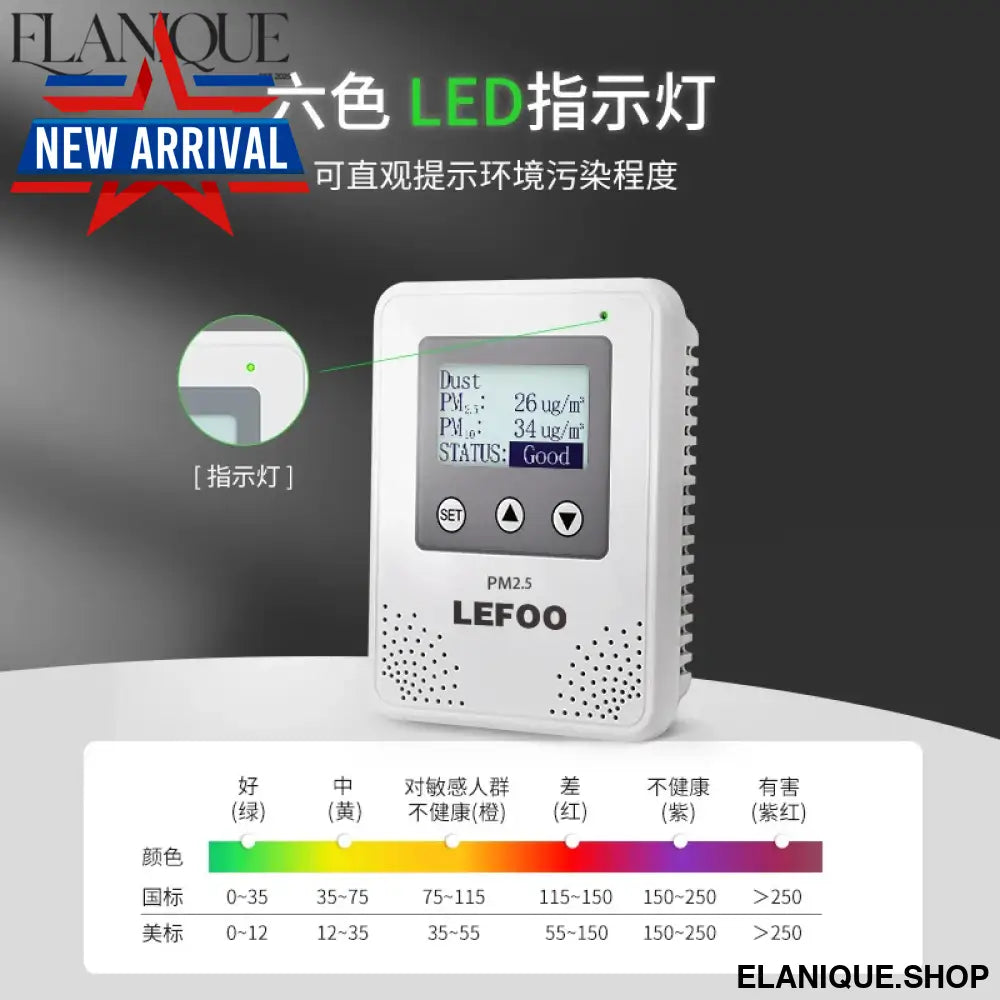

* Clear LCD digital display
* Digital pressure acquisition with temperature compensation
* Exceptional stability and extended service life
Application
Widely employed in energy management systems, heating, Commercial Building, Commercail Mansion, Warehouse Storage, Surveillance Equipment, Monitoring Equipment, Cleanroom Control Suventilation and air conditioning (HVAC), variable air volume (VAV) and fan control, environmental pollution control, static ducting and cleanroom pressure regulation, smoke volume control, oven pressurisation, and boiler ventilation control.
Related Products
FAQ
Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q: How do you control your quality?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have?
A: ISO9000, CE, Explosion-proof certification, RoHS ready. And before the delivery of goods, quality and safety inspection certification issued by third parts also can be offered.
Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
