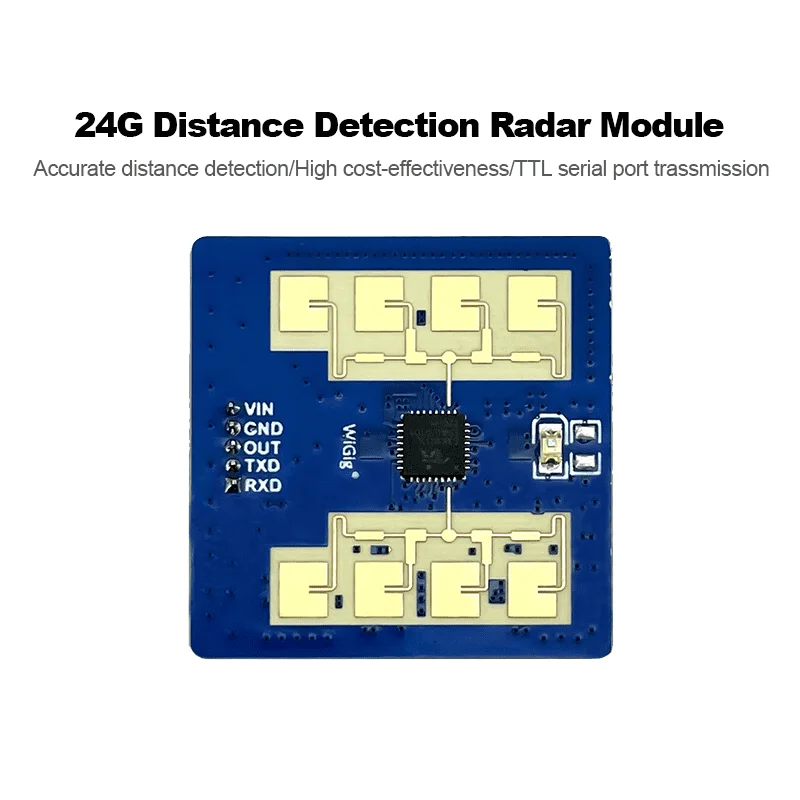

Hi-Link 24Ghz HLK-LD2411S Low Consumption Intelligent Sensor Human Body Sensing Radar Module Sensitivity smart light LD2411S
14:771#1PCS;200000828:201335940#HLK-LD2411S Module;200007763:201336100
- Free worldwide shipping
- In Stock & Ready to Ship
- In stock, ready to ship
SPECIFICATIONS
Brand Name: bibikoo
Camera Equipped: No
Certification: CE,FCC,RoHS
Communication method: Other
Compatibility: All Compatible
Connect way: plug-in
Detect distance: 5M
Detection angle: ±60°
Frequency Range: 24GHz
High-concerned chemical: None
Input voltage: 5-12V
Model Number: HLK-LD2411S
Origin: Mainland China
Ports: Support GPIO and UART
Size: 20mmx20mm
Specification: EU Plug
State of Assembly: Ready-to-Go
Workign mode: FMCW Frequency Modulated Continuous Wave
For this application, please refer to the following :
Function: The light lights up with people, and the light lights up with people's footsteps. For example, if the distance between the human body and the module is 3 meters, all lights within 0-3 meters will be on; After leaving for a period of time, all the lights turn off.
Power supply: LED light with 24V power supply, module 5V power supply

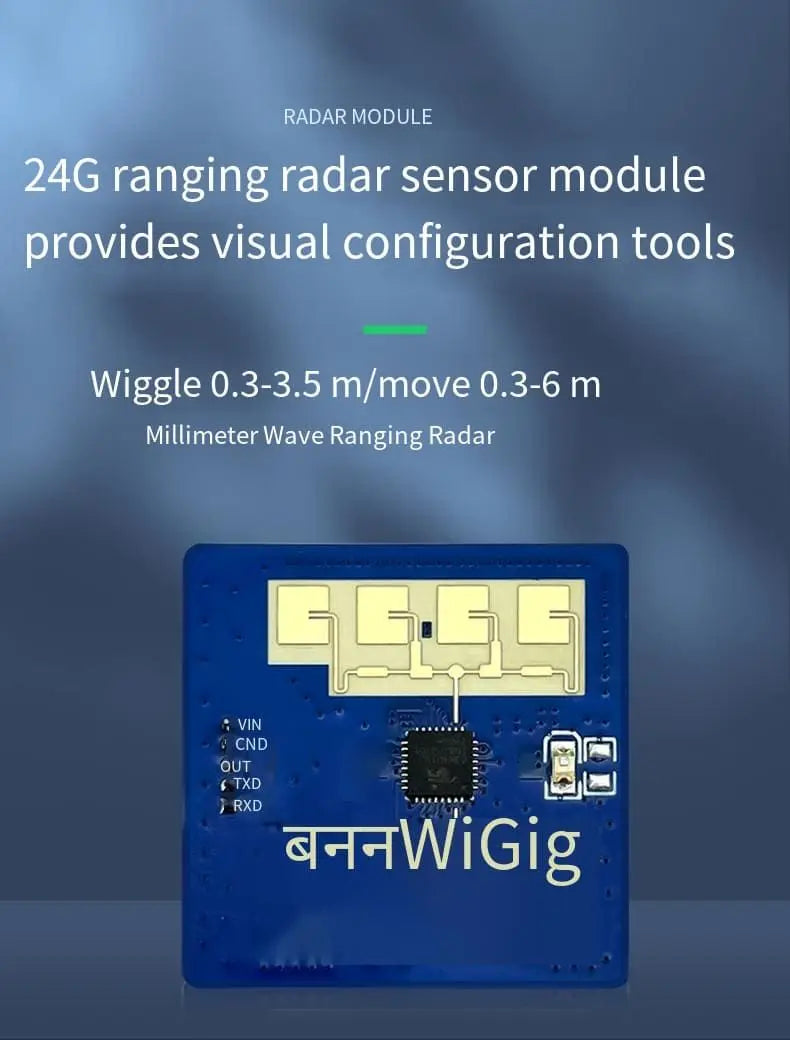

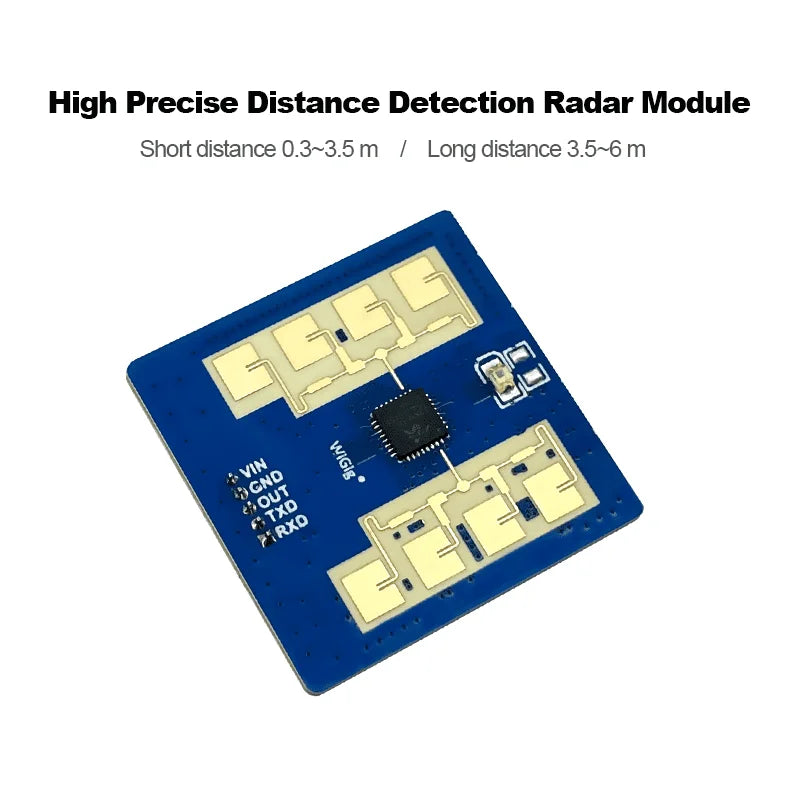

Control range: The maximum distance for human body sensing is 6m, and the maximum distance for micro motion human body sensing is 3.5m

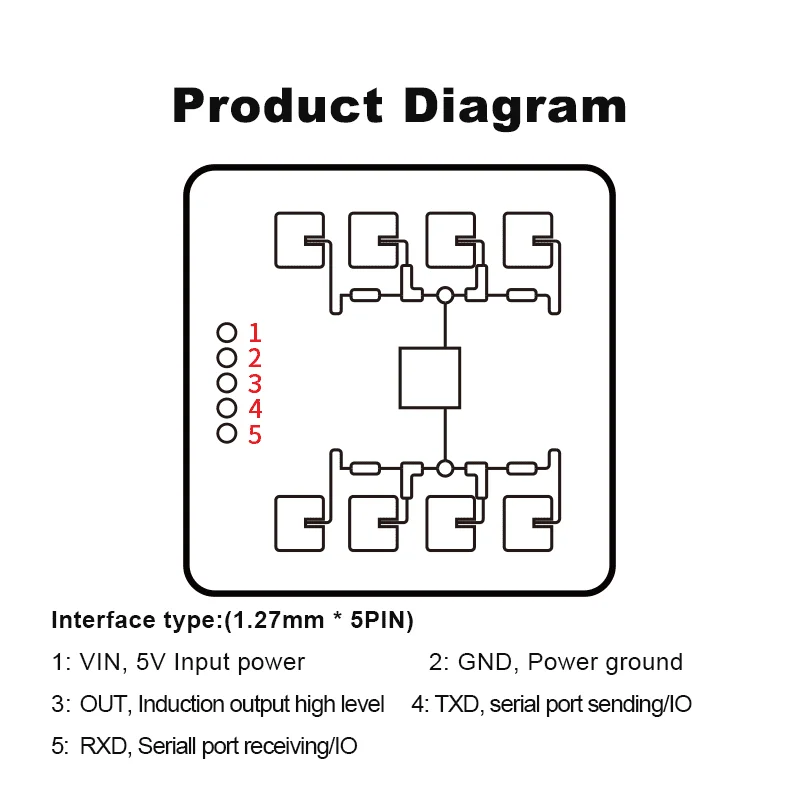

Schematic diagram of LD2411S pin
Tools: LD2411S radar module, L06 module, LED light strip, 2W DCDC power module
Principle: Using the L06 module as the main control, the distance between the human body and the module is output through LD2411S to control the lighting on and off.

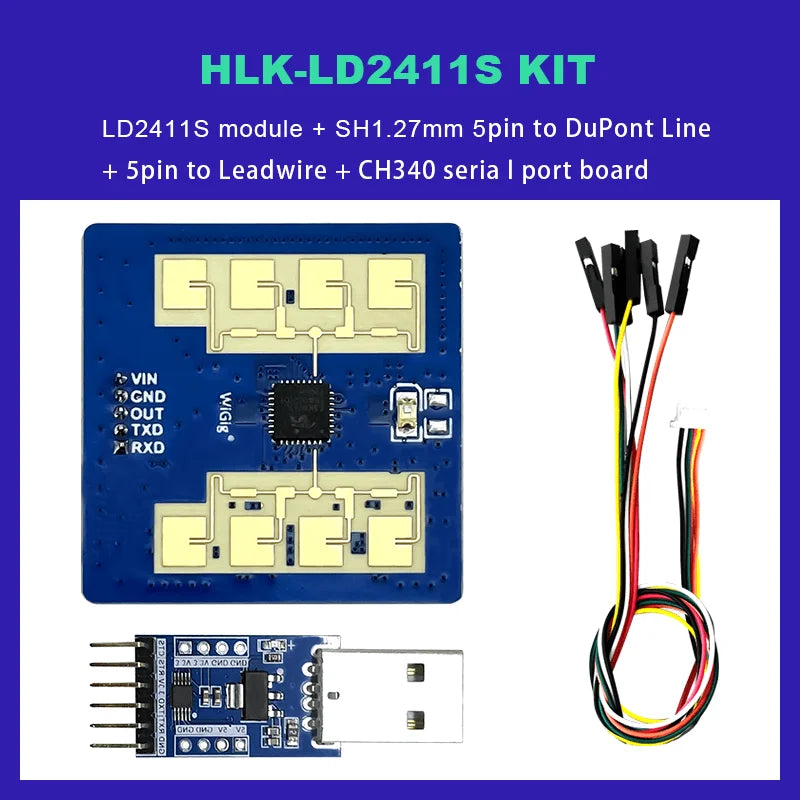

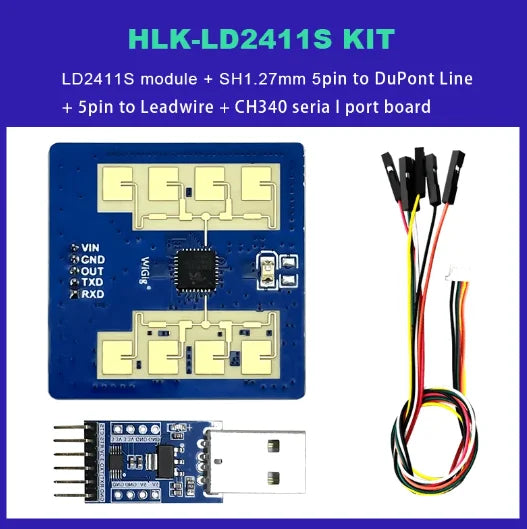

Please take the test board when you first time to purchase the sample, which can help you to test the sensor module more convinent.
Product Description

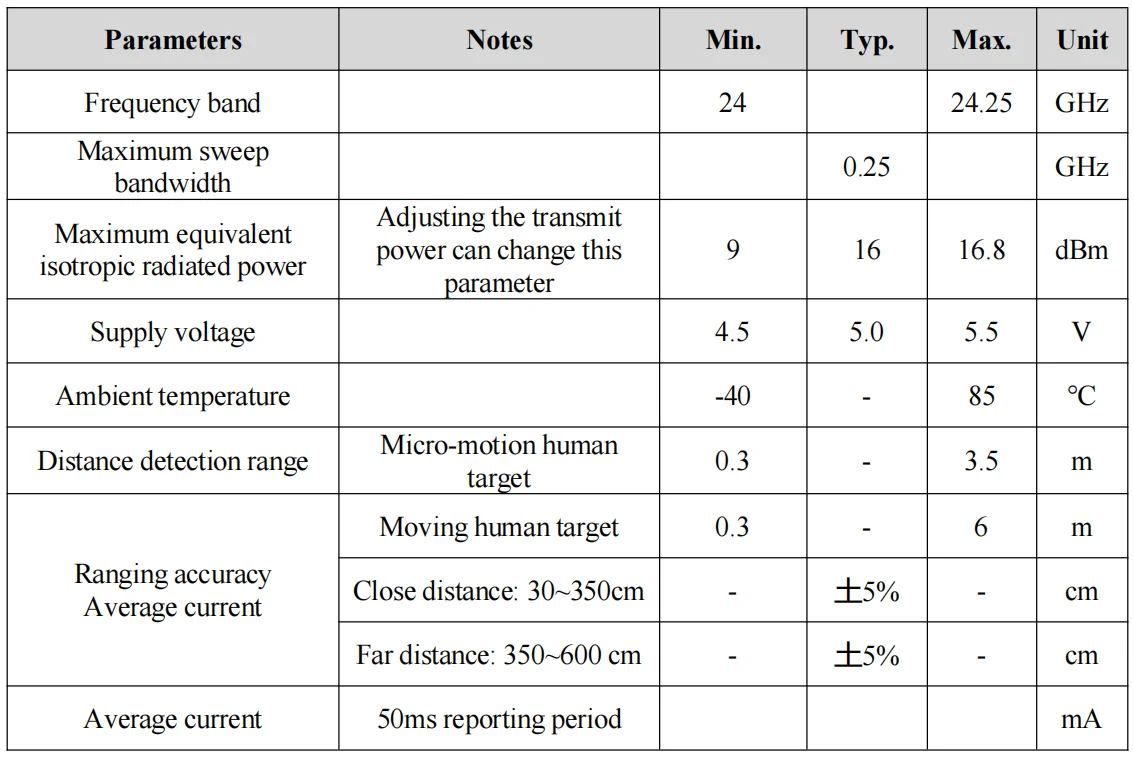

Product parameters
Application
* Human body sensor light control
It senses whether there is someone in the space, and automatically controls lights, such as lighting equipment in public places, various sensor lights, bulb lights, etc.
* Human body induction wake-up of advertising screen and other equipment
Automatically turn on when people come, and automatically sleep when no one comes to save power, information delivery is more accurate and efficient
* Life safety protection
UV lamp work protection, to prevent the UV lamp from being turned on when there are people around and causing personal injury
Automatic detection and alarm of dangerous places to prevent people from entering specific high-risk spaces, such as high-risk places entered by personnel from coal mine blasting
* Smart home appliances
When there is no one in the room for a long time, the TV, air conditioner and other electrical appliances are automatically turned off, saving energy and safety
* Intelligent security
Detection and identification of people intruding, staying, etc. within the specified range
