HappyModel ES24TX Pro 1000mW 2.4G ExpressLRS ELRS Micro TX Module with Cooling Fan RGB LED Module for RC Airplane FPV Drone
- Free worldwide shipping
- In Stock & Ready to Ship
- Low stock - 2 items left
SPECIFICATIONS
Brand Name: KWINGFPV
Choice: yes
For Vehicle Type: Helicopters
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: HappyModel ES24TX Pro
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Module
Recommend Age: 14+y
Remote Control Peripherals/Devices: RECEIVERS
Size: AS SHOW
Technical parameters: KV1100
Upgrade Parts/Accessories: Module
Use: Vehicles & Remote Control Toys
Wheelbase: Upper Shell
HappyModel ES24TX Pro 1000mW 2.4G ExpressLRS ELRS Micro TX Module with Cooling Fan RGB LED Module for RC Airplane FPV Drone

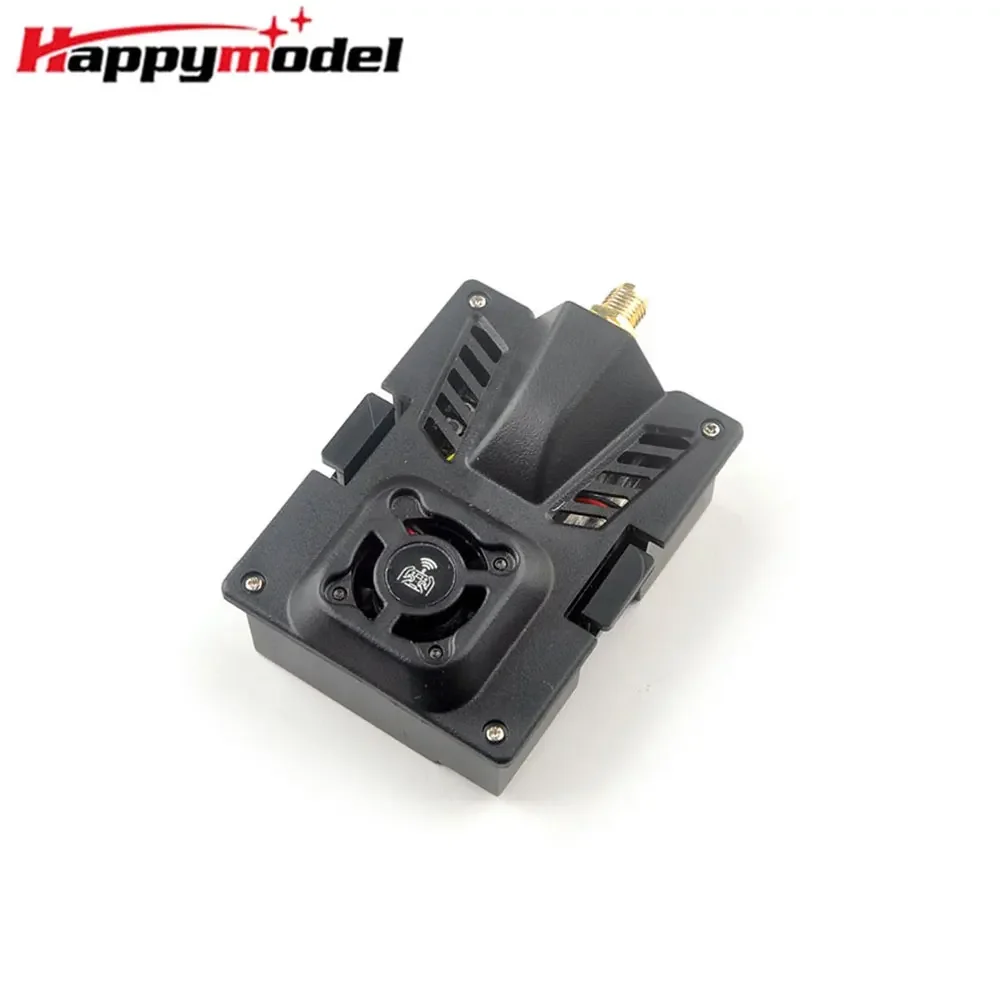

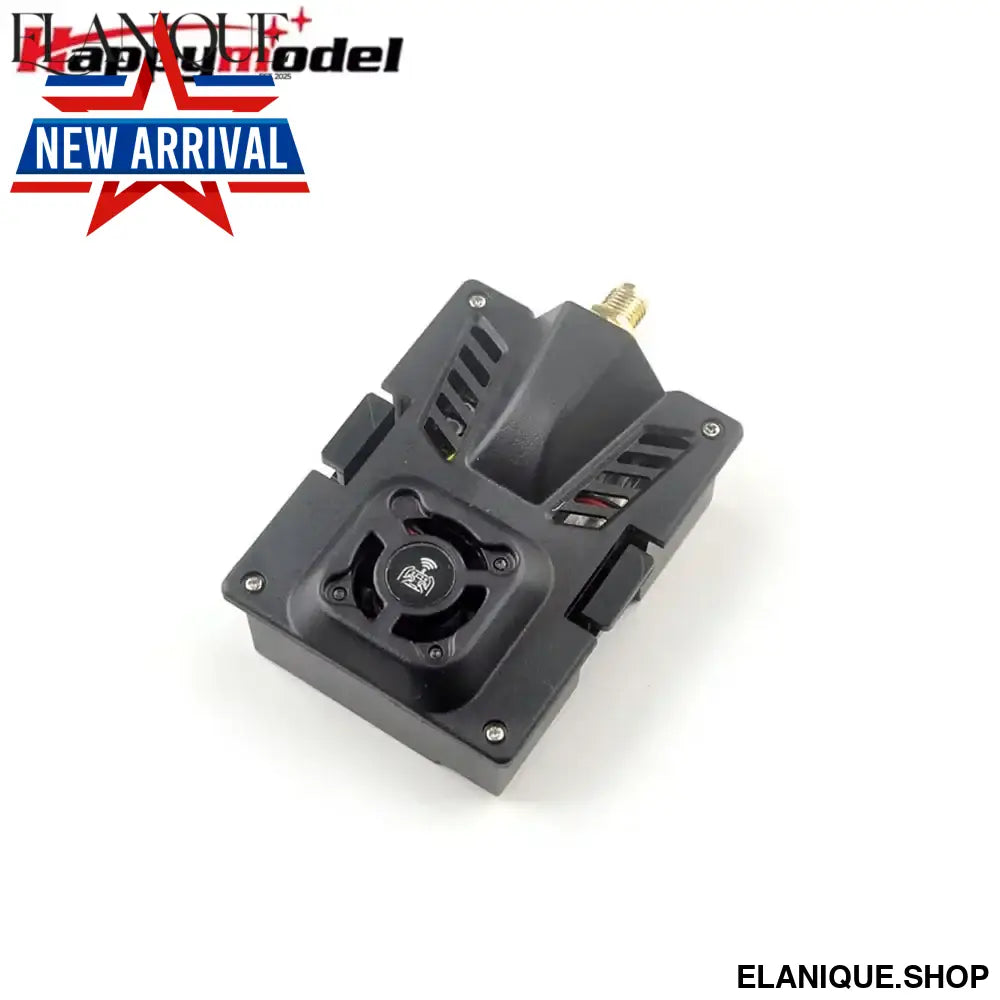

The ES24TX Pro Micro ExpressLRS TX module is a upgrade version of ES24TX module.

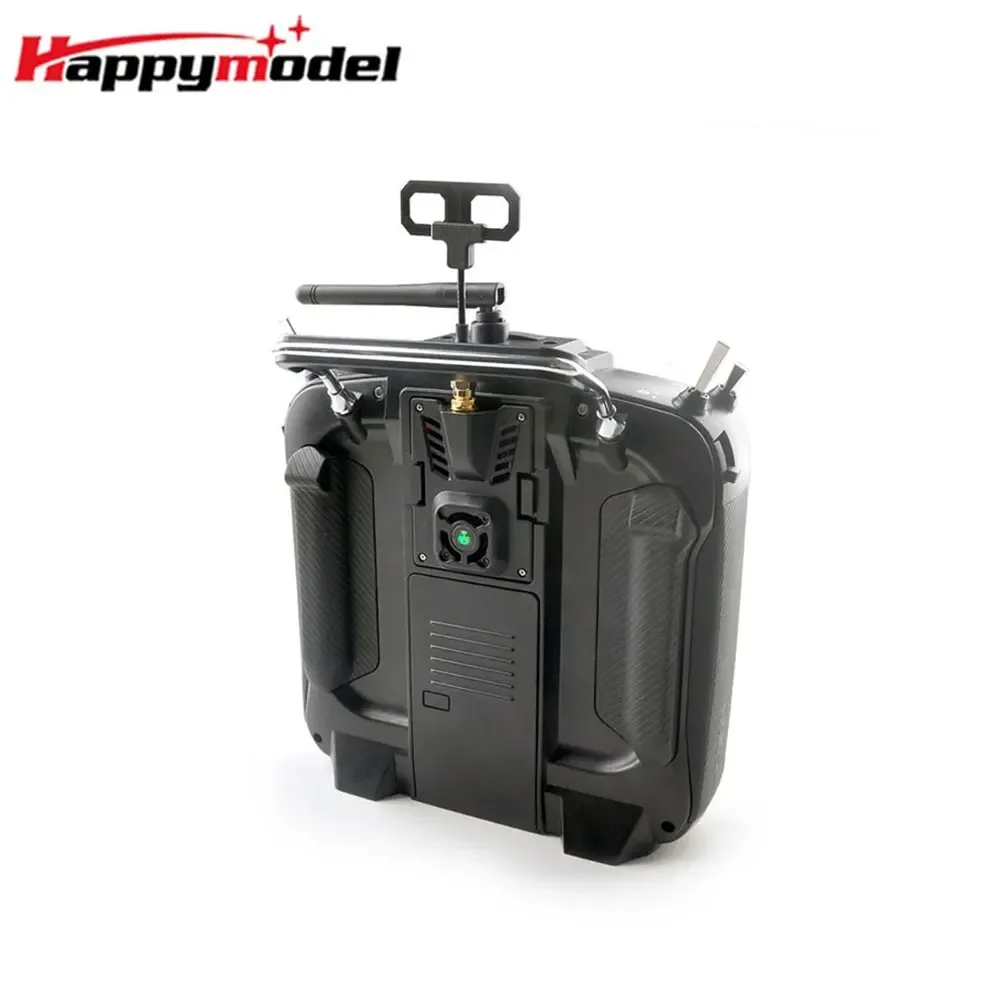

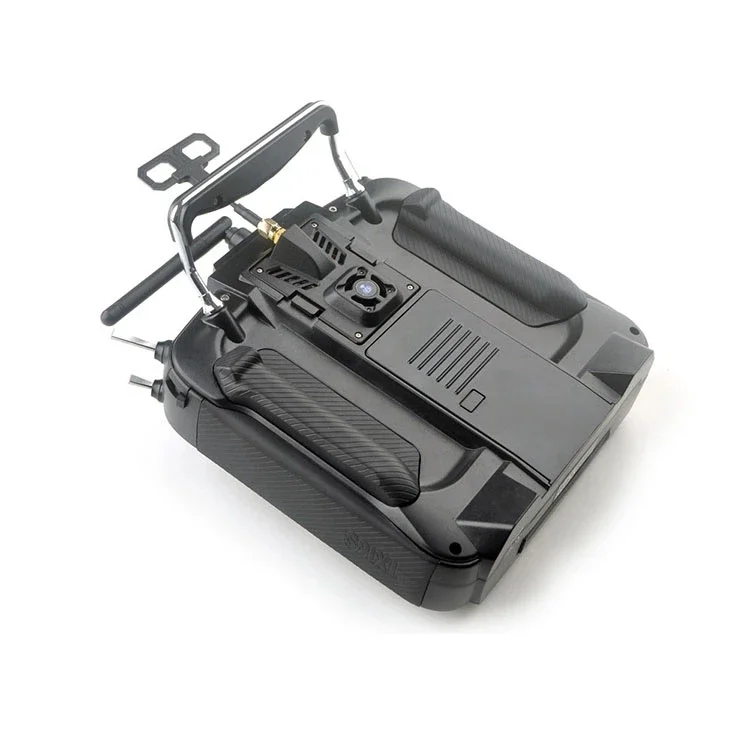

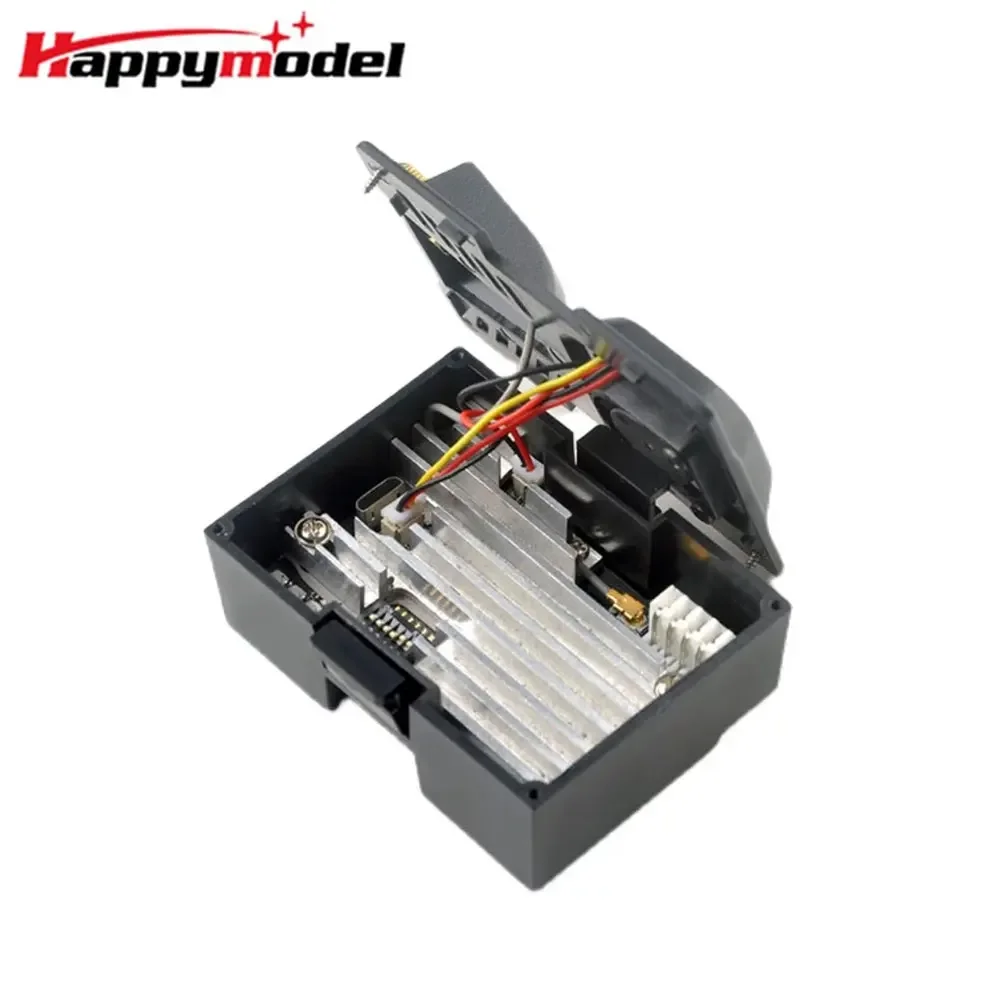

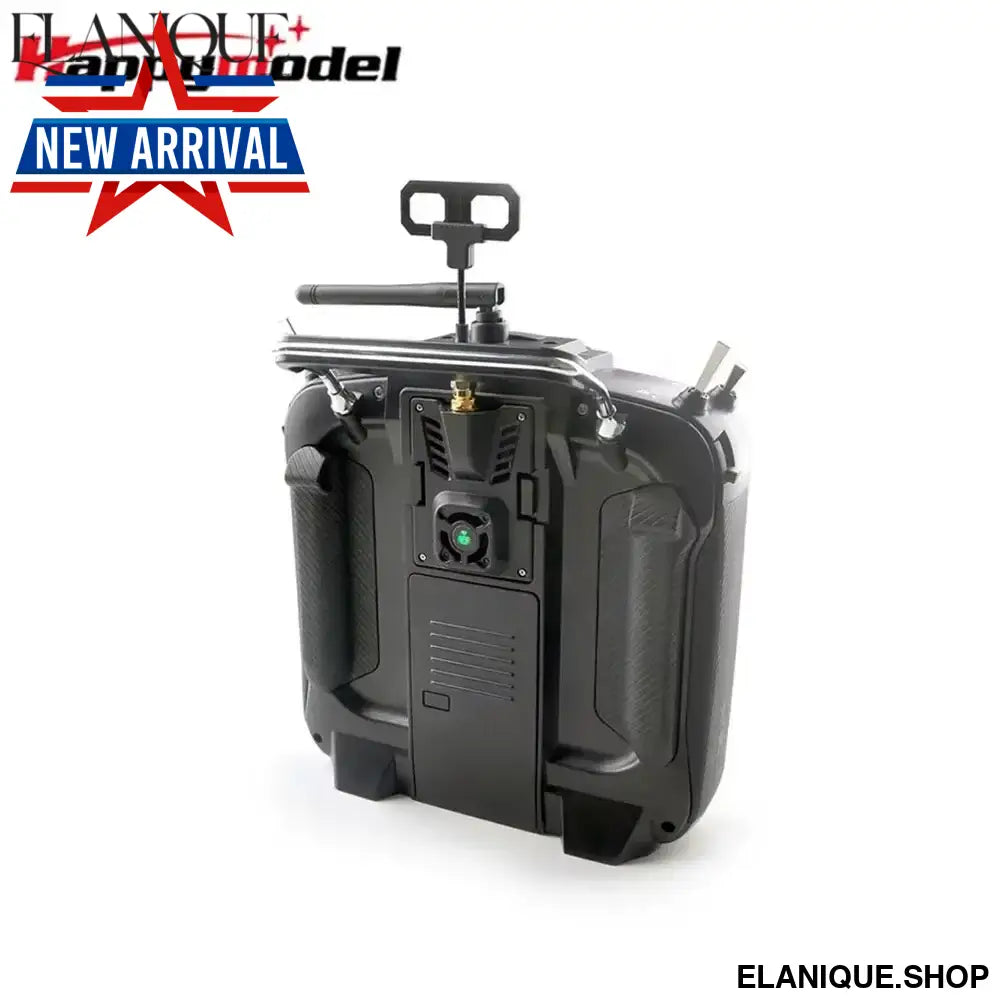

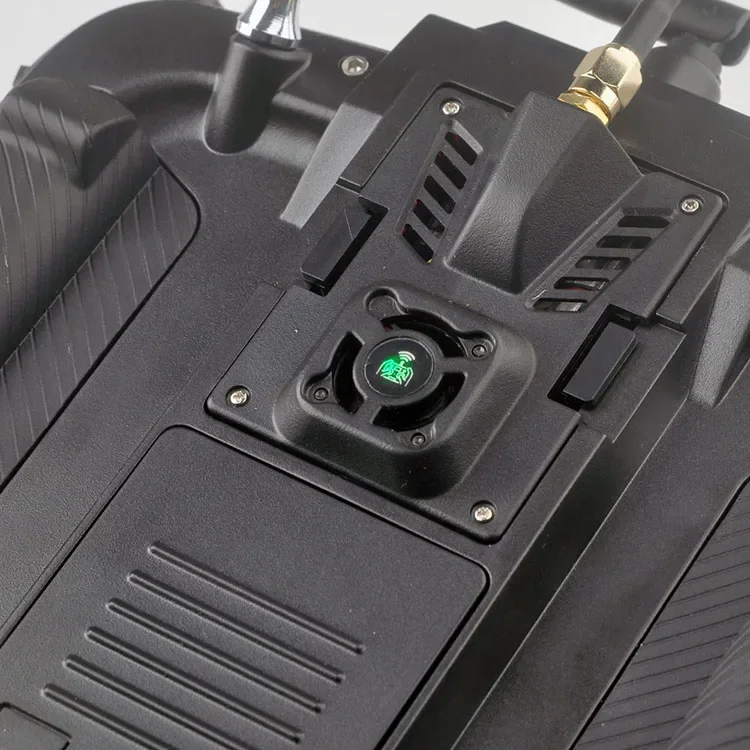

Max output up to 1000mw, reserved Cooling Fan and RGB LED module. This Micro TX module support most of the OpenTX radio transmitter that with Micro JR bay. And this time the ES24TX Pro module comes completely assembled before out of factory.
Specifications:
Regulatory Domain: ISM2400
MCU:ESP32(main),ESP8285(aux,as espbackpack)
RF chip: SX1281IMLTRT
JR standard 5pin socket
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
RF Output Power: >30dBm
Power supply voltage: 5v~10v
Weight: 51gram(without antenna)
Dimension: 70mm*49mm*32.5mm
Antenna gain: 4.18dBi
Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX

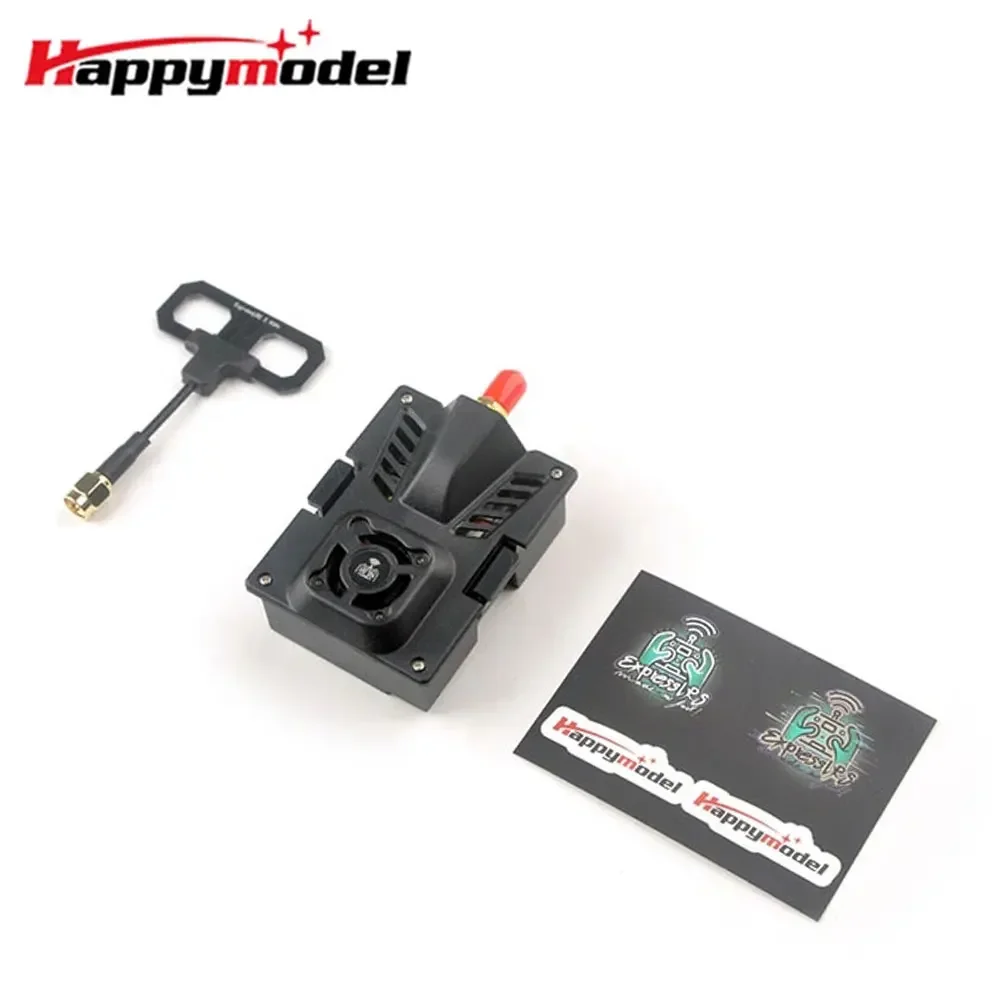

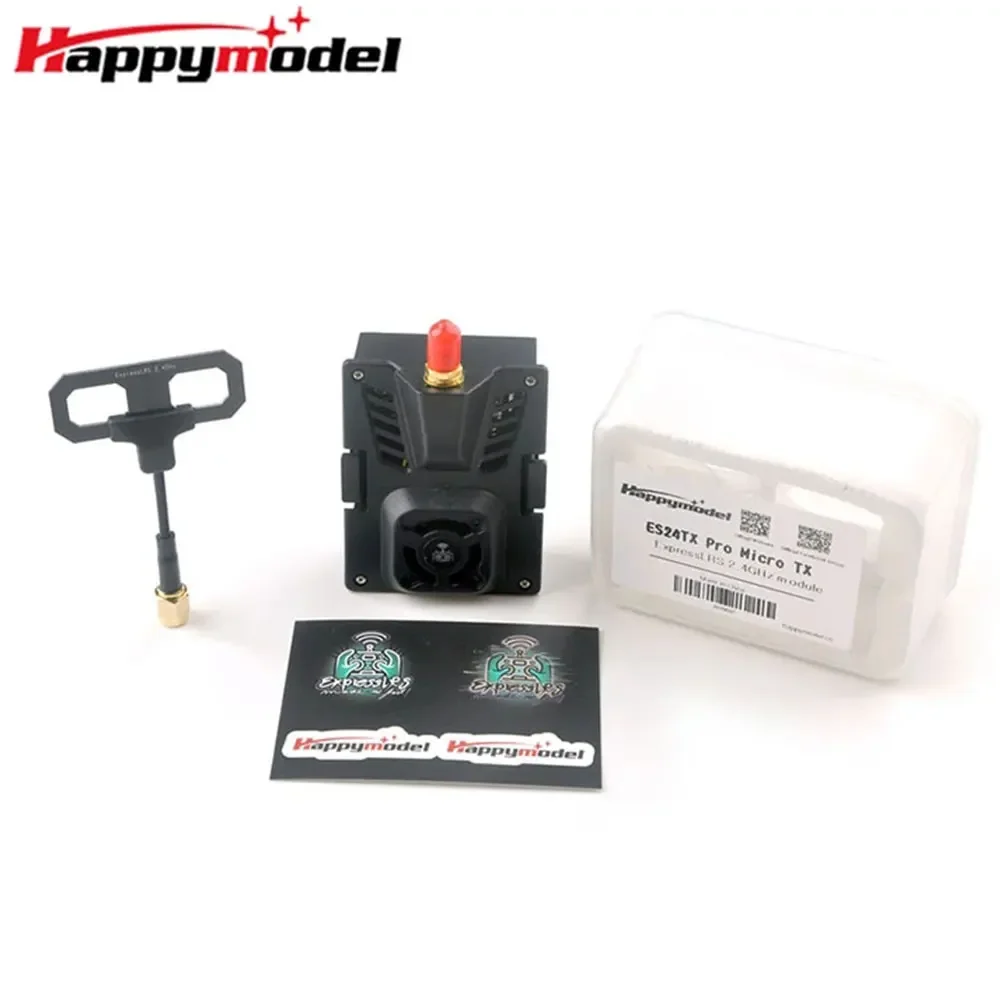

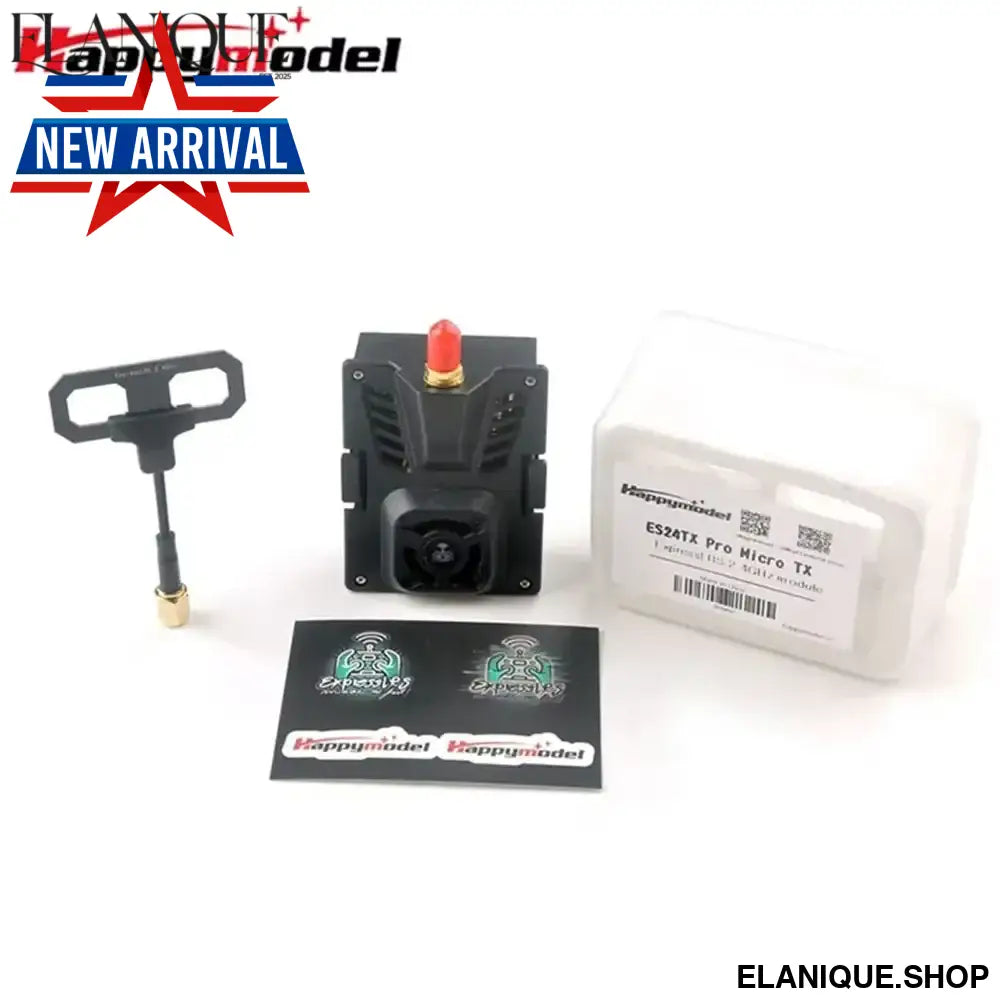

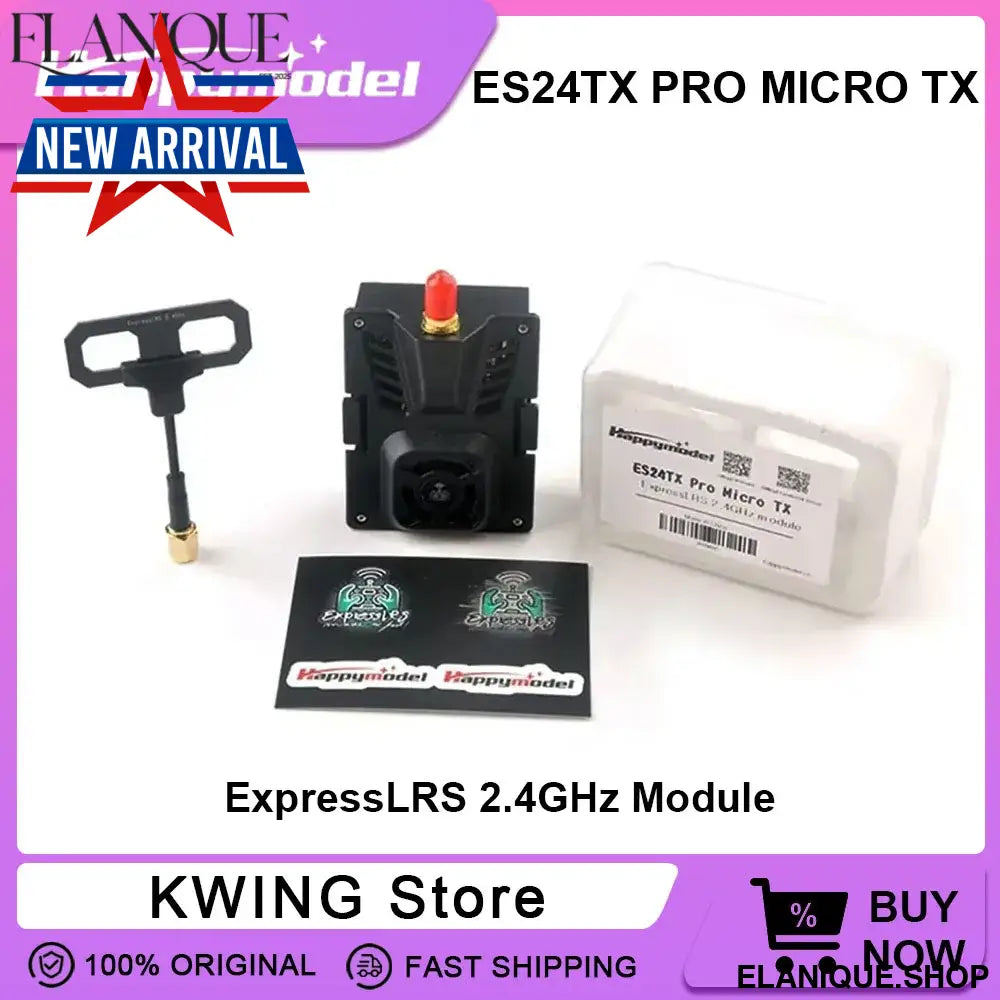

Package include:
ES24TX Pro *1
Happymodel 2.4GHz Moxon antenna *1
