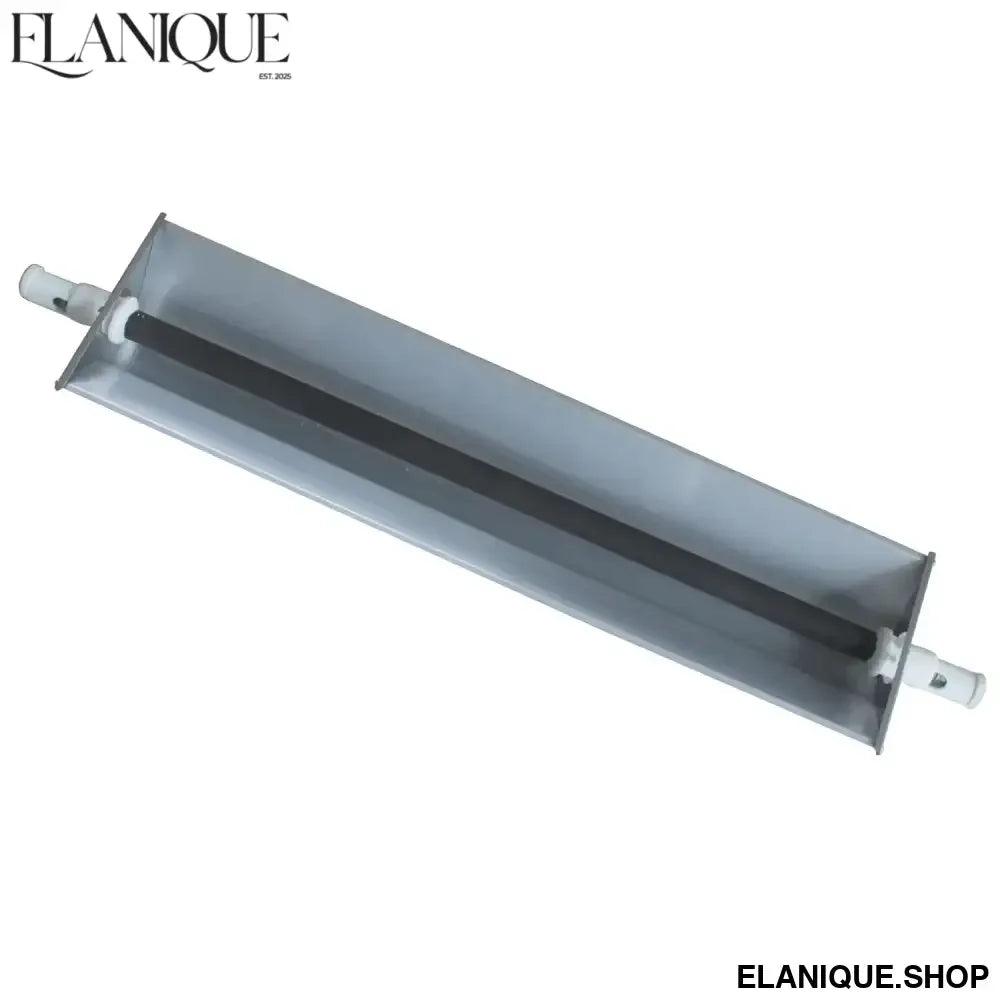

Far Infrared Sauna Heater Tube – Vertical Ceramic Heating Element 300–600mm

A Failing Heater Tube Is Silently Degrading Your Sauna Experience

The heating element is the heart of any far infrared sauna. It is the component that converts electrical energy into the infrared radiation that penetrates the body’s tissues, raises core temperature, promotes perspiration, and delivers the detoxification and relaxation benefits that make infrared sauna therapy so effective. When a heating tube begins to fail — losing output, developing hot spots, or failing entirely — the sauna continues to operate, but the therapeutic benefit diminishes progressively. Most users notice the decline as a gradual reduction in the intensity of the session, a longer time to reach operating temperature, or an uneven heat distribution that leaves some areas of the body less effectively treated than others.

The Far Infrared Sauna Heater Tube is a professional-grade replacement heating element designed for vertical installation in far infrared sauna cabins. CE certified and compatible with both 110V and 220V electrical systems, it is the reliable, high-quality replacement that restores your sauna to full therapeutic performance — available in four lengths and multiple wattage options to match the specific requirements of your sauna installation.

Far Infrared Technology: Why the Heating Element Matters

Far infrared radiation operates at wavelengths between 5.6 and 1000 micrometres — the range that is most efficiently absorbed by the human body. Unlike conventional sauna heat, which warms the air around the body and relies on convection to transfer heat to the skin, far infrared radiation penetrates directly into the body’s tissues, raising core temperature from the inside out. This direct penetration is what makes far infrared sauna therapy more efficient than conventional sauna at lower ambient temperatures — the body absorbs the infrared energy directly, rather than waiting for the surrounding air to heat it.

The quality of the heating element determines the quality of the infrared output. A high-quality ceramic tube produces consistent, even infrared radiation across its full length, ensuring uniform heat distribution throughout the sauna cabin. A degraded or low-quality tube produces uneven output, creating hot spots and cold zones that reduce the therapeutic effectiveness of the session.

Vertical Installation Design

These heater tubes are designed for vertical installation — the standard configuration in most far infrared sauna cabins, where the tubes are mounted vertically on the cabin walls to provide even heat distribution from floor to ceiling. The 18mm tube diameter and 2mm shell thickness are standard specifications that ensure compatibility with most sauna installations. The tubes are rated for 110V/220V operation, making them compatible with both UK/European and North American electrical systems.

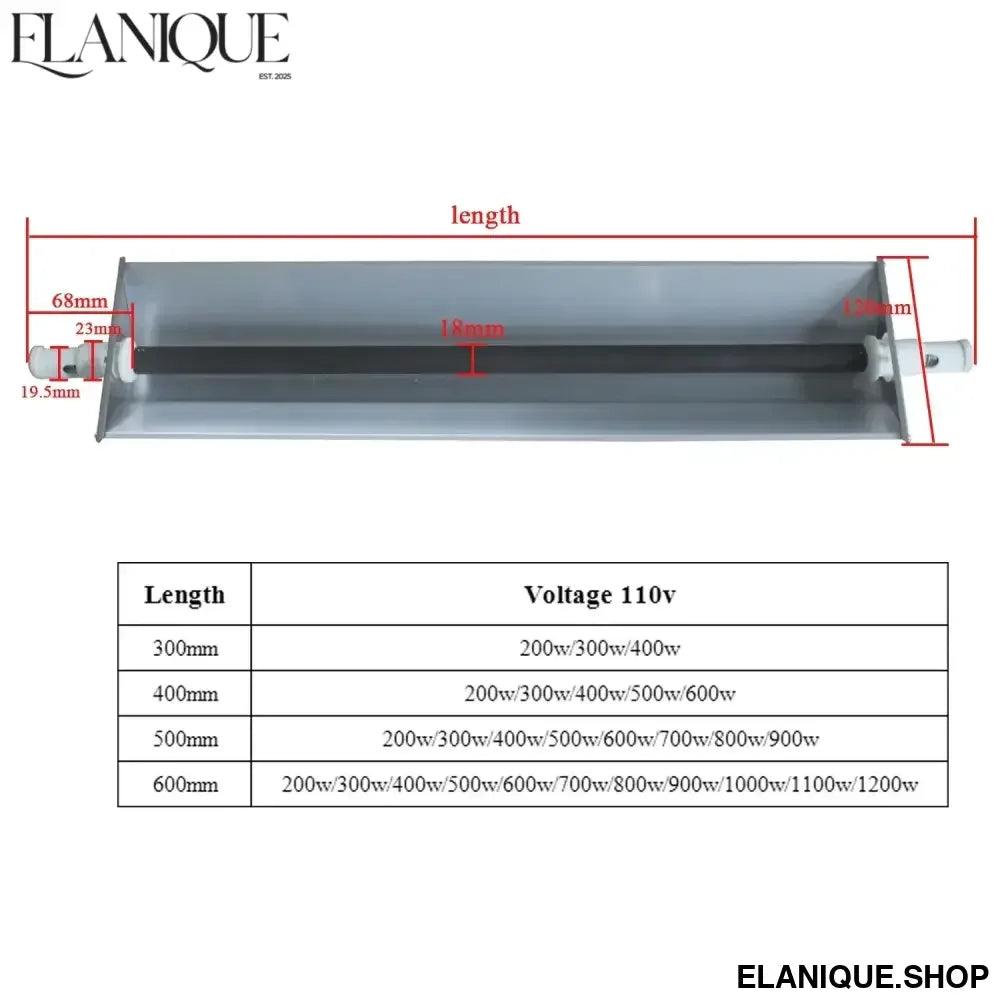

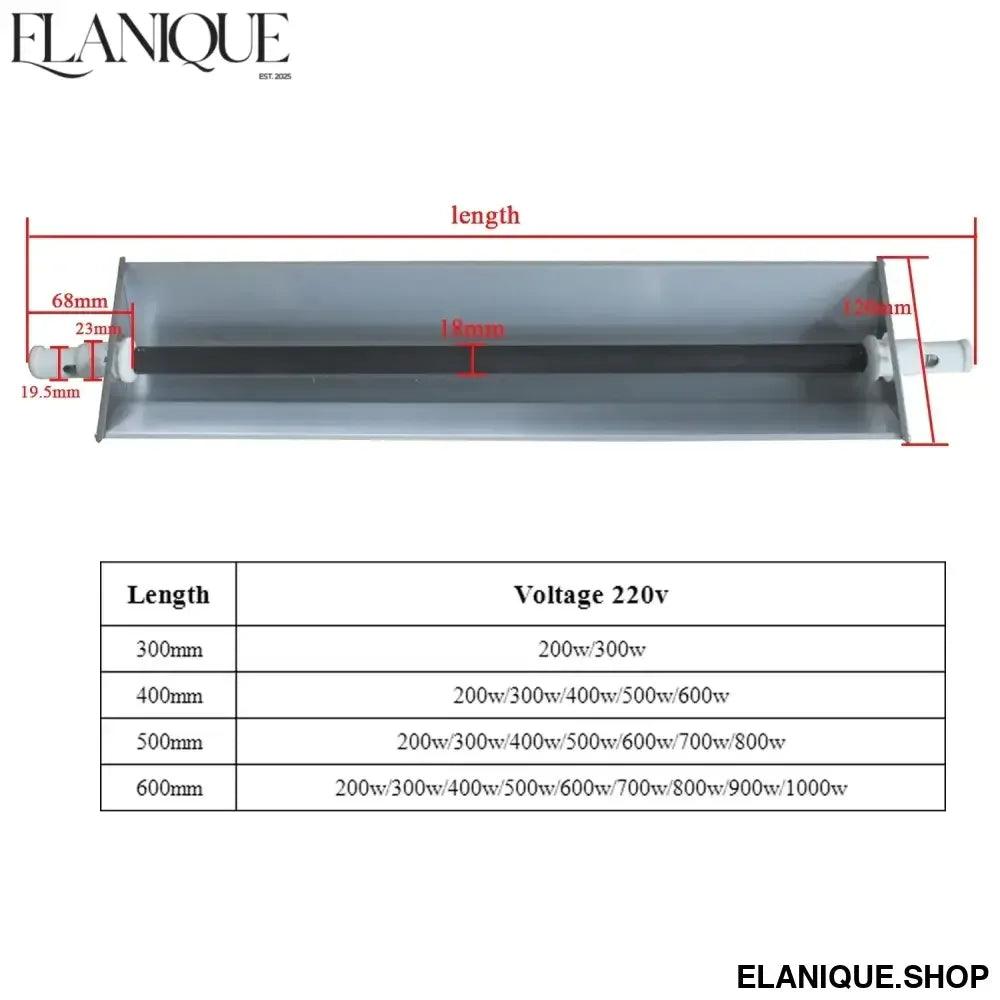

Available Lengths and Wattages

Available in 300mm, 400mm, 500mm, and 600mm lengths, with wattage options ranging from 200W to 900W depending on the length. Multiple quantity options (1–4 pieces) allow you to replace individual tubes or complete sets as required by your sauna installation.

Specifications

• Type: Far Infrared Sauna Heater Tube (Vertical Installation)
• Tube Diameter: 18mm
• Shell Thickness: 2mm
• Voltage: 110V / 220V
• Available Lengths: 300mm, 400mm, 500mm, 600mm
• Available Wattages: 200W–900W (varies by length)
• Available Quantities: 1, 2, 3, or 4 pieces
• Certification: CE
• Installation: Vertical only
• Origin: Mainland China
