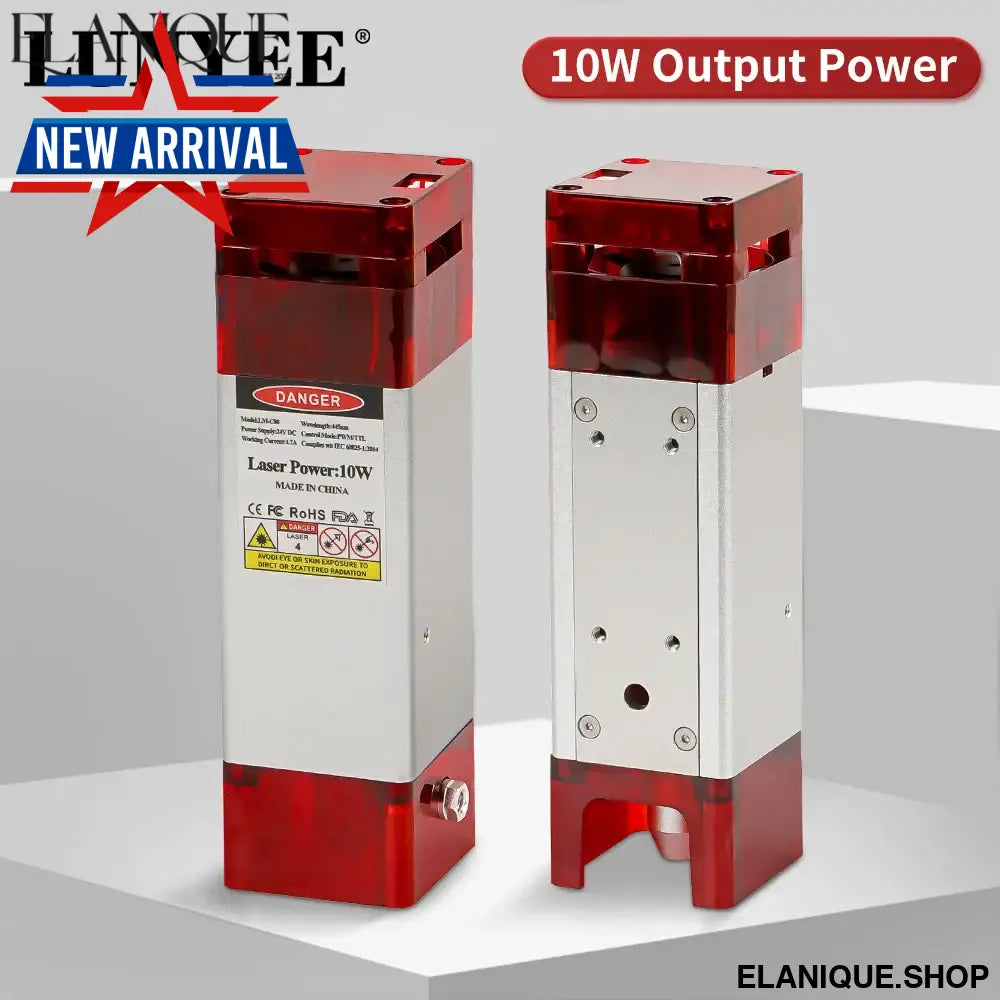

80W Laser Module with Air Assist 10W Laser Engraving Head 450nm Blue Laser Head TTL Module for CNC Laser Cutting Machine Tools
14:95561678#5.5W;200007763:201336100;35:353309
- Free worldwide shipping
- In Stock & Ready to Ship
- In stock, ready to ship
SPECIFICATIONS
Brand Name: LUNYEE
Certification: CE
Effect Laser Power: 80W
Feature: With air assist
High-concerned chemical: None
Input Port: XH2.54-3P socket
Material: Aluminum alloy + plastic
Model Number: 80W Laser
Modulation: 5V TTL/PWM
Operating Current: 3.8A (12V), 1.7A(24V)
Operating Voltage: 12V / 24V
Origin: Mainland China
Output Optical Power: 10W
Wavelength: 450nm

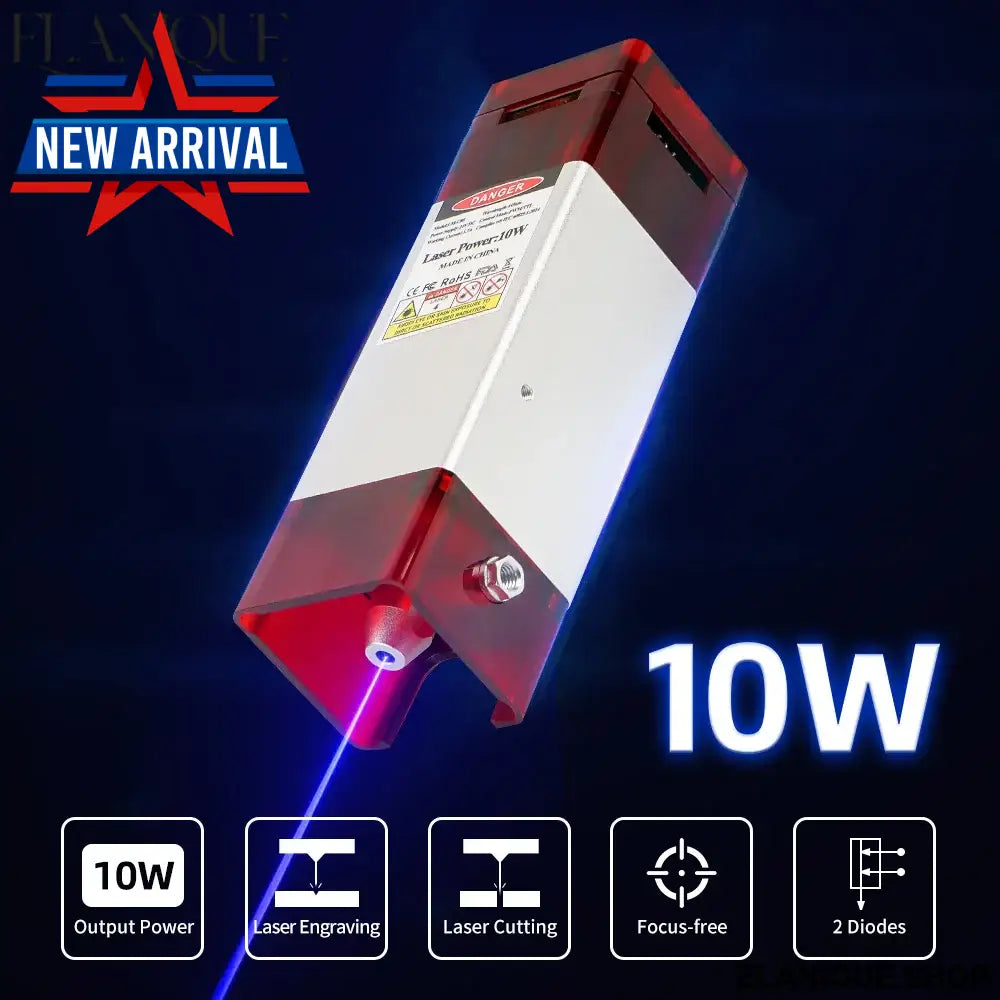

Blue laser module---a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.

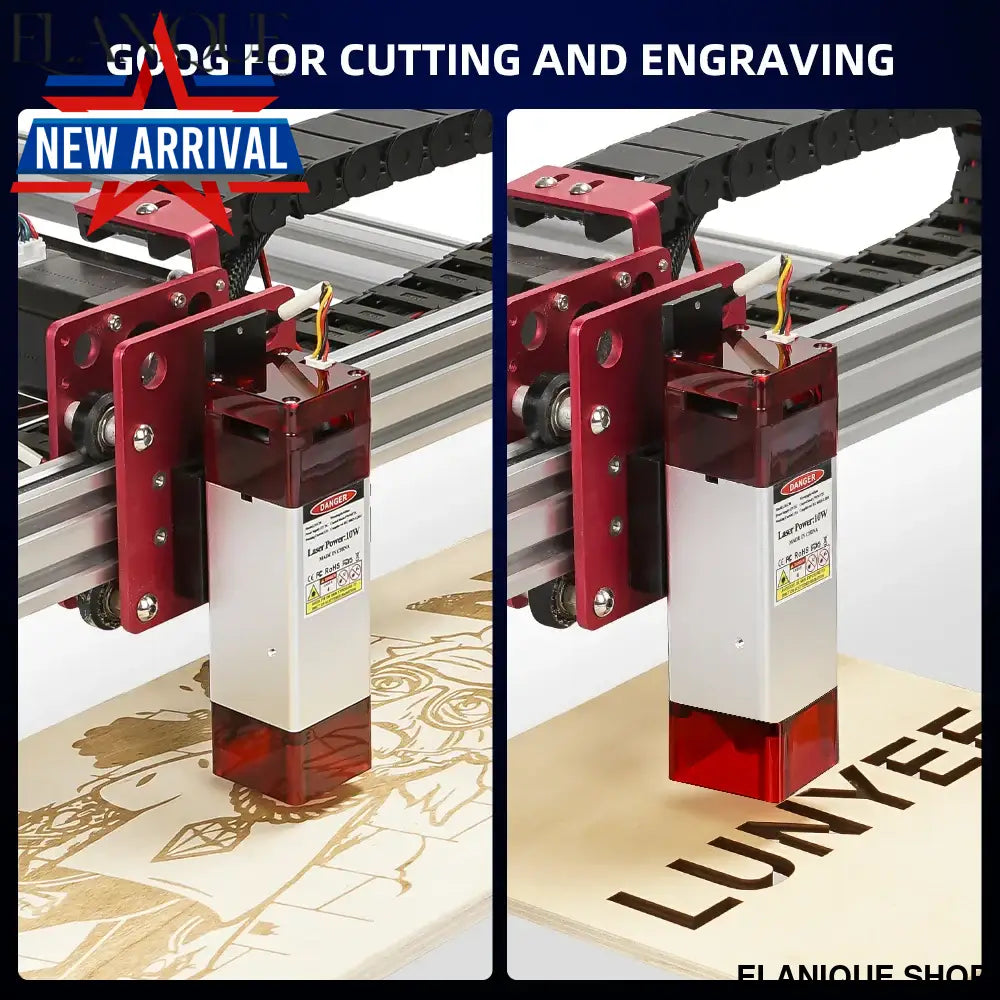

Fixed focus laser head, suitable for three-axis engraving machine, easy to install.
Easy to assemble---small, compact, convenient and easy to install.
Advantage 1:

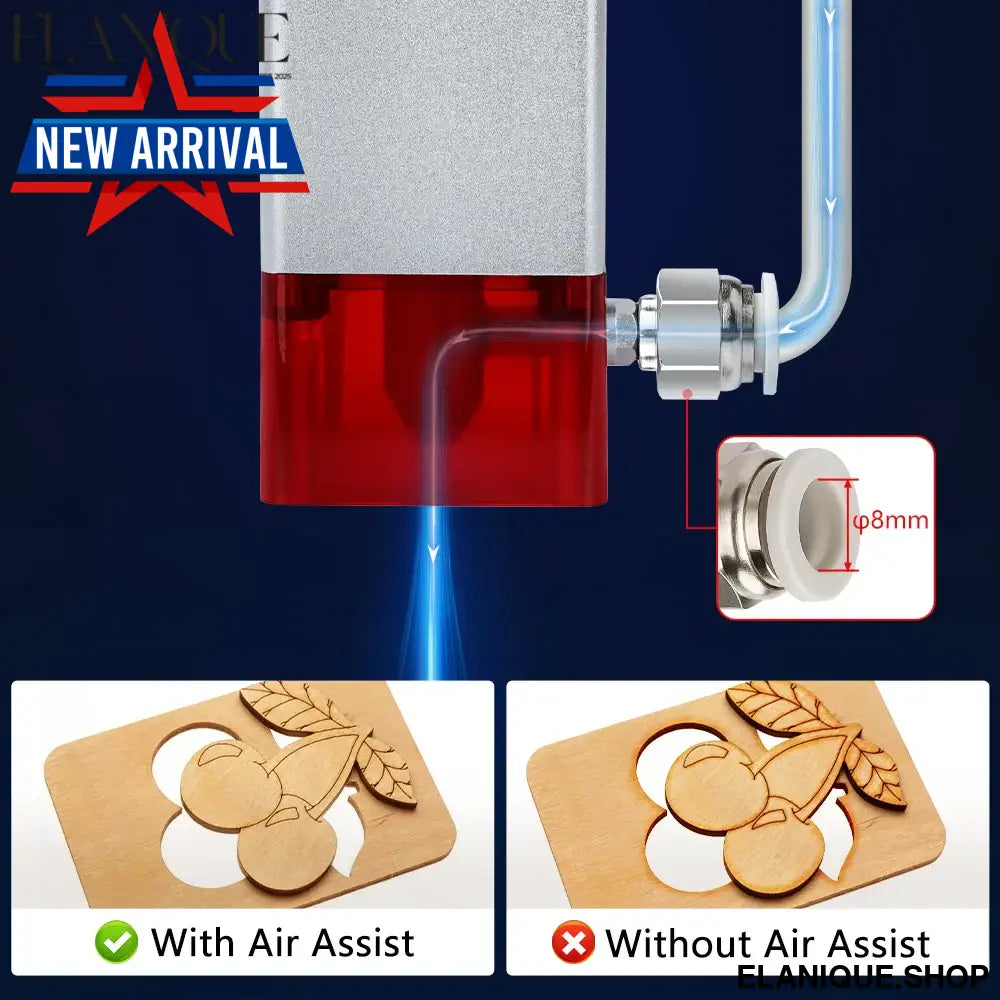

Air assist system: When performing laser cutting jobs, an air assist system blows air through the air nozzle, enhancing the cutting performance and reducing the burn marks. You can remove the air assist nozzle when you are doing non-cutter jobs.This laser kit only comes with an air assist nozzle, to make full use of the air assist feature, you may need to prepare an air assist pump and air tubing yourself.
Recommended Air Tubing:diameterΦ8mm
Advantage 2:
Laser protective cover: It can effectively filter blue light and can work without wearing goggles.
[Main performance]
a.Directly engrave mirror stainless steel: no need painting black;
b. Super fast engraving speed: 304 stainless steel;
c. Remarkable cutting ability: cutting through 8mm thickness plywood
[Original diode]
Original diode, high quality,20,000 hours lifetime!
[Easy to use]
Wavelength: 450nm, Input: DC 12V 3.2A ,Support 5V PWM modulation, I.Suitable for DIY engraving machine.
[Applicable materials]
Ceramics,Bone,MDF,Coated glass,Black acrylic,Plywood,Brushed stainless steel, Stone, Bamboo, Leather, Rubber,Alumina,Solid wood, etc.
[Precautions]
Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.
Laser Wavelength: 445nm (blue viole)
Laser Power: 80W/40W
Optical Power Output：10W/5.5W
Drive mode: External ACC constant current drive
Cooling Method: Forced air cooling
Operating Voltage: 12/24V DC
Shell Material: Aluminum,Surface Anodized
Module Material: Copper
Life Time:10,000 hours
Working Temperature:-40-75Celsius
Focal Length: 80W-50mm
Cable: 3 pin, Red "+" Black "-" Yellow "PWM"
Purchase the laser for engraving drawings, including 1000 vector drawings and 9 multi-layer engraving designs. You can contact customer service to get it after placing an order.
