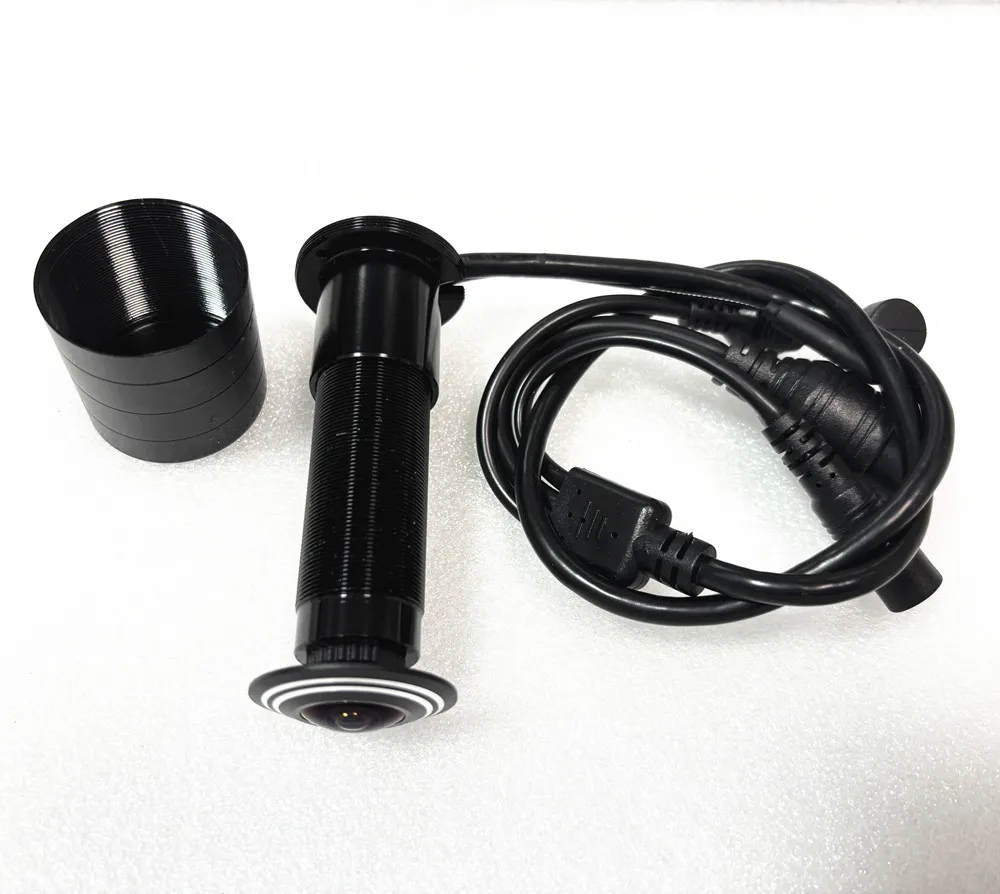

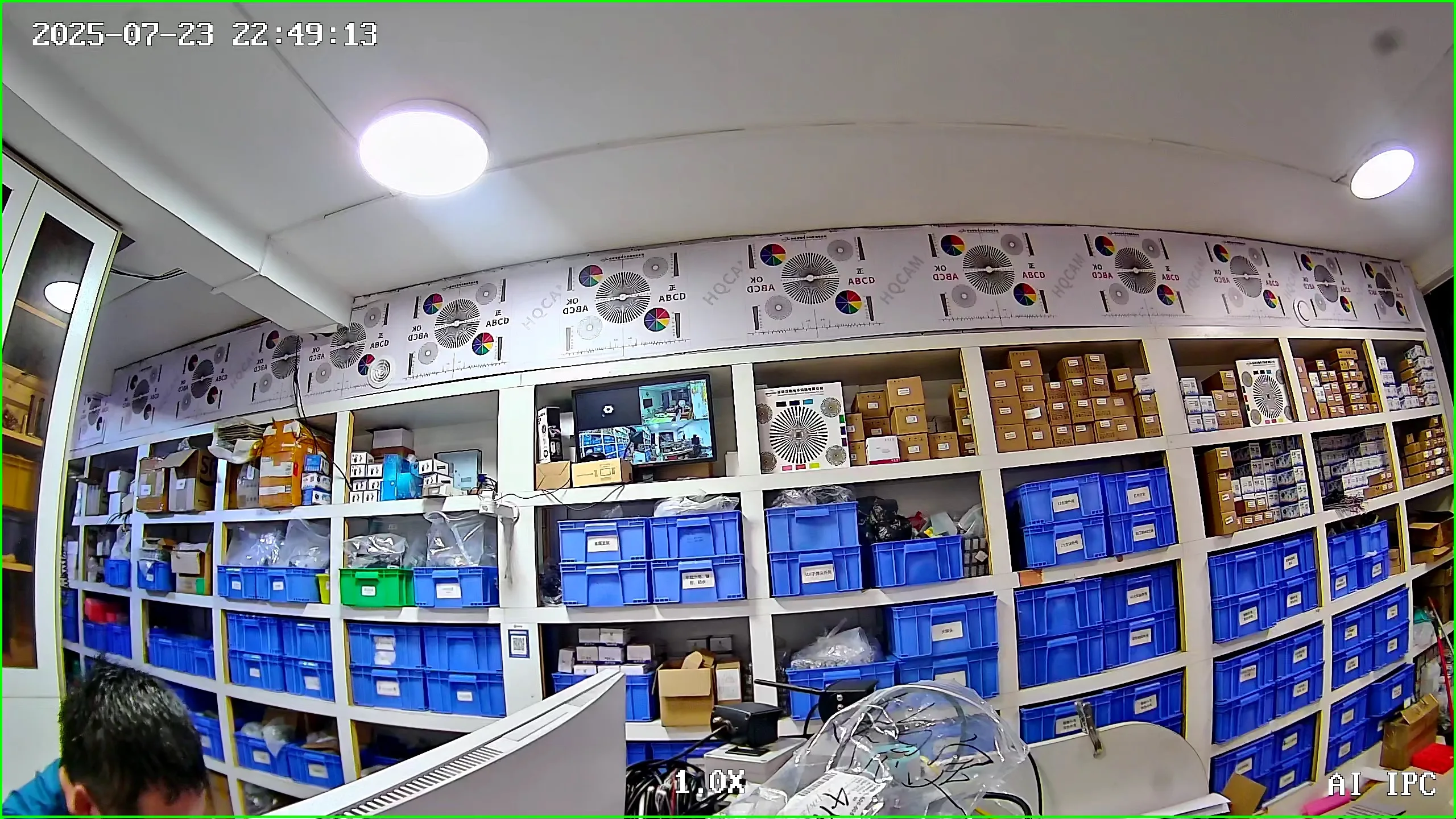

This camera captures real footage

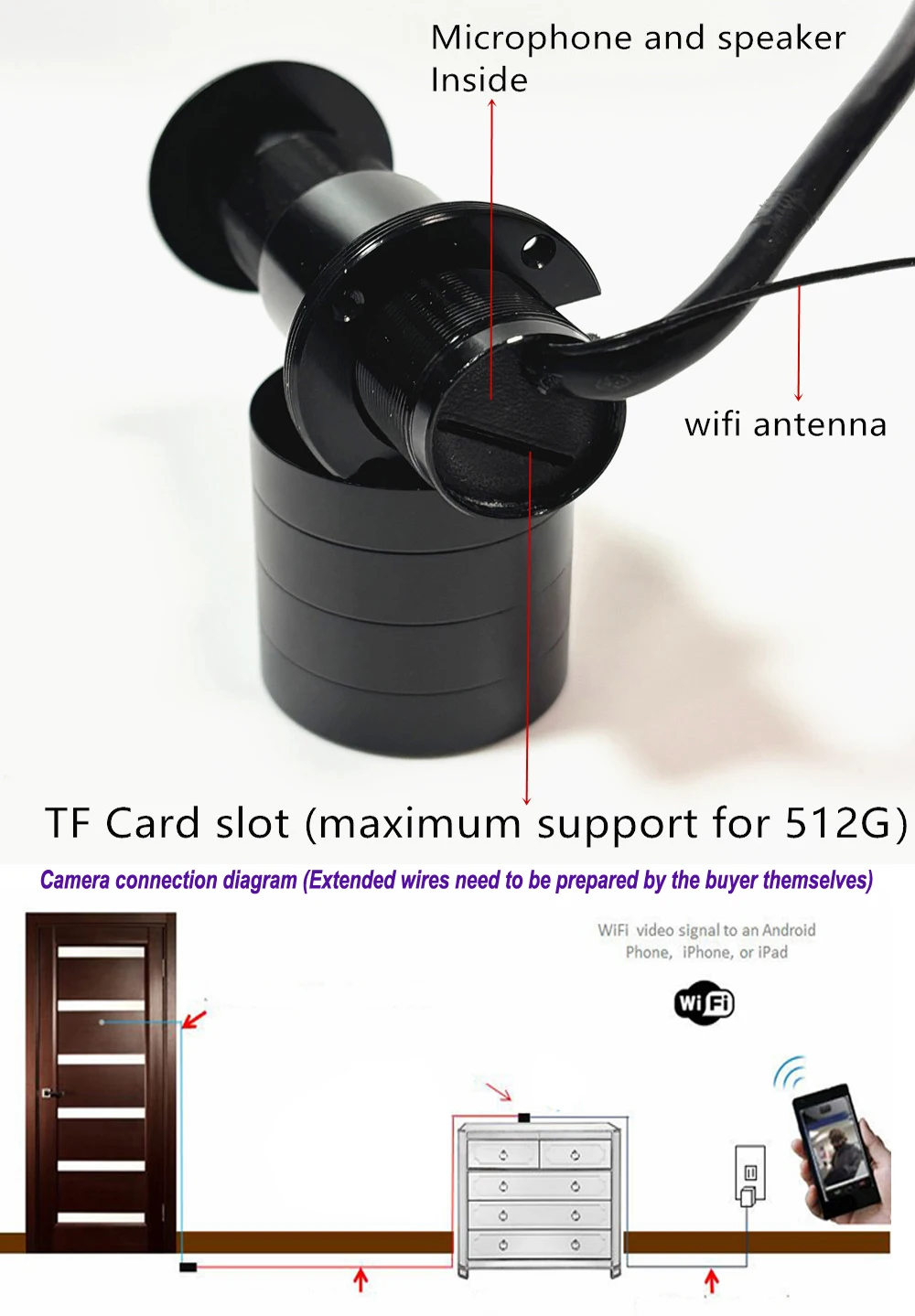

Schematic diagram of power supply connection for the camera

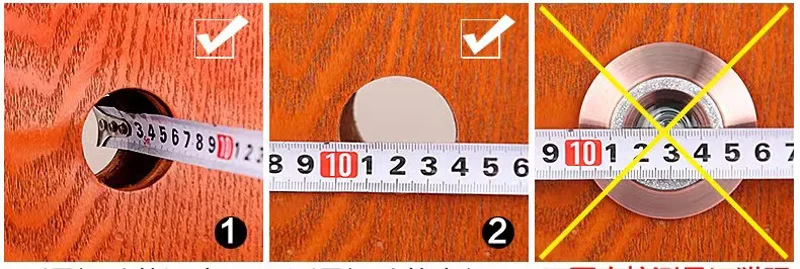

The correct measurement method for door holes

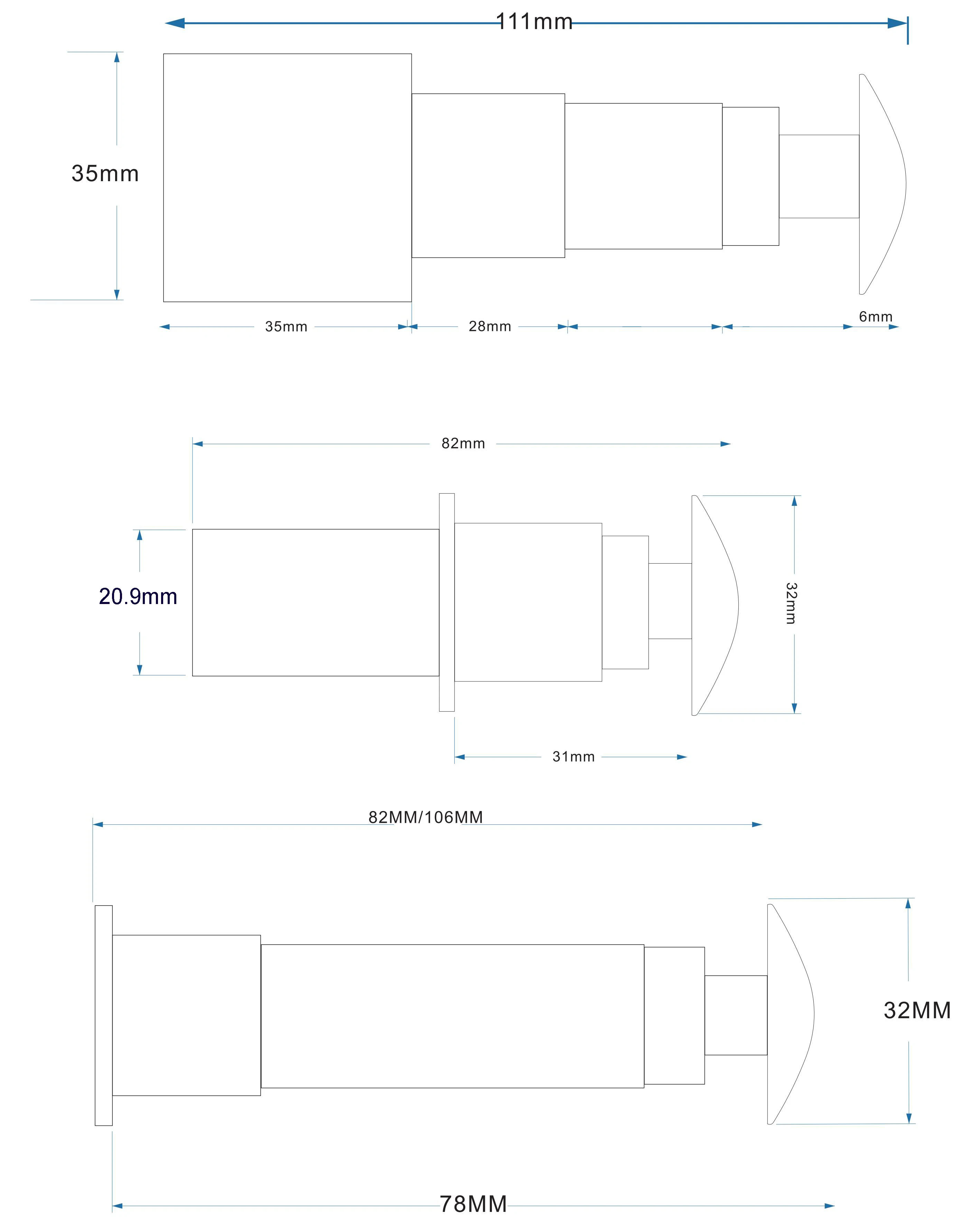

Camera size detail drawing

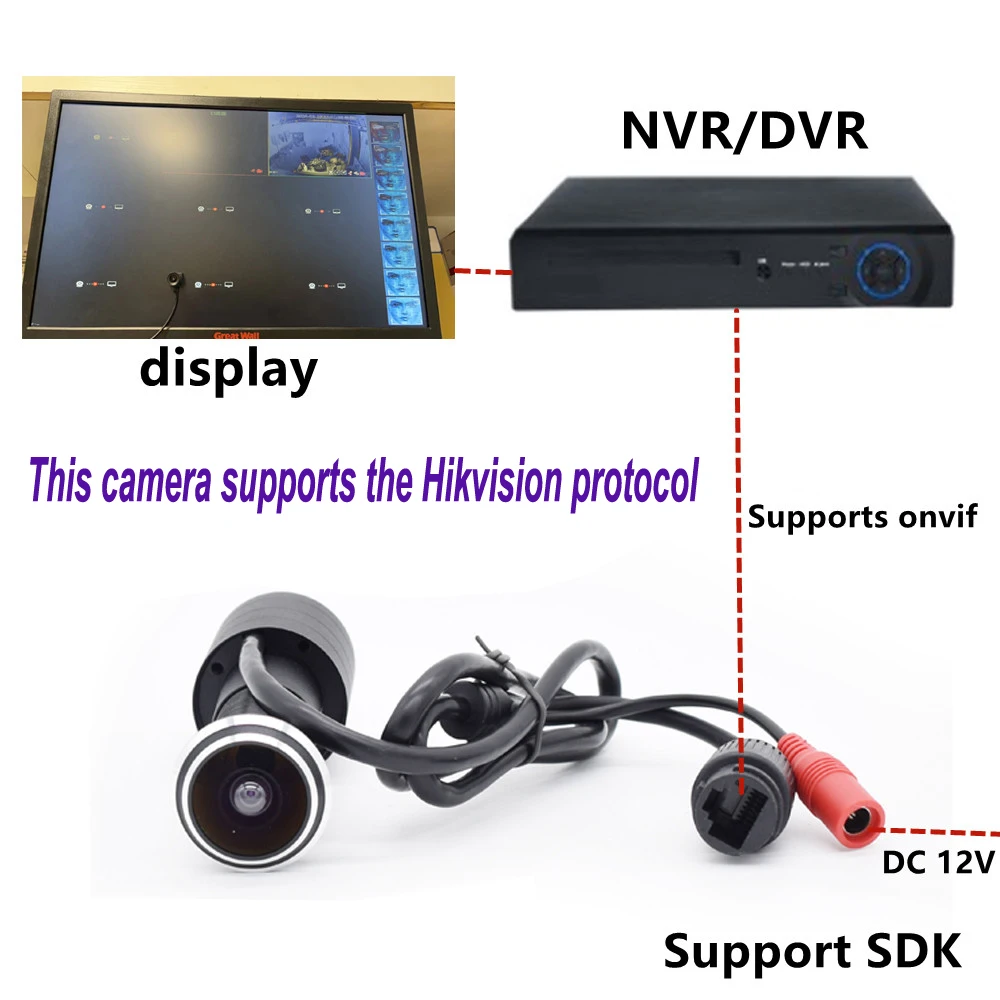

Supports on vif protocol as well as Hik vision protocol, and can be connected to NVR
· Built-in HI3516C 1T computing power NPU, built-in AI algorithm large model;
· Support wired and wireless connections; Wireless connection support Wi-Fi 6, more stable transmission;
· Come with WiFi hotspot, no network can also monitor; APP support Bluetooth network, WiFi connection is more convenient;
· Intelligent detection of light, see faces at night;

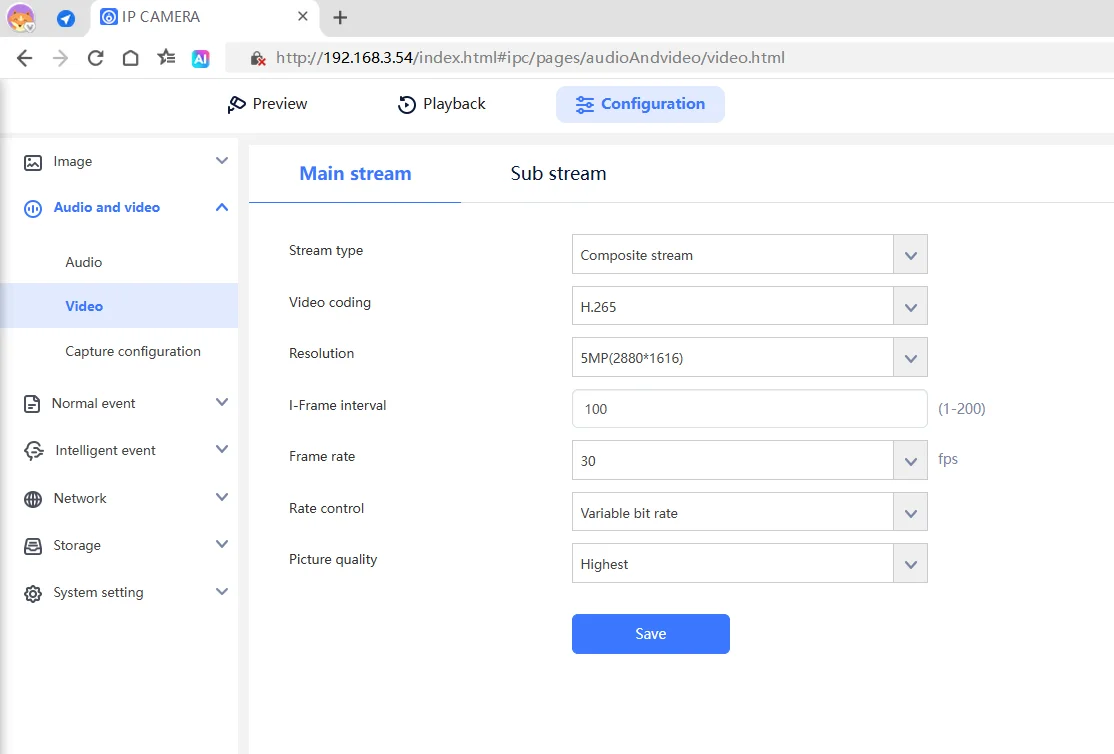

· Built-in WEB 2.0 page, support Edge, Chrome, Safari, Firefox and other non-IE kernel browsers;
· Support 512G TF card; Support intelligent video/ordinary video, save full automatic coverage;
· 5MP HD resolution, support dual stream output;
· New APP page, easy to use, support APP alarm push;
· Support sharing function, the maximum share of the APP is 16 people;
· Built-in humanoid and car shape detection function; Expand the application scenarios of electronic fence, cross-border detection, departure detection, and passenger flow statistics;
· Support humanoid tracking, automatic return after tracking (optional);
· Support linkage sound and light alarm; Alarm sound support custom recording and text to voice (optional);
· Support alarm output, can link red and blue lights and other alarms (optional);
· Support ONVIF protocol and access to third-party NVR;
· Support screen occlusion to protect the privacy area;
· Support OSD character overlay function, support network timing;
· Support audio input and output, two-way intercom, audio and video synchronization;
Product parameter description |
Day and night mode |
Black light full color (Requires a black light lens), intelligent dual light, infrared mode (Optional), intelligent light face but exposure |
Image adjustment |
Support automatic white balance, support digital width dynamic, support backlight compensation, brightness contrast color and other parameters adjustable; |
Privacy block |
The private occlusion area is supported |
acoustic image |
Support mirror image |
OSD |
Support OSD settings and support OSD drag |

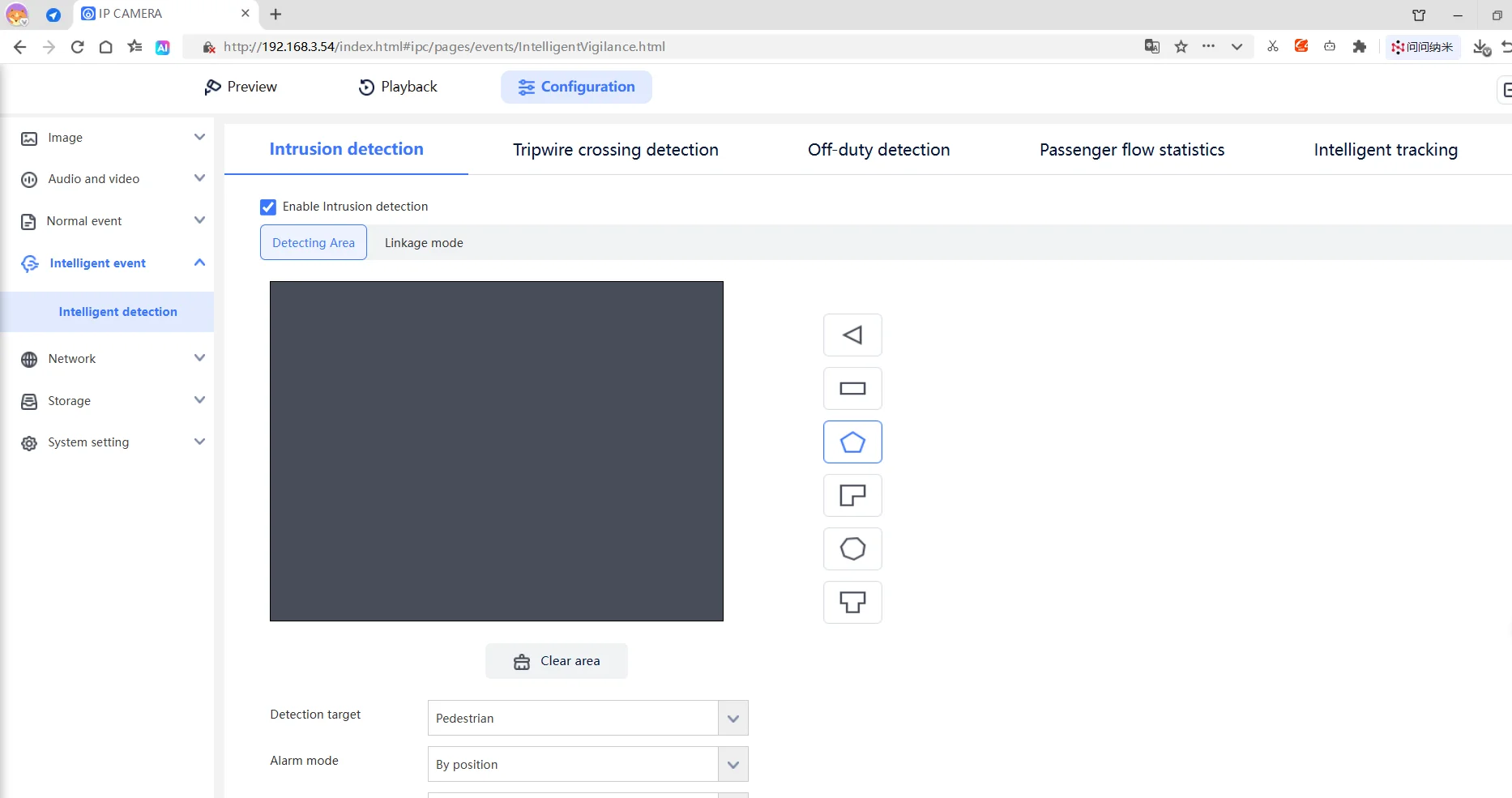

Intelligent application |
Electronic fence |
Support the detection of human shape / vehicle shape, and the equipment shall conduct the alarm after entering the warning area; |
Transboundary detection |
Support the detection of human shape, support the detection of A-> B, B-> A, A <-> B direction; |
Deportation investigation |
Support setting the detection area, the equipment will alarm after the personnel leave for a certain time, and the alarm stops after returning; |
passenger flow statistics |
Support the detection of entering and leaving number statistics, can stack OSD to the picture in real time; daily data can be checked; |
Human tracking |
Support the humanoid tracking function, automatic tracking after personnel detection; |
Voice alarm |
Support linkage voice broadcast, voice content can be customized recording; |
IO report to the police |
Support, can linkage red and blue light alarm; (Optional) |
Video recorder linkage |
Support linkage video recorder large screen, local voice, AI video, push and other functions |
video frequency |
compress |
H.264 ,H.265 |
|

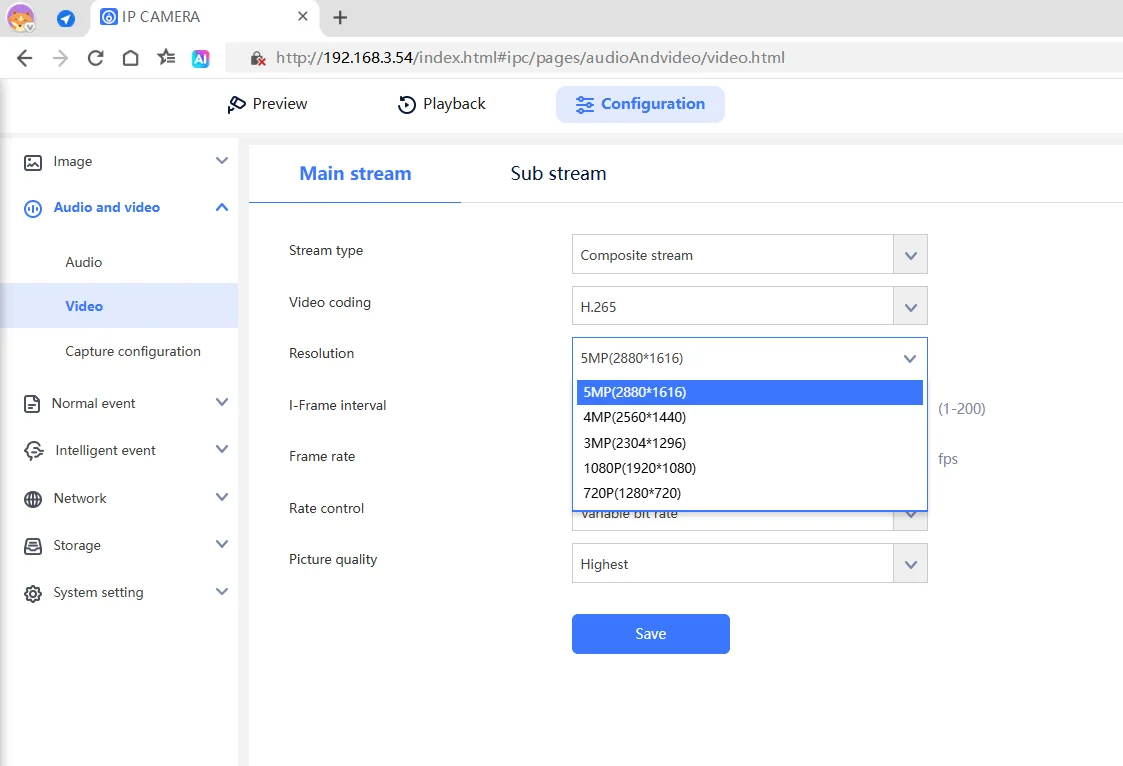

resolution ratio
|
Main code stream: 5MP (2880 * 1616) / 4MP (2560 * 1440) / 3MP (2304 * 1296) / 2MP (1920 * 1080) / 1MP (1280 * 720) |
Sub-stream: 448P (800 * 448) / 360P (640 * 360) / CIF (352 * 288) |
memory |
Support 512 GTF card storage, support NVR added storage; |
network |
Ethernet |
RJ-45 10M / 100M Adaptive |
protocol |
ONVIF ,P2P ,CGI ,HTTP ,TCP/IP ,IPv4 ,RTSP ,UDP ,NTP ,DHCP ,DNS ,IP Filter |
WI FI |
WIFI-6,2.4G band, 802.11 b / g / n |
BLE |
Support Bluetooth distribution network |
access protocol |
ONVIF Agreement / private protocol / CGI |
client |
Mobile phone client: , computer client: VMS, NVR, centralized management |
audio frequency |
audio frequency |
G.711U,G711A |
Audio input |
Support (Recommended-36DB MIC) |
Audio output |
Support, built-in power amplifier (recommended 8 Ω 2W) |
General specification |
|
size |
|
work environment |
-30℃ ~ +60℃ |
source |
|
Please write to me if necessary
