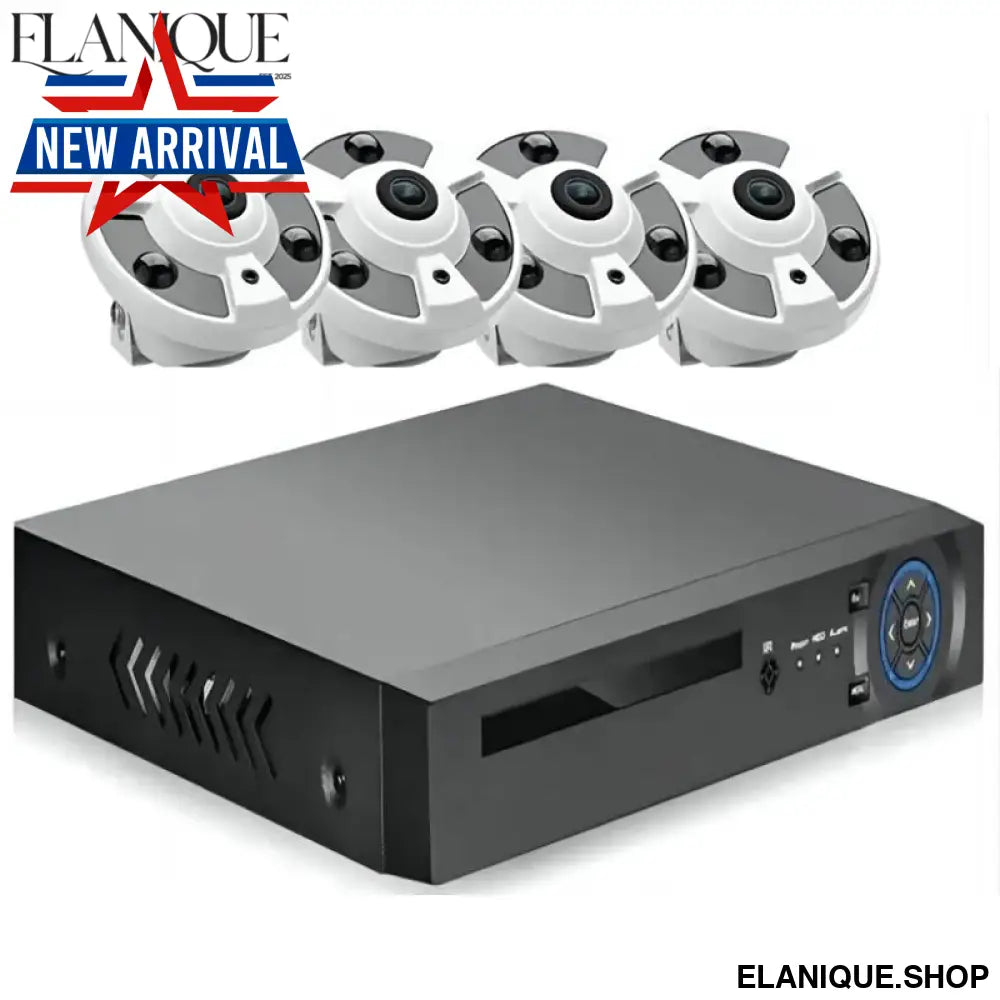

4mp 5mp 8mp 4ch Panoramic POE Security Camera System Poe Cctv Fisheye IP Kit Ip 5MP 4ch POE Panoramic CCTV Camera System
- Free worldwide shipping
- In Stock & Ready to Ship
- In stock, ready to ship
SPECIFICATIONS
Application: Indoor, Outdoor
Brand Name: BMAD,datuo

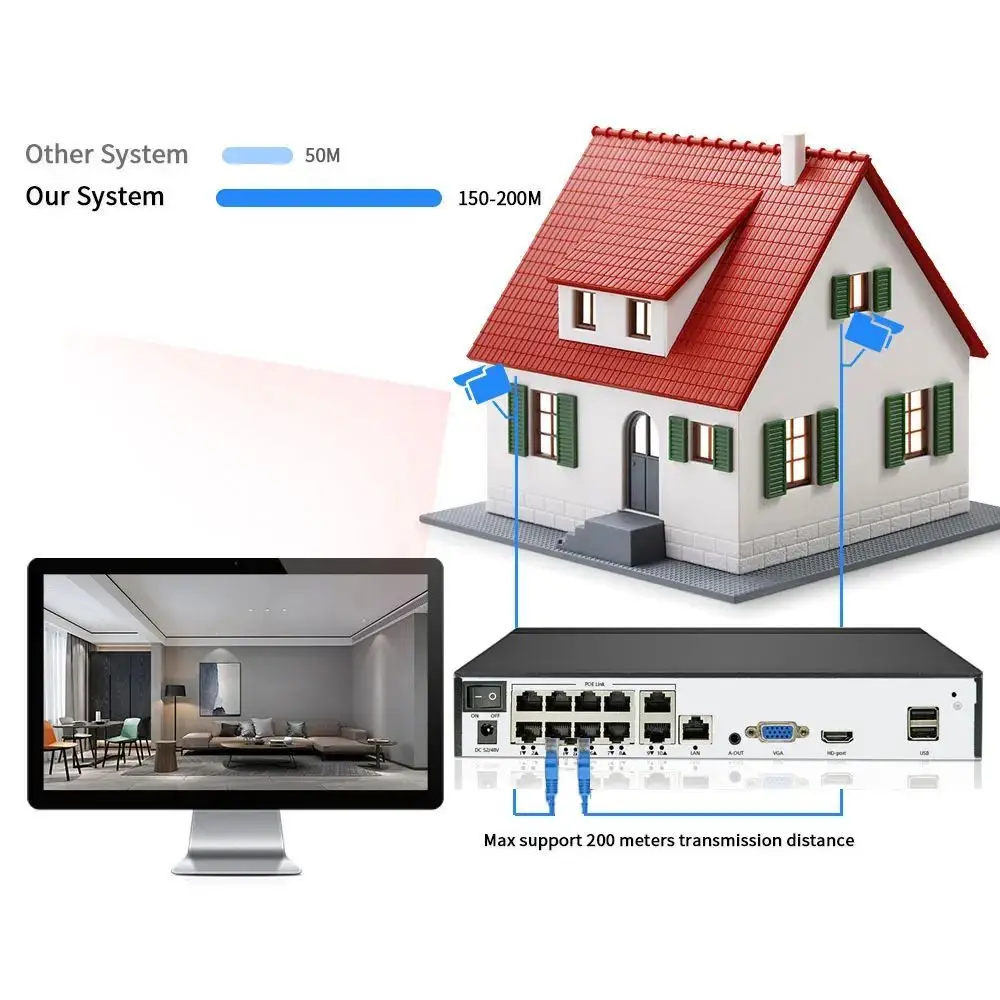

Connection distance: 100 m (open), 30 m (obstacles)
Customized support: Online Technical Support, Customized Logo, OEM, ODM
Data Storage Options: NVR
Decode: H.264 H.265
Function: Waterproof / Weatherproof, Night Vision
HDD: 1*SATA interface
High-concerned chemical: None
Keyword: 4ch POE nvr kit
Lens: 3.6mm Fixed Lens
Minimum illumination: Color: 0.1 Lux B/W: 0.01 Lux
Model Number: PF01
NVR: POE 4ch 8ch
Network Interface: 1 adaptable RJ45 10M/100M
Origin: Mainland China
Place of Origin: Guangdong, China
Port: RJ45
Resolution: 4MP 5MP 8MP
Sensor: CMOS
Special Features: Night Vision, Motion Detection, Waterproof / Weatherproof

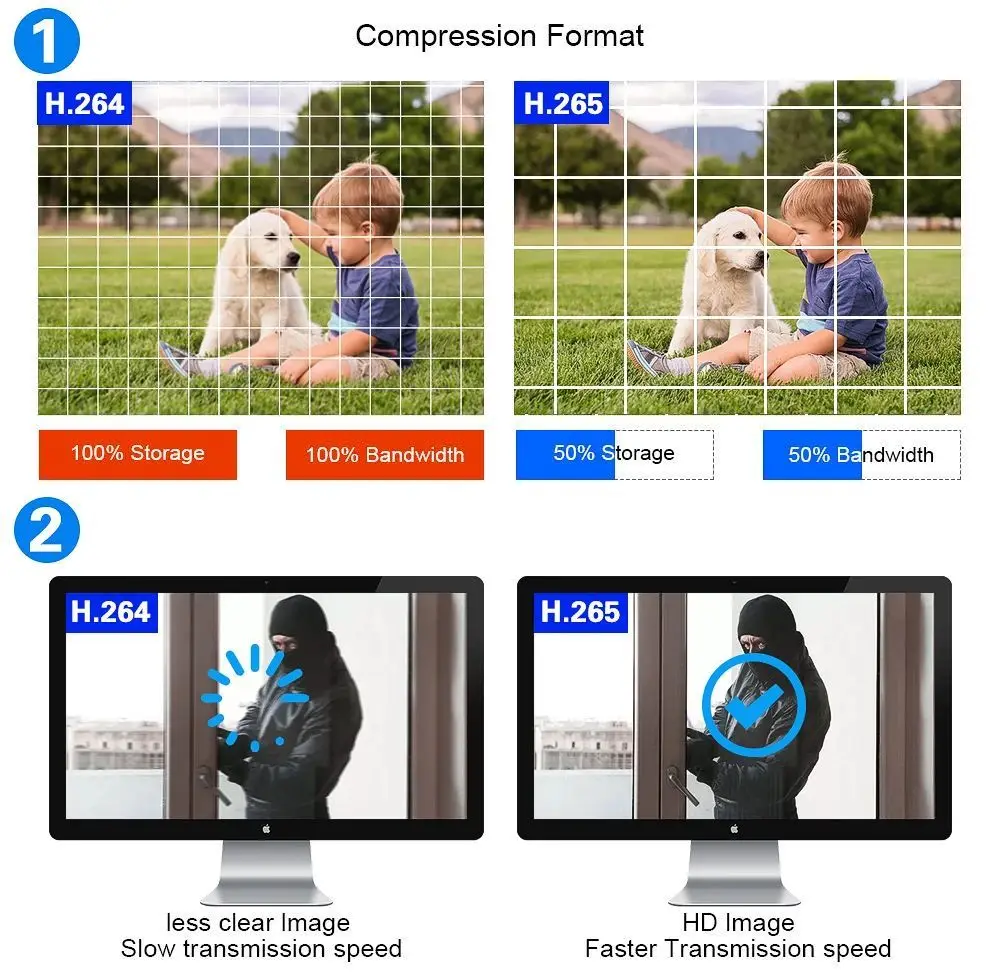

Video Compression Format: H.265
Warranty: 1 Year
|
Specification:
|
|
Kits
|
Model Type:
|
8MP 8CH POE Camera system
|
|
Model No.
|
POE5004F POE8004F POE5004F POE8008F POE5004F POE8004F
|
|
|
POE Camera
|
Lens
|
3.6mm
|
|
Sensor
|
1/2.5"SC335E CMOS
|
|
|
Image Pixel/Resolution
|
8MP
|
|
|
Image Compression:
|
H265
|
|
|
Infrared Distance
|
To 30m
|
|
|
Day & Night
|
Full color night vision
|
|
|
2D/3D DNR
|
Auto/BW/Color
|
|
|
OSD
|
Date Time/Tilt
|
|
|
Internet Interface
|
1*RJ45 Ethernet Interface, 802.11b/g/n
|
|
|
Power
|
12V DC/2A (Output), 100-240V AC (Input) , 50-60HZ
|
|
|
Shape material
|
Metal
|
|
|

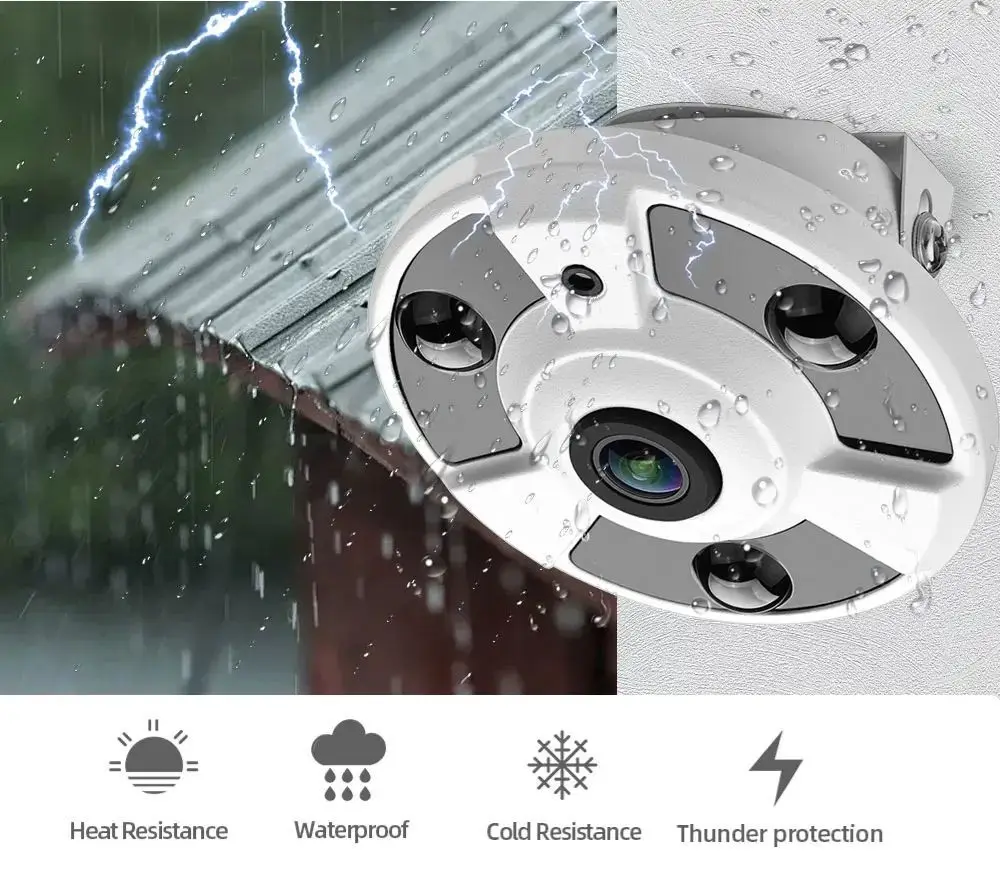

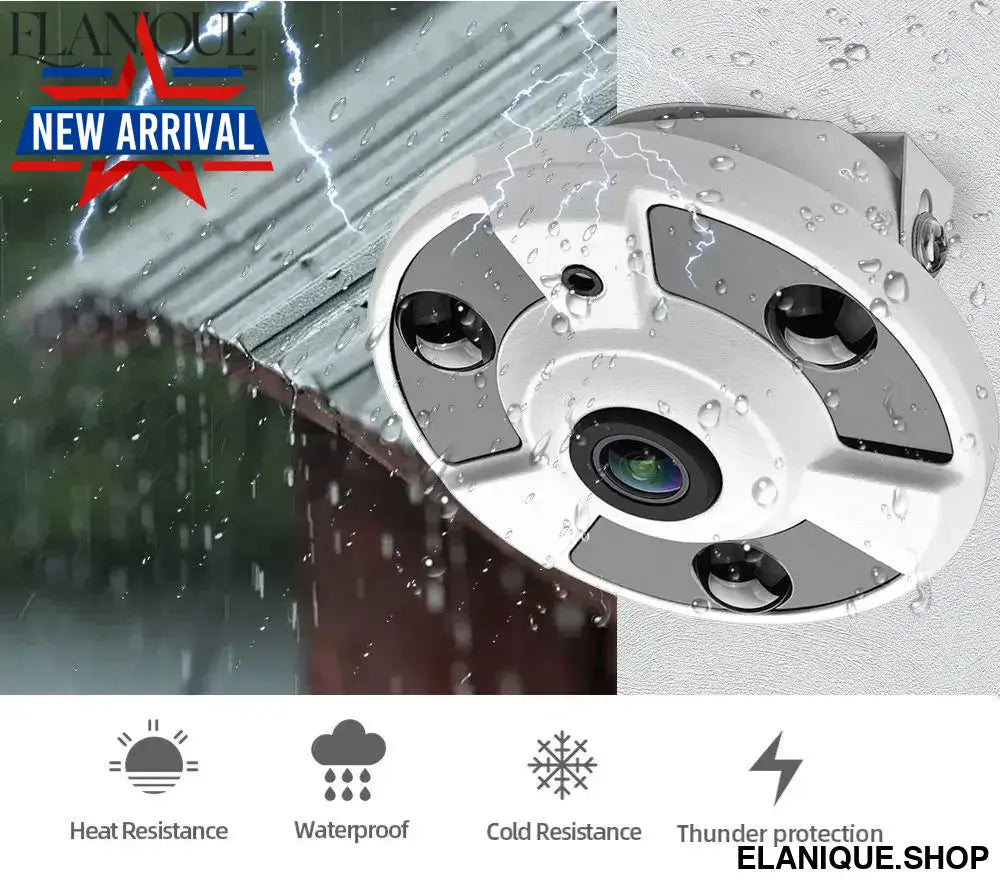

Waterproof
|
IP66
|
|
|

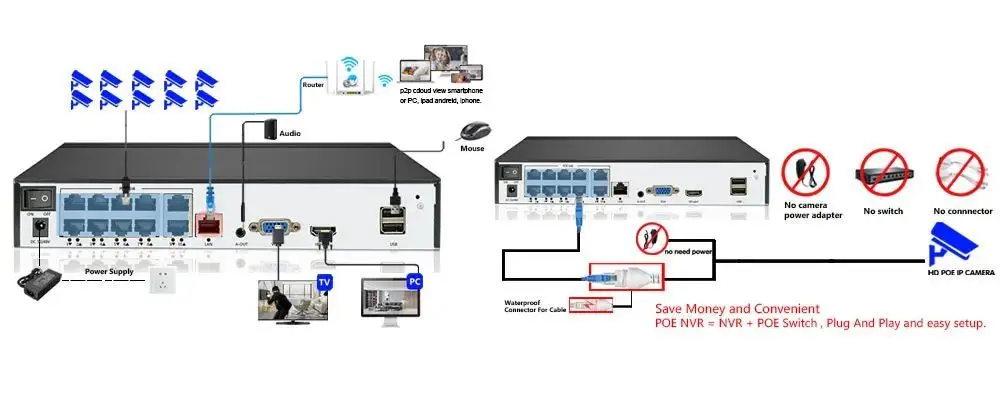

POE NVR
|
Model No
|
8708K
|
|
Audio interface
|
Two-way Audio, Bulit in Mic and Speaker,
|
|
|
support audio and video synchronization
|
||
|
Video Output
|
Main Stream:5MP 2592*1944@15fps;4MP 2560*1440@20fps;
|
|
|
2MP 1920*1080@20fps;Sub Stream:704*576@25fps
|
||
|
Record mode
|
Manual,Alarm,Motion Detection,Timing
|
|
|
Internet Interface
|
5*RJ45 10M/100M, 4*RJ45 support POE IEEE802.3af/at
|
|
|
Backup method
|
USB,Mobile hard disk,network backup,SATA
|
|
|
Network protocol
|
On-vif/P2P/RTSP/FTP/DHCP/NTP/UPnP
|
|
|
Power
|
48V/2A
|
|
|
Size
|
L218*255*41mm
|
|
|
Characteristics
|
AI
|
motion detection,line detection, face detection
|
|
D-WDR
|
Support
|
|
|
WEB
|
Support
|
|
|

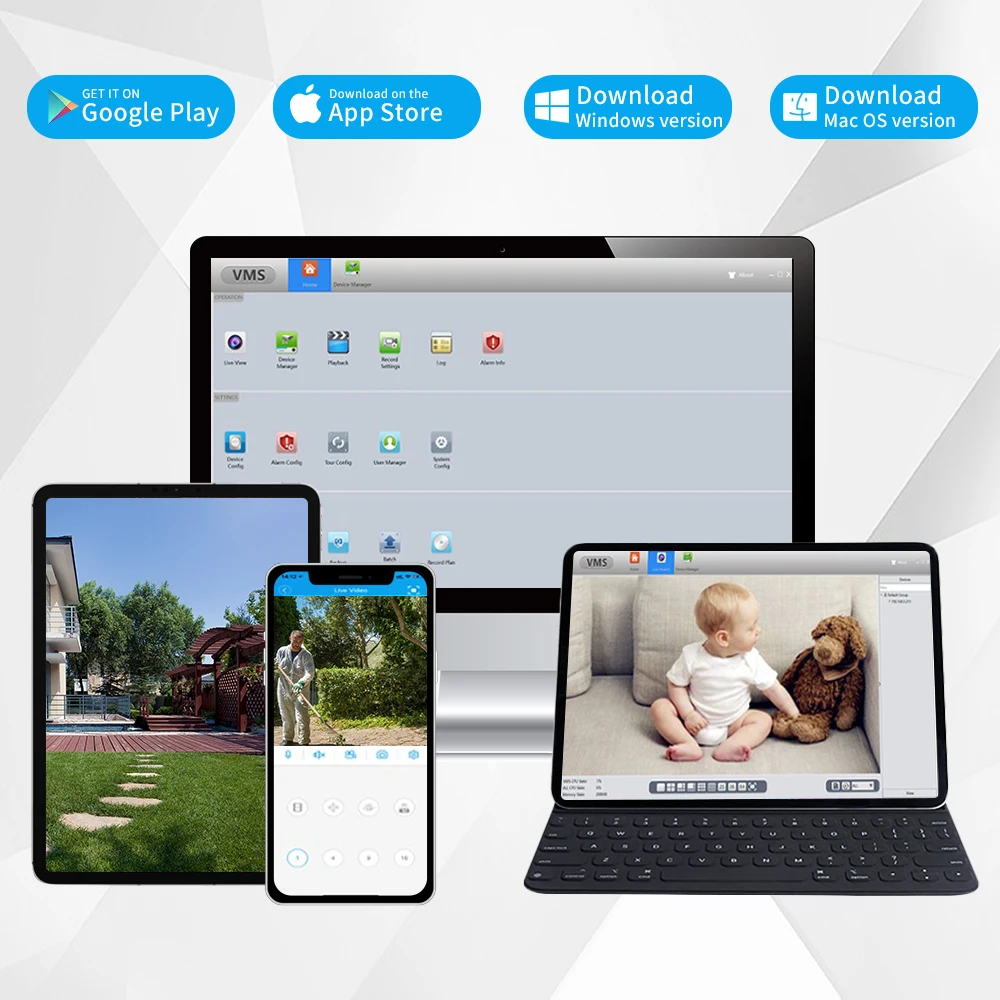

CMS
|
Support
|
|
|

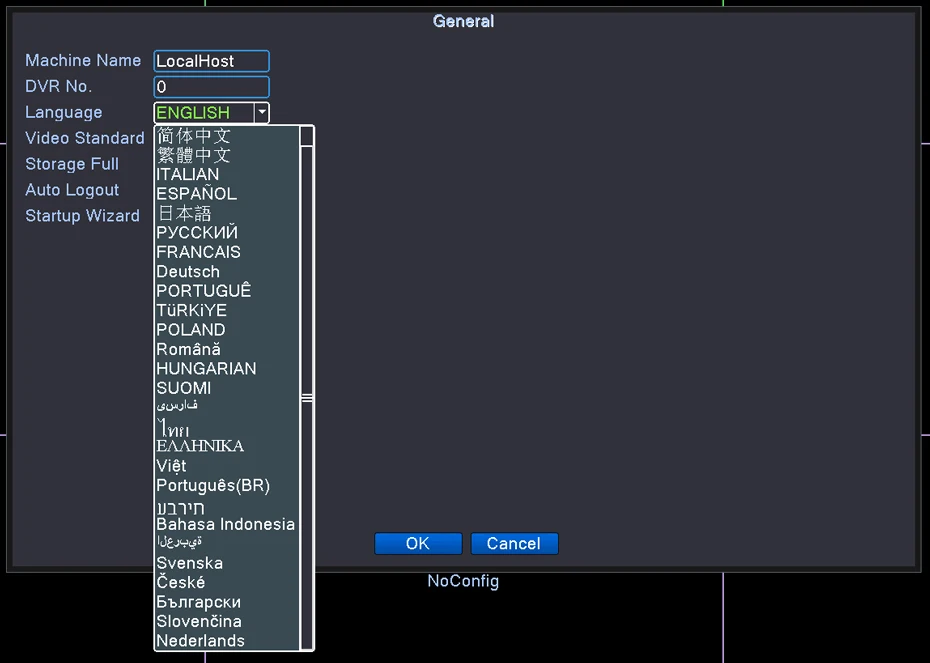

Operation interface
|
16-bit true color graphic menu operator interface with mouse operation
|
|
|
Video access
|
8 channels 5M/16 channels 5M/32 channels 4k
|
|
|
Motion Dection
|
Support
|
|
|
Storage Type
|
1 * SATA Interface(Max 8TB)
|
|
|
OEM & ODM
|
Support
|
|
|
Custom LOGO
|
Support
|
|
|

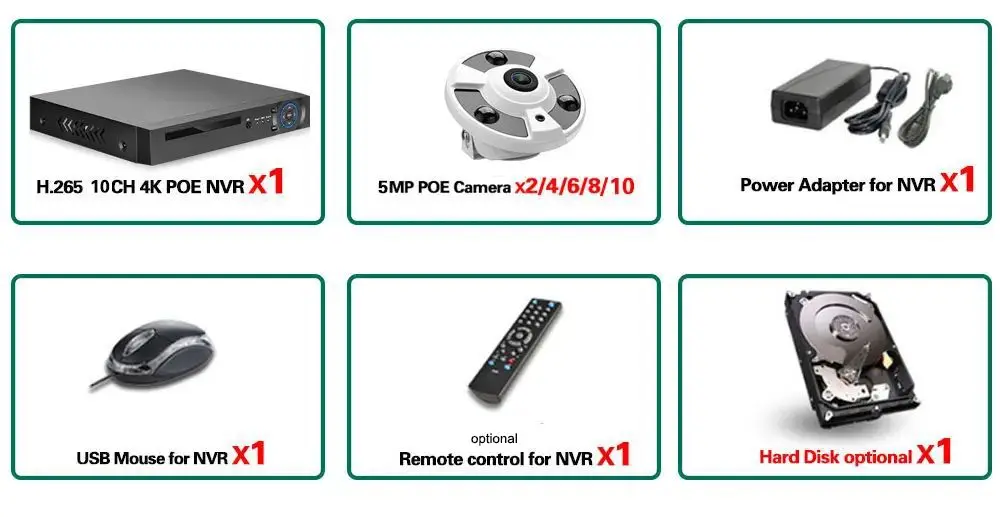

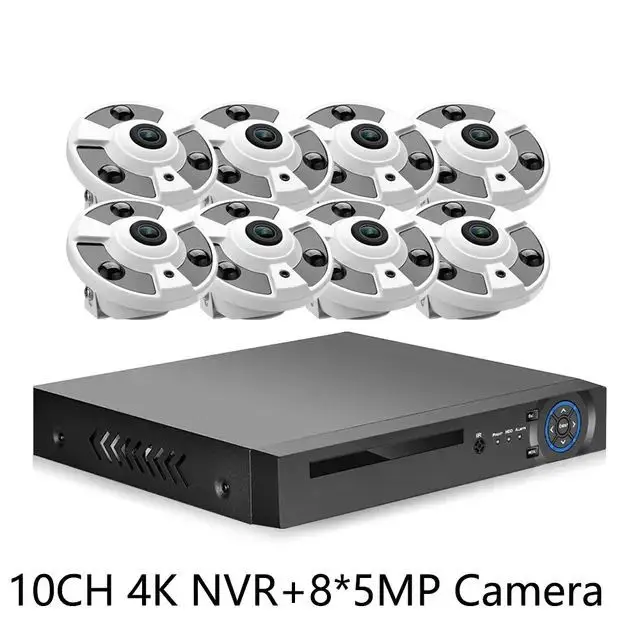

Kit Including
|
Packing info
|
*1 x 8CH 8MP 48V POE NVR
|
|
*8 x 8MP Waterproof Outdoor POE IP Cameras
|
||
|
*8 x 20M Power Network Cable for Camera
|
||
|
*1 x Power Supply for NVR
|
||
|
*1 x Mouse for NVR
|
||
|
*1 x User manual
|
||
|
*8 x Waterproof Connector for Cable
|
||
|
*1 X Remote Control (No Battery)
|
