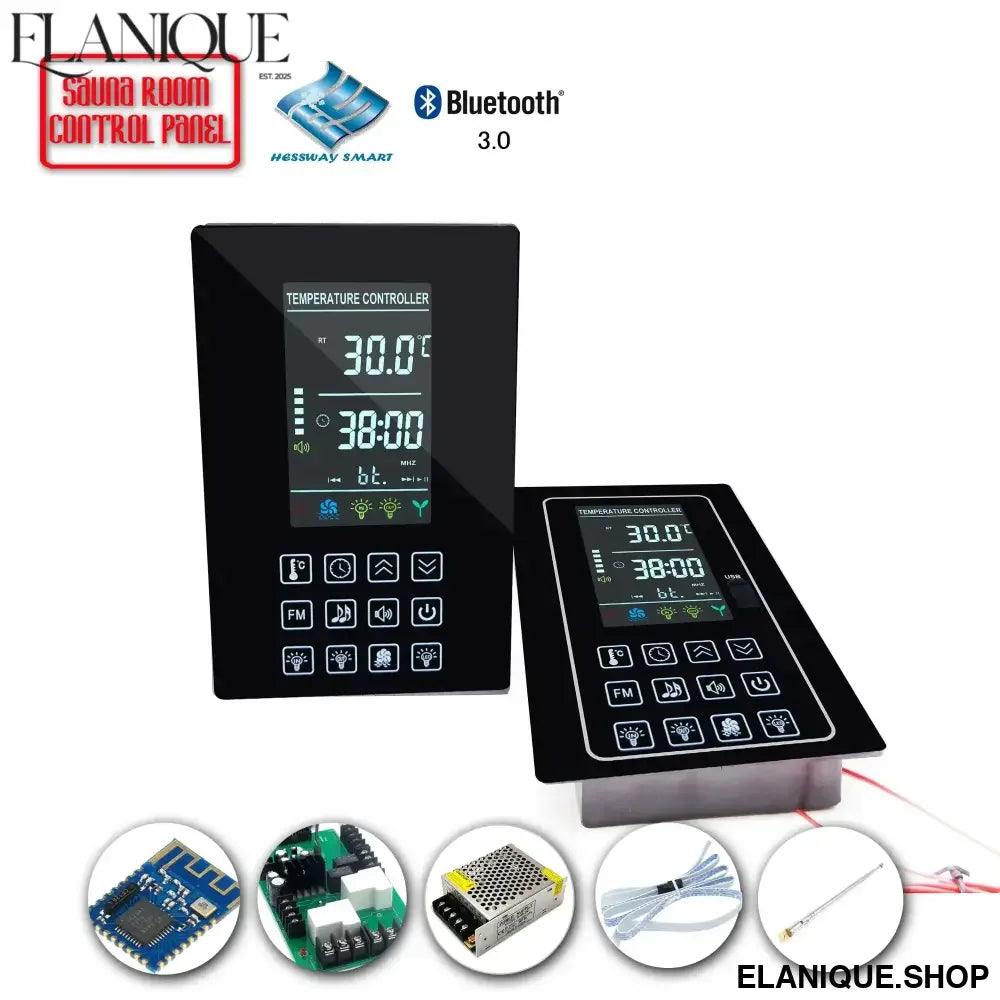

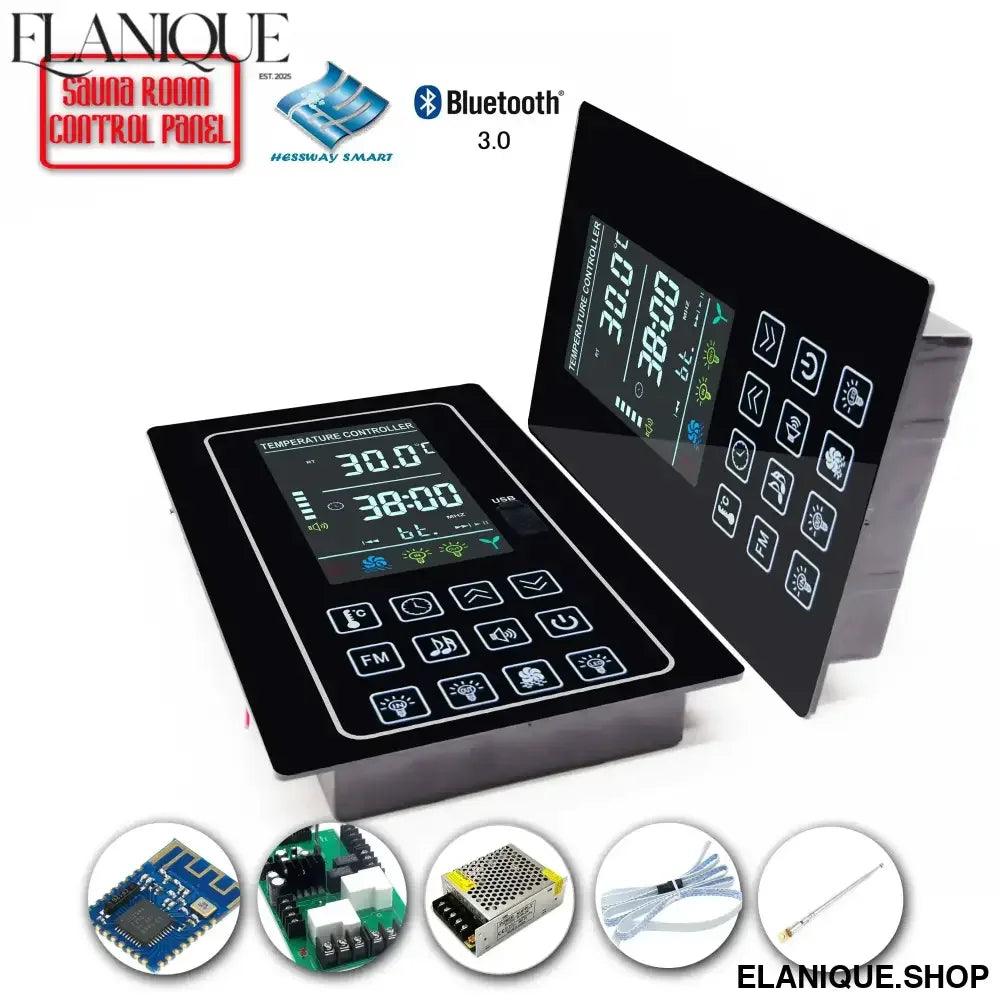

Features

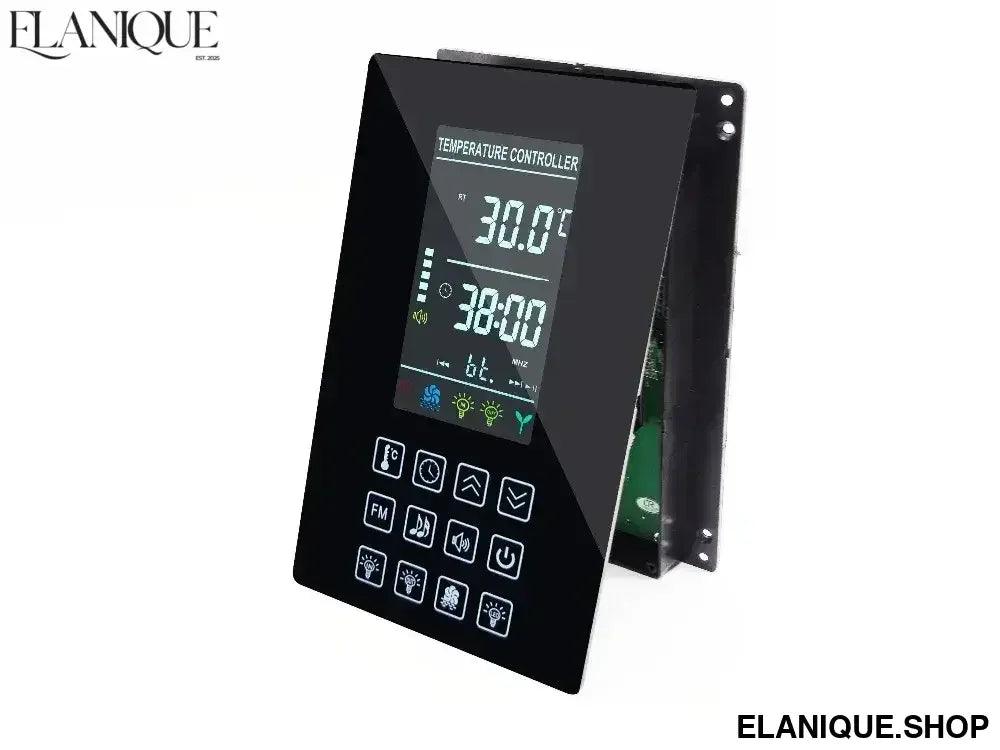

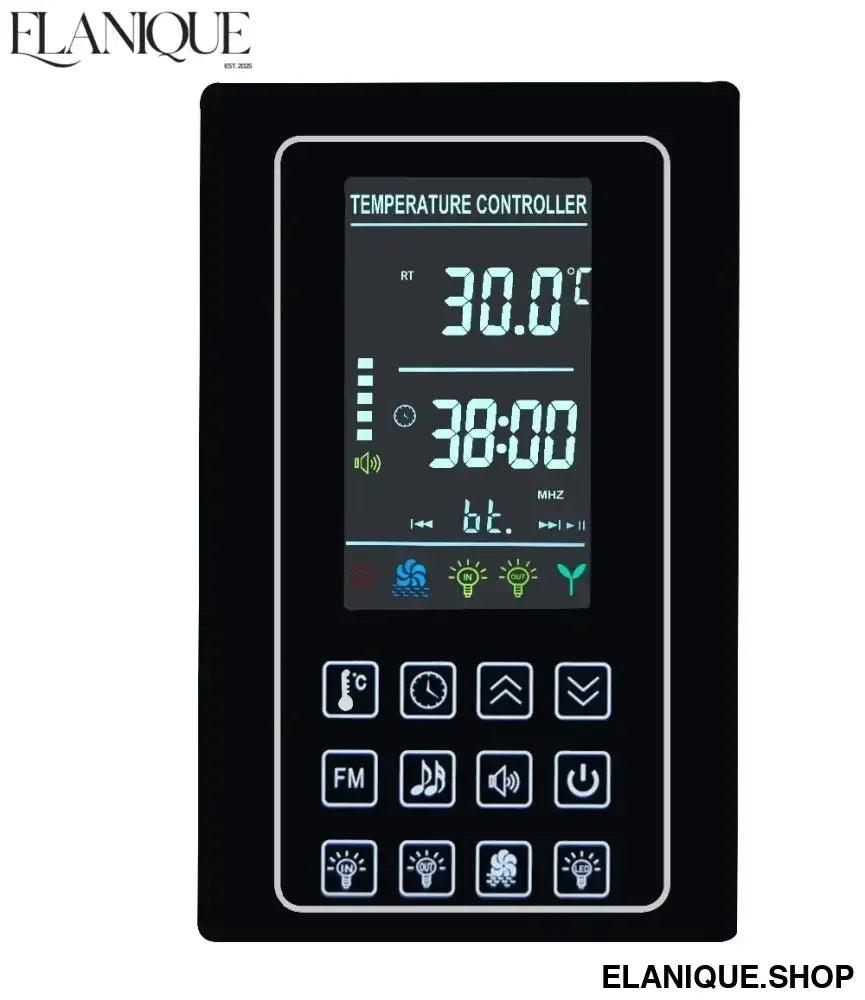

◤Color LCD screen
◤USB port for MP3
◤Power down memory function
◤Countdown setting range 1-99minute

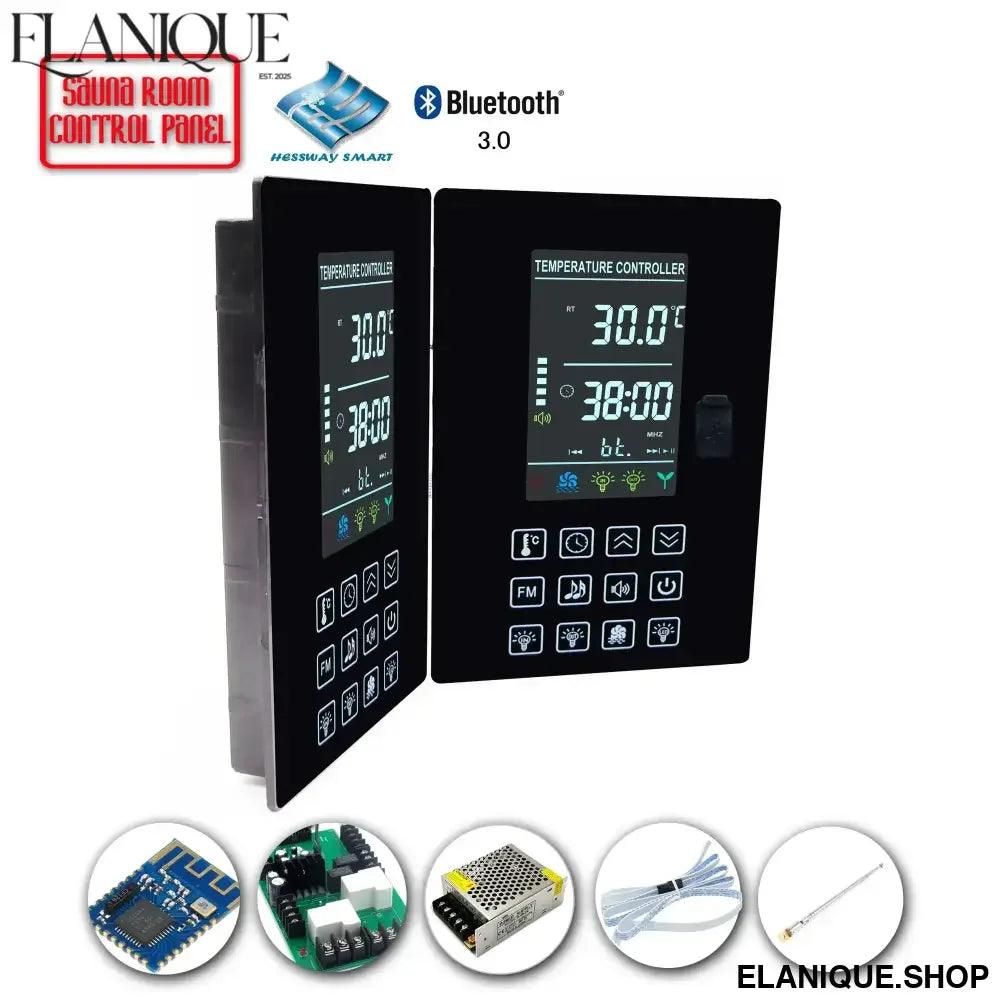

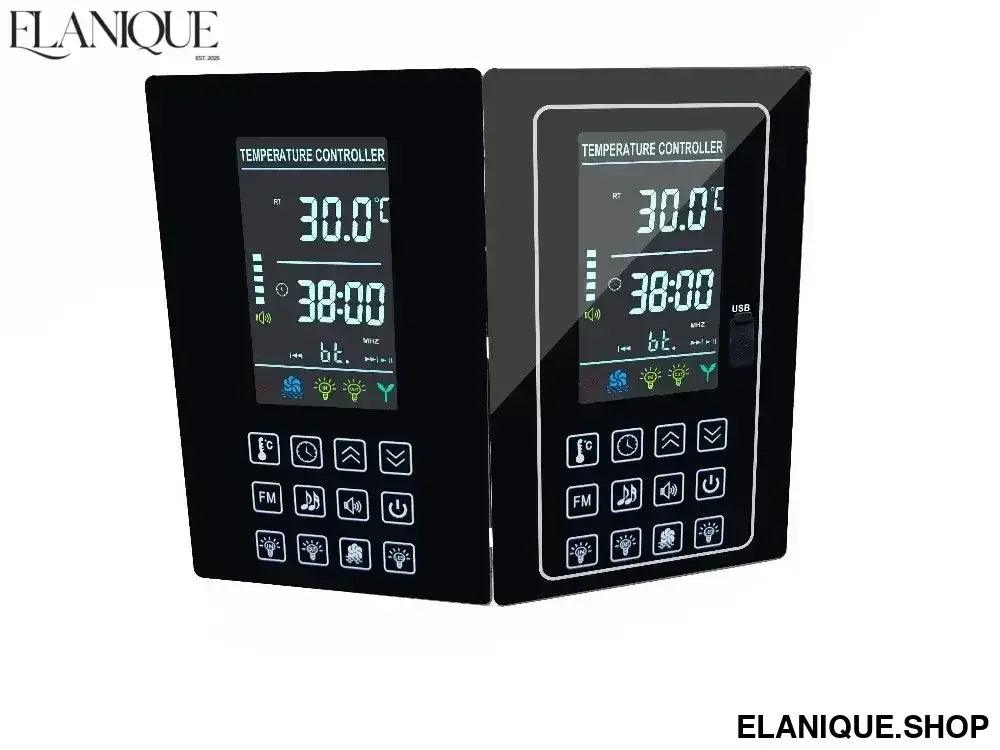

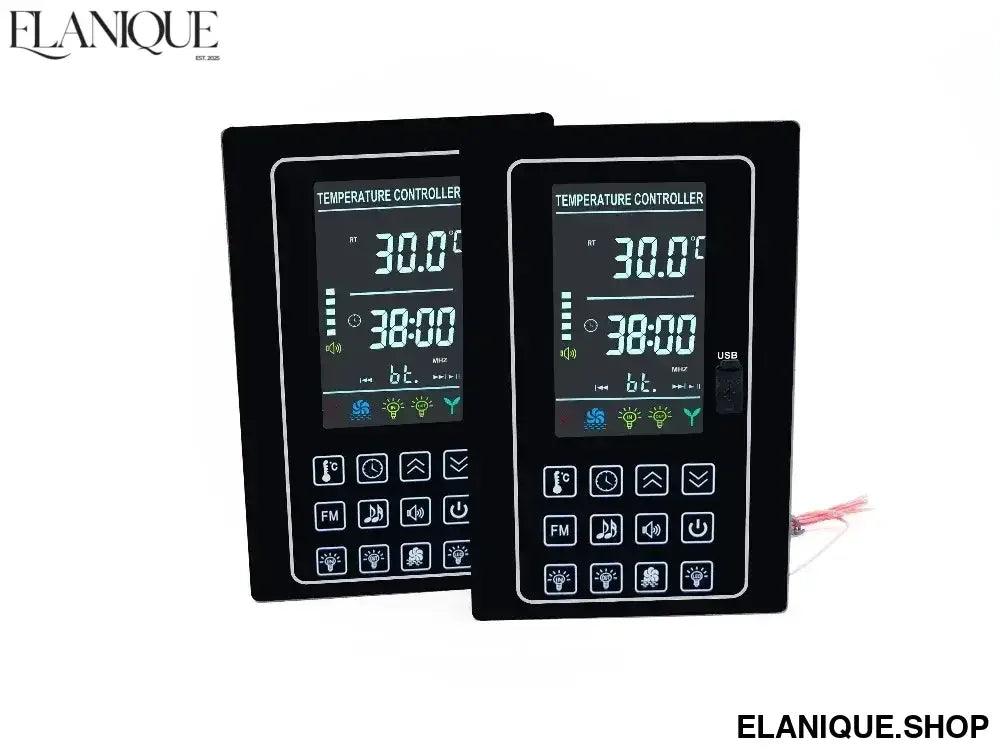

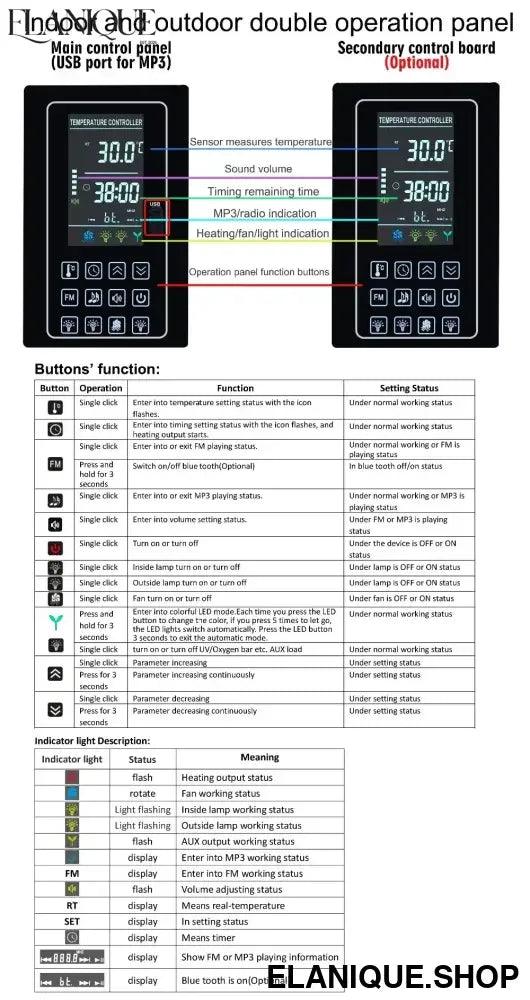

◤Dual panels: primary paneland secondary panel

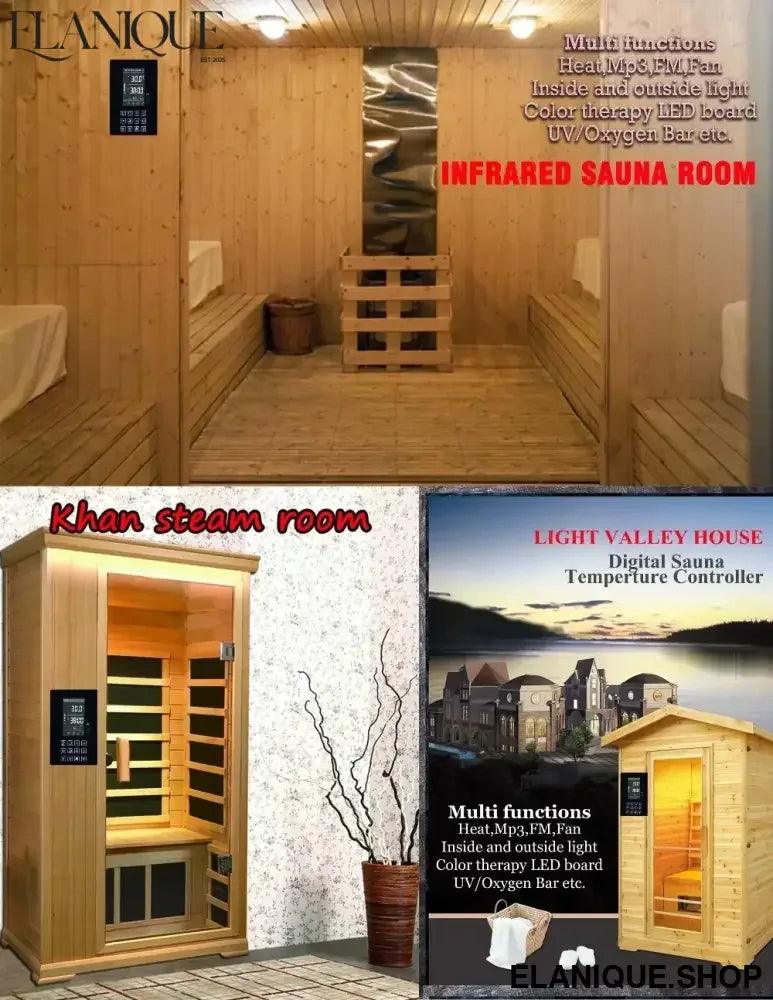

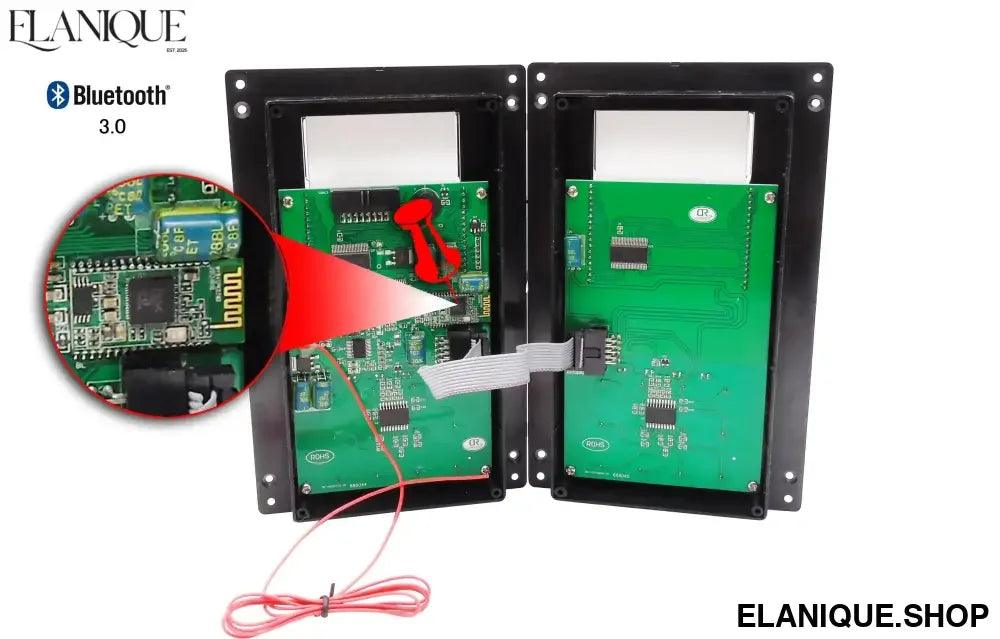

◤Multi functions: Heat, mp3,FM,Bluetooth function,inside and outside light, Color Therapy LED board, fan, AUX(UV/Oxygen bar etc.)
Parameters
◤Temperature controlling range: 18~110°C
◤Resolution: 0.1°C; Accuracy: ±1°C
◤Power Supplyrange: 100~240VAC±10% 50HZ/60HZ

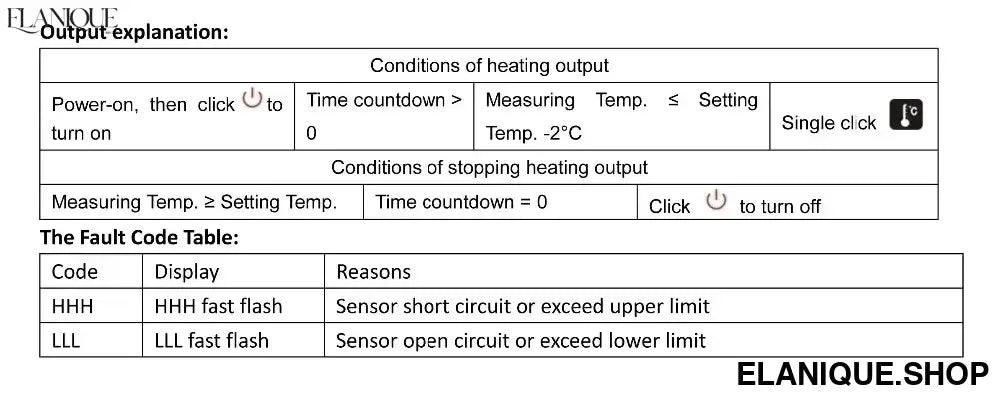

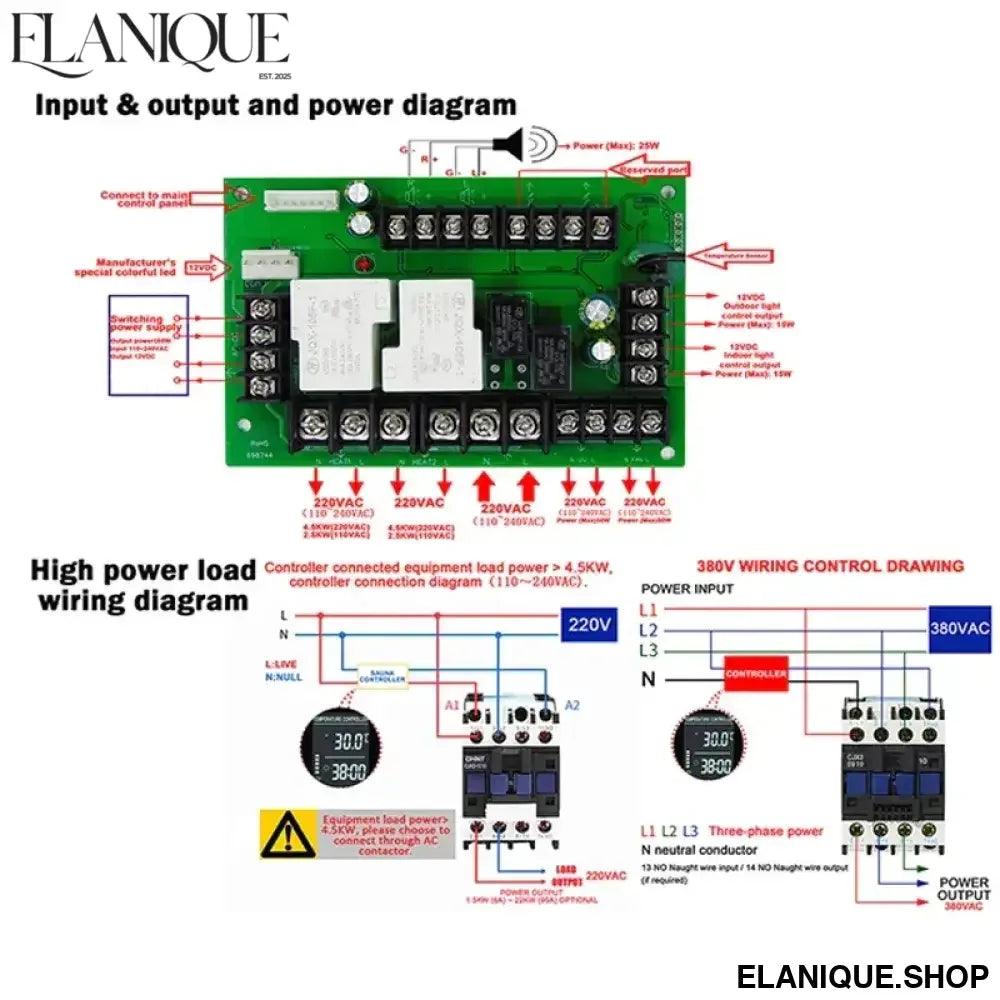

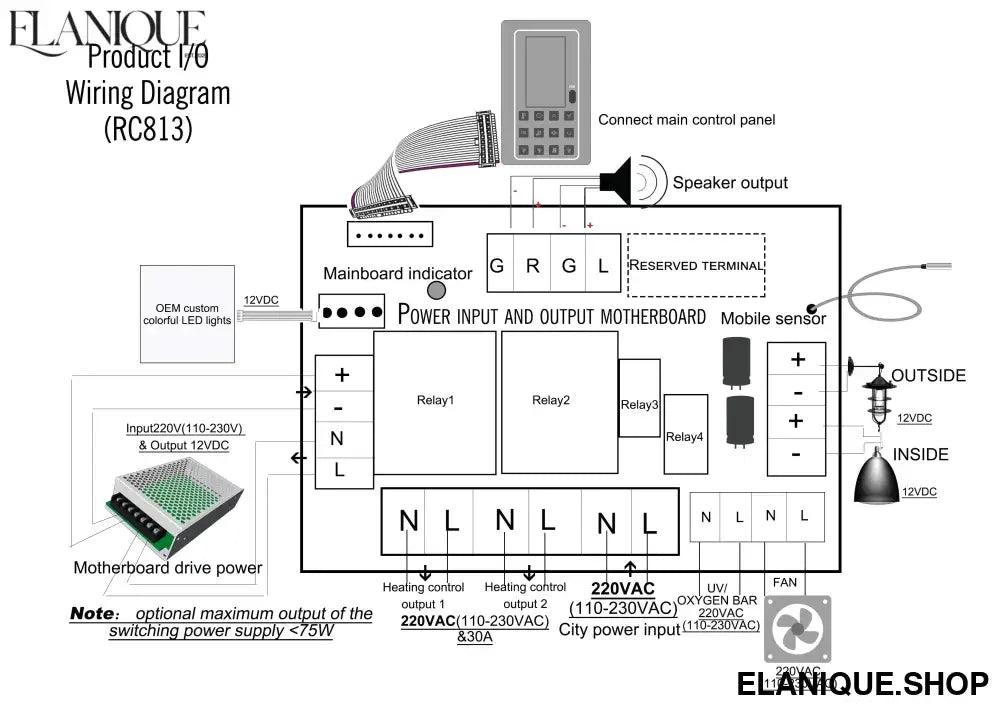

◤Heat Output: two 30A relay parallel outputs control heating; resistive load max. 4.5KW/220V, 2.5KW/110V
(If you want to connect bigger load, please buy AC contactor on your local market, and connect AC contactor before using.)
◤Fan(110V/220V): 10A relay; It is recommended to connect 50W;
◤AUX(110V/220V):10A relay; It is recommended to connect 50W;
◤Switching power supply: Input 110V/220V, output 12VDC/35W (The factory can configure switching power supply for free. Optional switching power supply range 30W~60W. Warning: If the loading power is >60W+10%, the PCB may burn out);

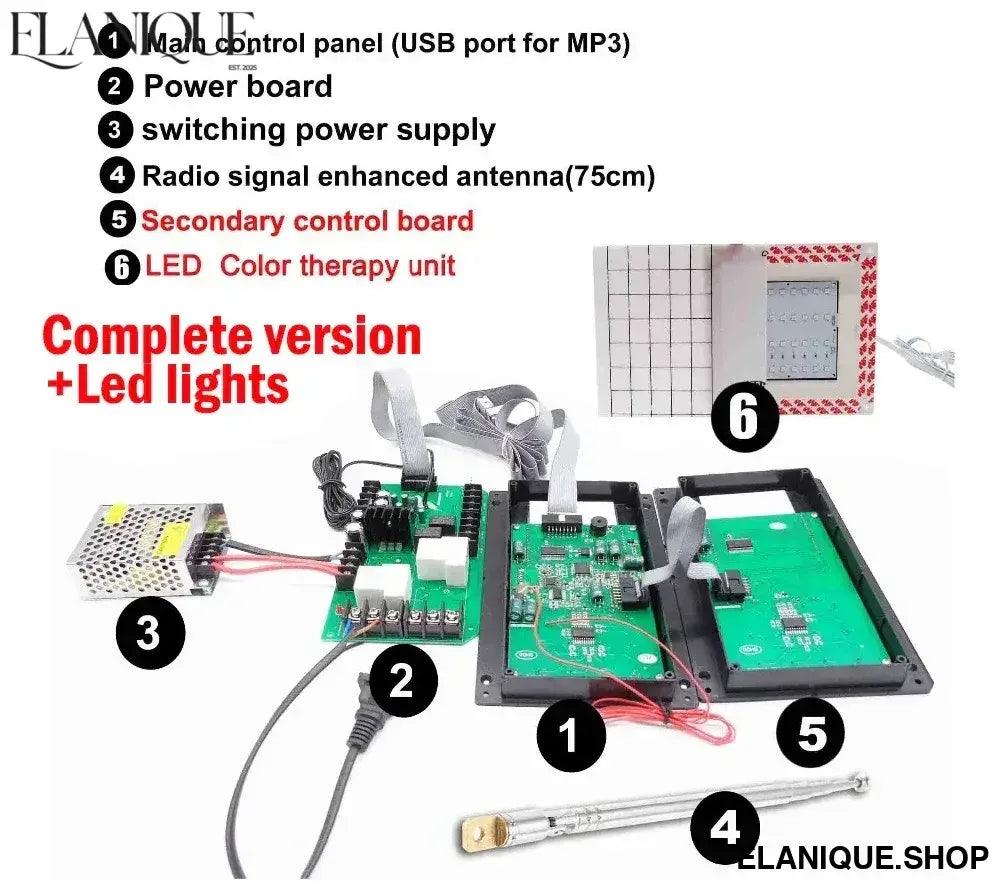

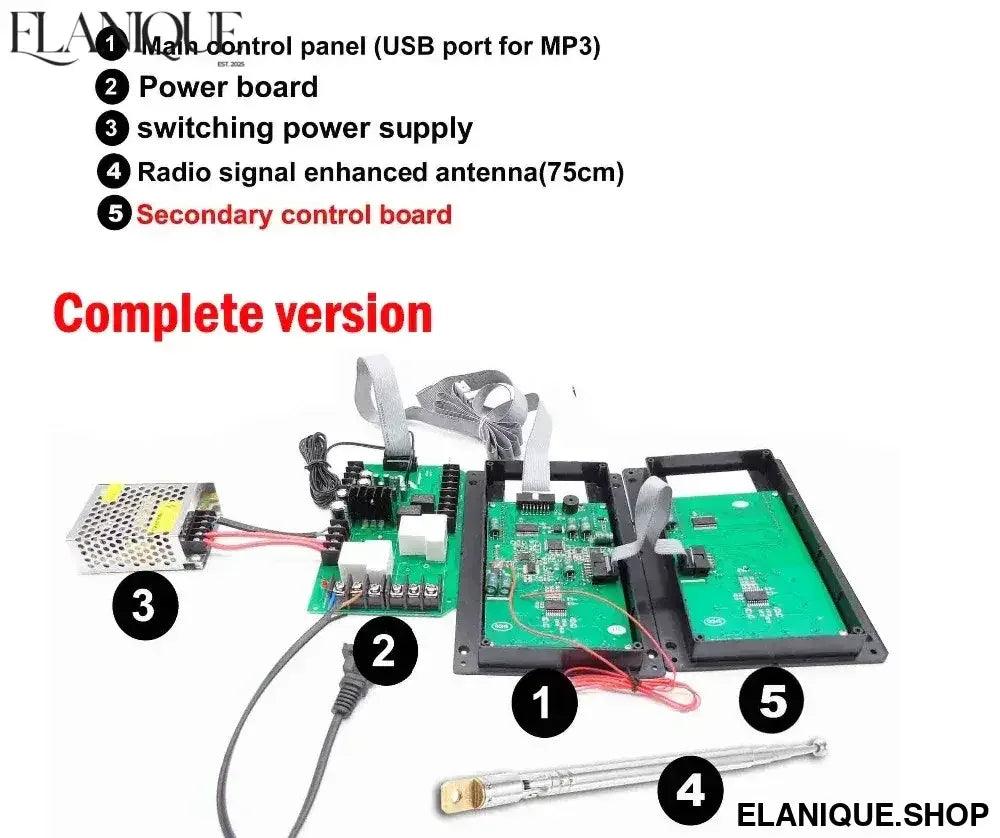

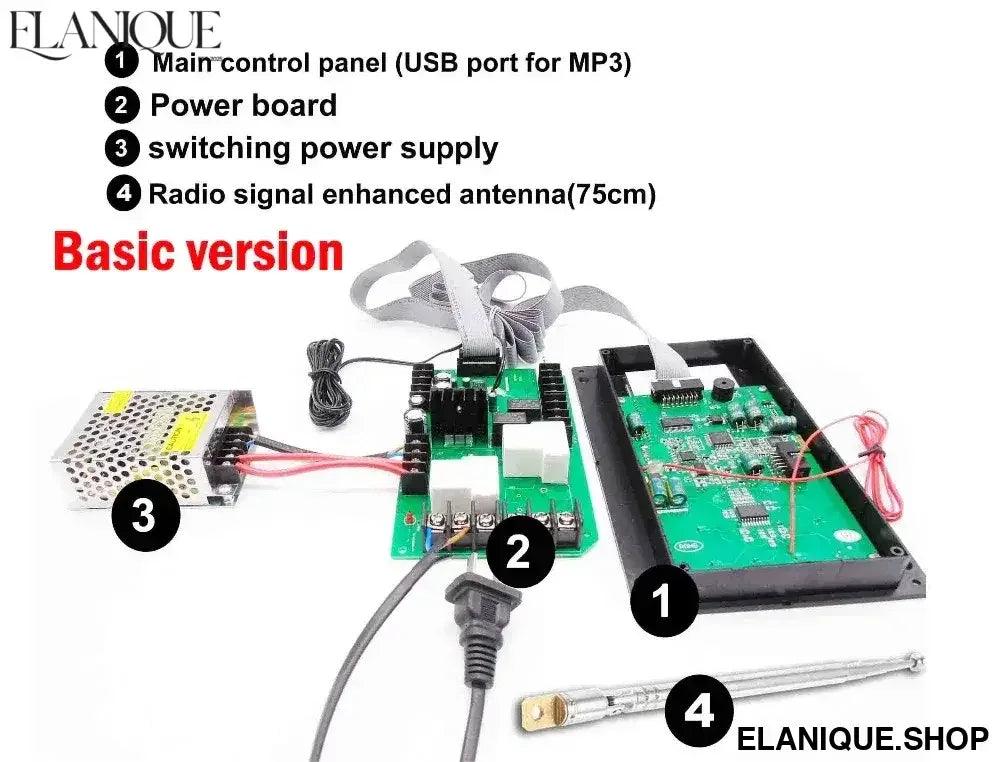

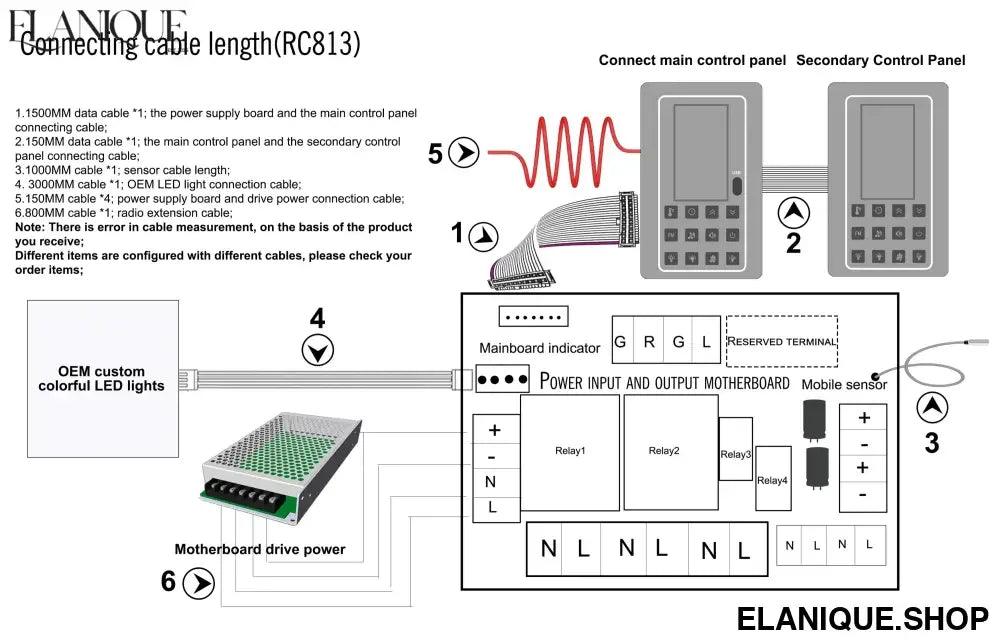

◤Power sharing of switching power supply---Inside lamp+outside lamp+Loudspeaker load+Colorful LED
◎Inside lamp/outside lamp: 12VDC/2A±10% (recommended connection lamp 15W)
◎Loudspeaker: 5VDC, Speaker Impedance≥4Ω, Loudspeaker load: 25W

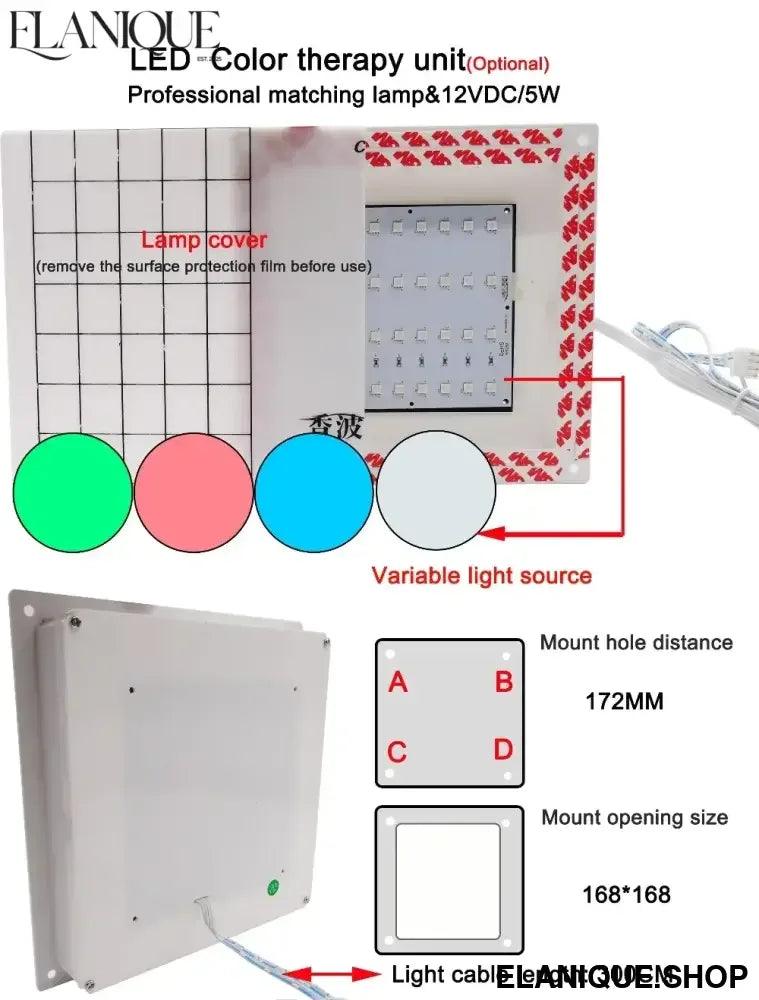

◎Colorful LED: 5W, produced by the manufacturer; Optional
◤Consumption: ≤3 w
◤Input: 1 NTC sensor
◤Panel: 195mm×124mm/7.7inx4.9in

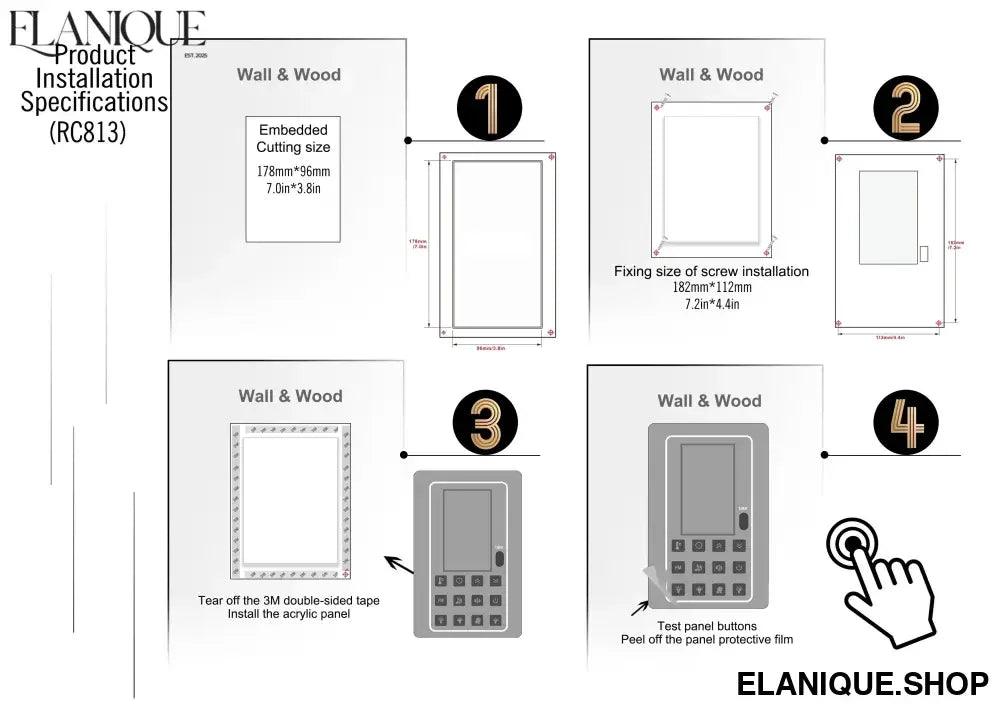

◤EmbeddedCutting size:178mm*96mm/7.0in*3.8in
◤Fixing screwsize:182mm*112mm/7.2in*4.4in
◤Ambient requirements: temperature: -10~60°C; humidity: 20~85%
