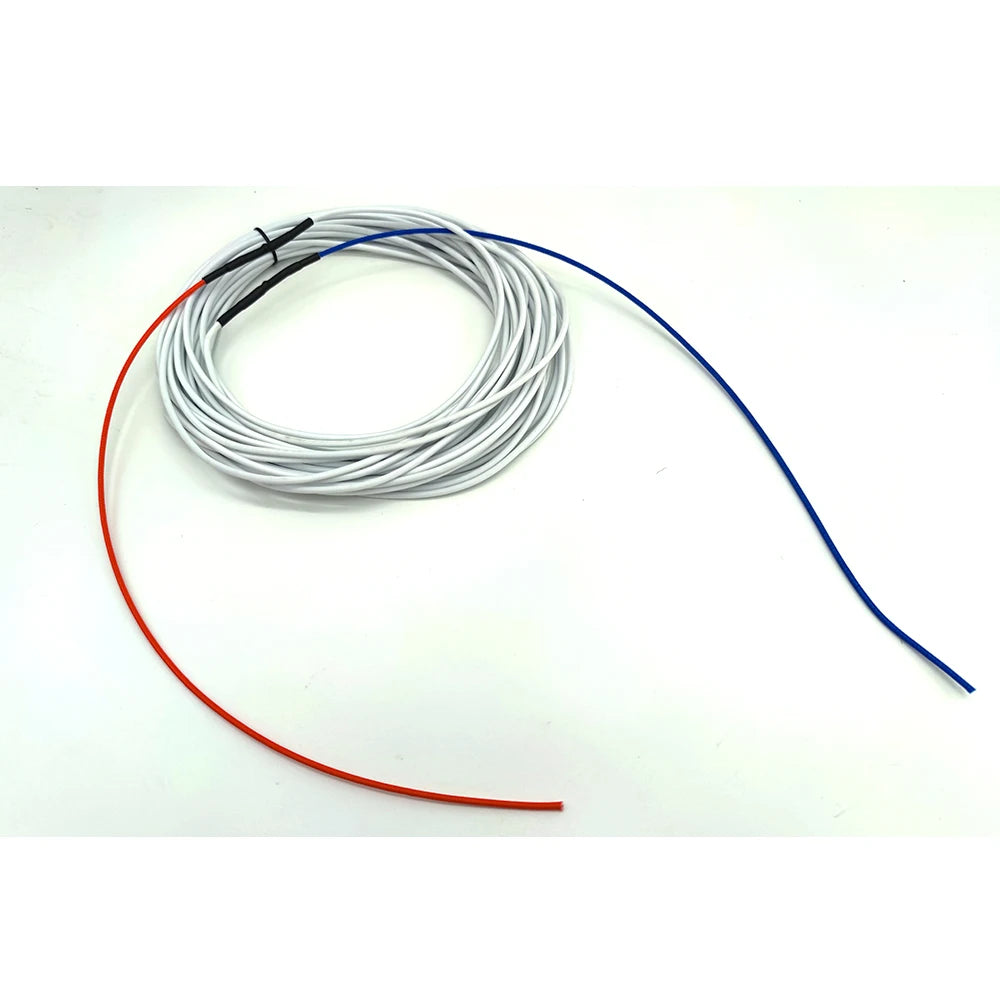

AC110V~240V 12.5m Heating Wire with 0.4m Cold Wire Do Joint for Electric Blankets/Heating Pads/Floor Mat/Floor Warming
380:201442812#12.5 meters
- Free worldwide shipping
- In Stock & Ready to Ship
30 Day Returns
- Auf Lager
SPECIFICATIONS
Application: heating
Brand Name: MINCO HEAT
Certification: CE
Choice: yes
Cold Wire: 40cm
Conductor Material: CarbonFiber
Conductor Type: Solid
Core size: 24K
Diameter: 3mm
Does it include a Battery?: No
Does it include wireless functionality?: No
High-concerned chemical: none
Insulation Material: Rubber
Model Number: CF-24-R
Origin: Mainland China
Outer jacket: Silicone Rubber
Product name: Carbon Fiber Heating Wire
Resistance: 17ohm±10%
Structure: Without modular telephone connectors
Type: Insulated
Use: Not Telecommunication
Voltage: 81-600V（include600V）
Working Voltage: AC110V~240V
is_customized: Yes
semi_Choice: yes
Product Name: Carbon fiber heating wire
Working Voltage:AC110V~240V
Conductor resistance: 17±10% Ω / M
Cold Wire: 40cm
Insulating materials: Silicone rubber
Temperature: 200 degrees celsius limit
Heating conductor: 24K
The product can withstand the power of power: 25W/M
Diameter: 3±0.2mm
Optional colors: White (can customize)
Infrared wavelength: 8UM-18UM
Product Power Calculation:
Voltage * voltage / total resistance = power
For example: use with 110V, length of 12.5 meters
110V × 110V / (12.5 m x 17 Ohm) =56.94 watts
56.94w/12.5m=4.55w/m
For example: use with 200V, length of 12.5 meters
200V × 200V / (12.5 m x 17 Ohm) =188.23 watts
188.23w/12.5m=15.05w/m
For example: use with 220V, length of 12.5 meters
220V × 220V / (12.5 m x 17 Ohm) =228 watts
228w/12.5m=18.24w/m
For example: use with 240V, length of 12.5 meters
240V × 240V / (12.5 m x 17 Ohm) =271.05 watts
271.05w/12.5m=21.68w/m
The data shows that the longer heating wire you use and the smaller output power.
What is the power of the cable? And what is heating temperature?
1. The power of the cable is based on the length that you use, you can calculate the power according to above examples.
2. Power = 5W/m, the temperature is about 30~40C degrees (86~104℉);
Power = 10W/m, the temperature is about 40~50C degrees (40~122℉);
Power = 15W/m, the temperature is about 50~60C degrees (122~140℉);
Power = 20W/m, the temperature is about 60~70C degrees (140~158℉);
Power = 25W/m, the temperatuee is about 70~90C degrees (158~195℉).
1. Please notice that this is for your reference, not exactly right because of different test conditions.
2. Suggest use this heating wire within 25w/m

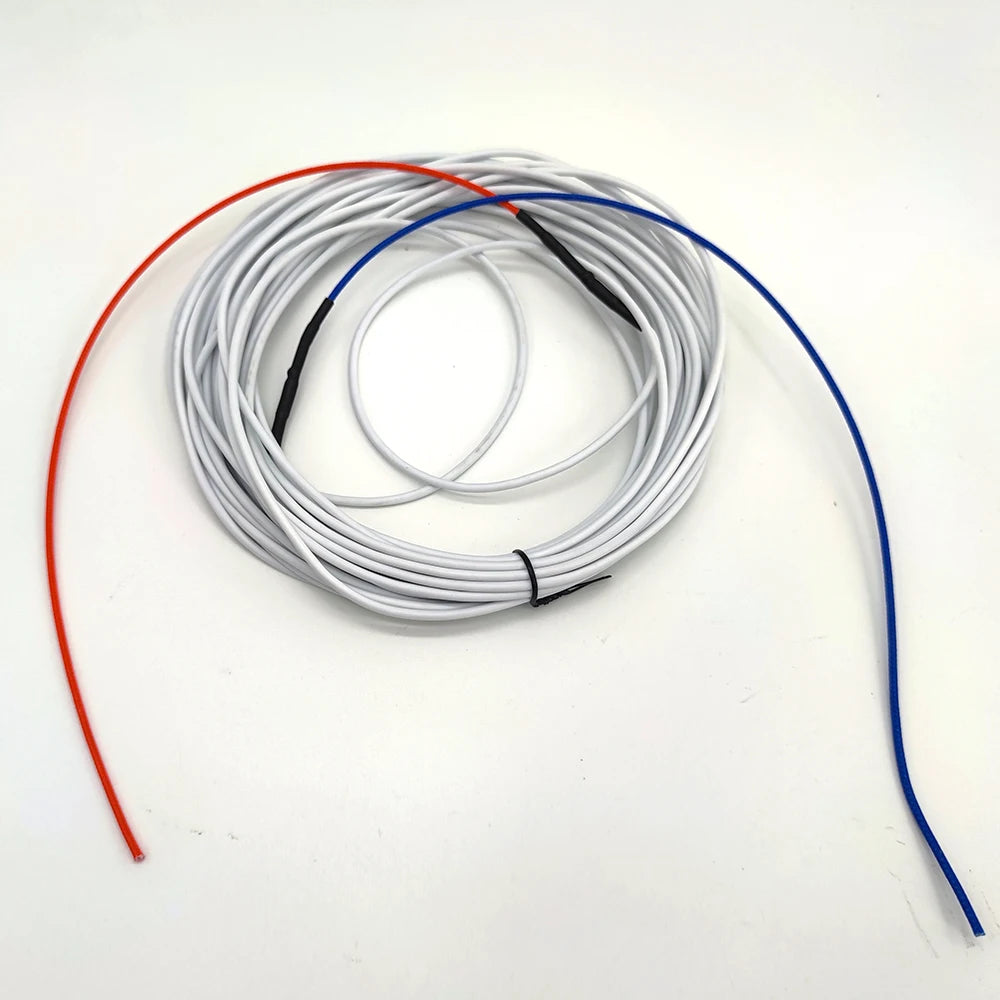

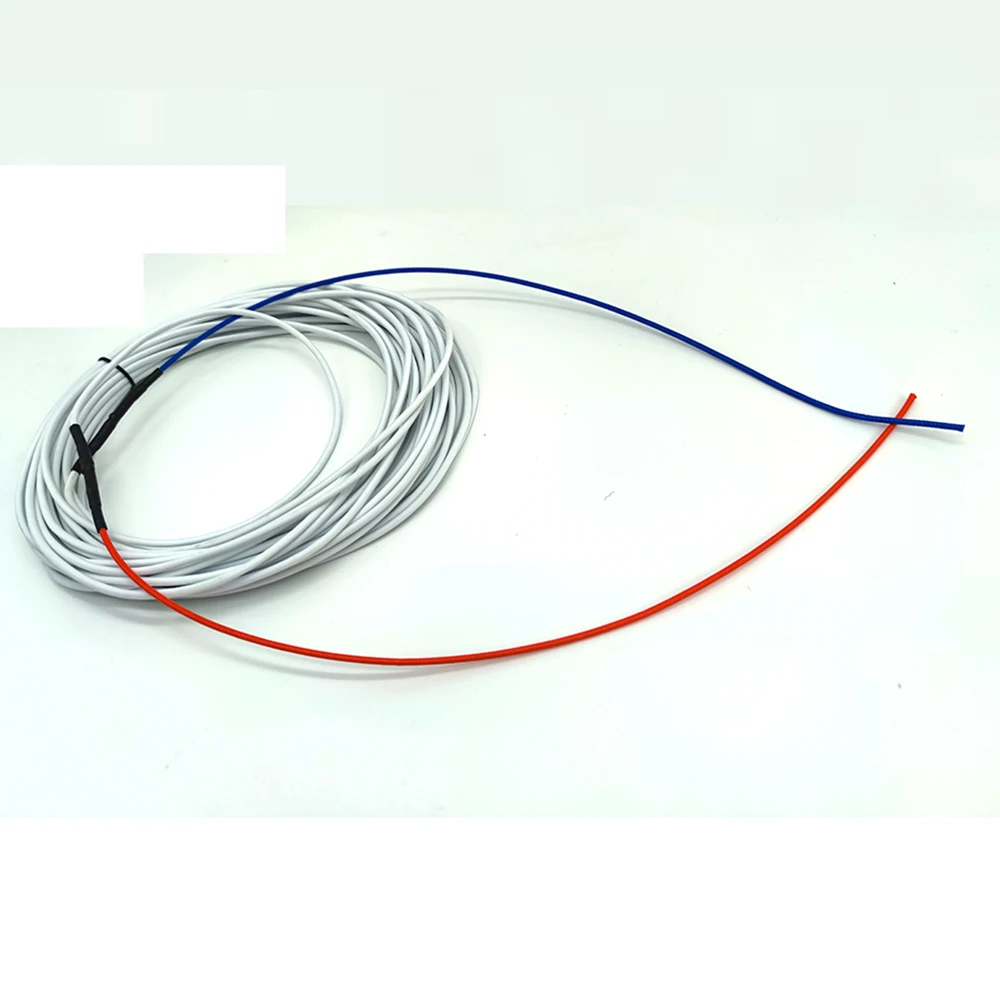

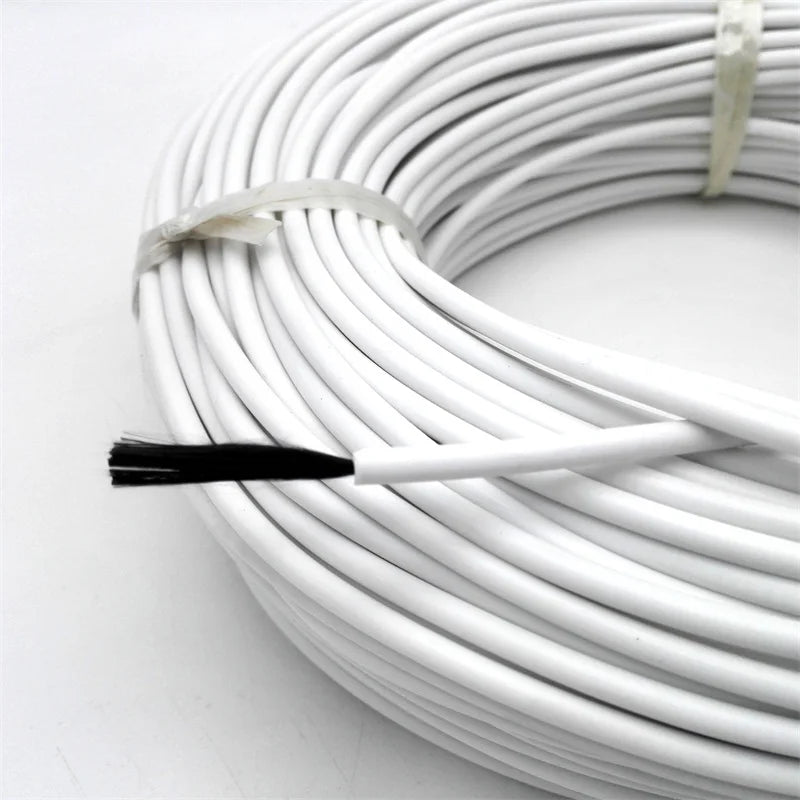

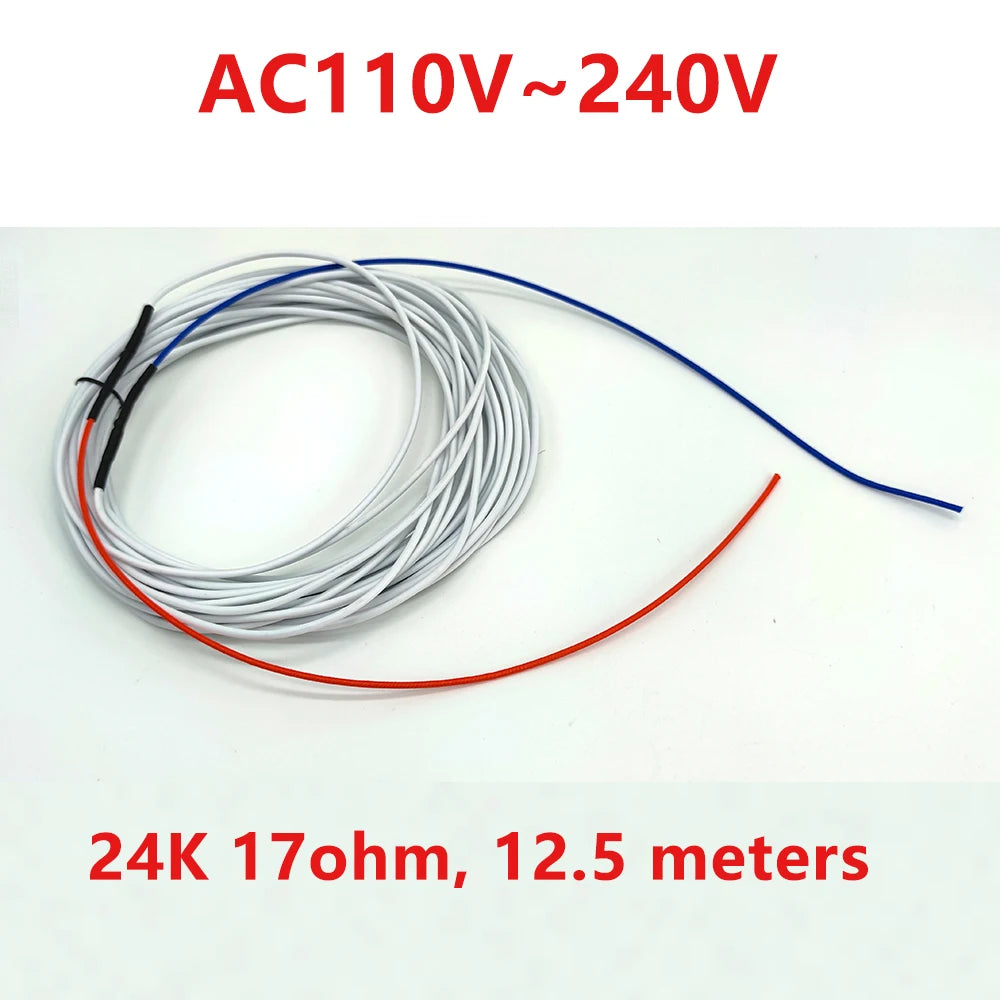

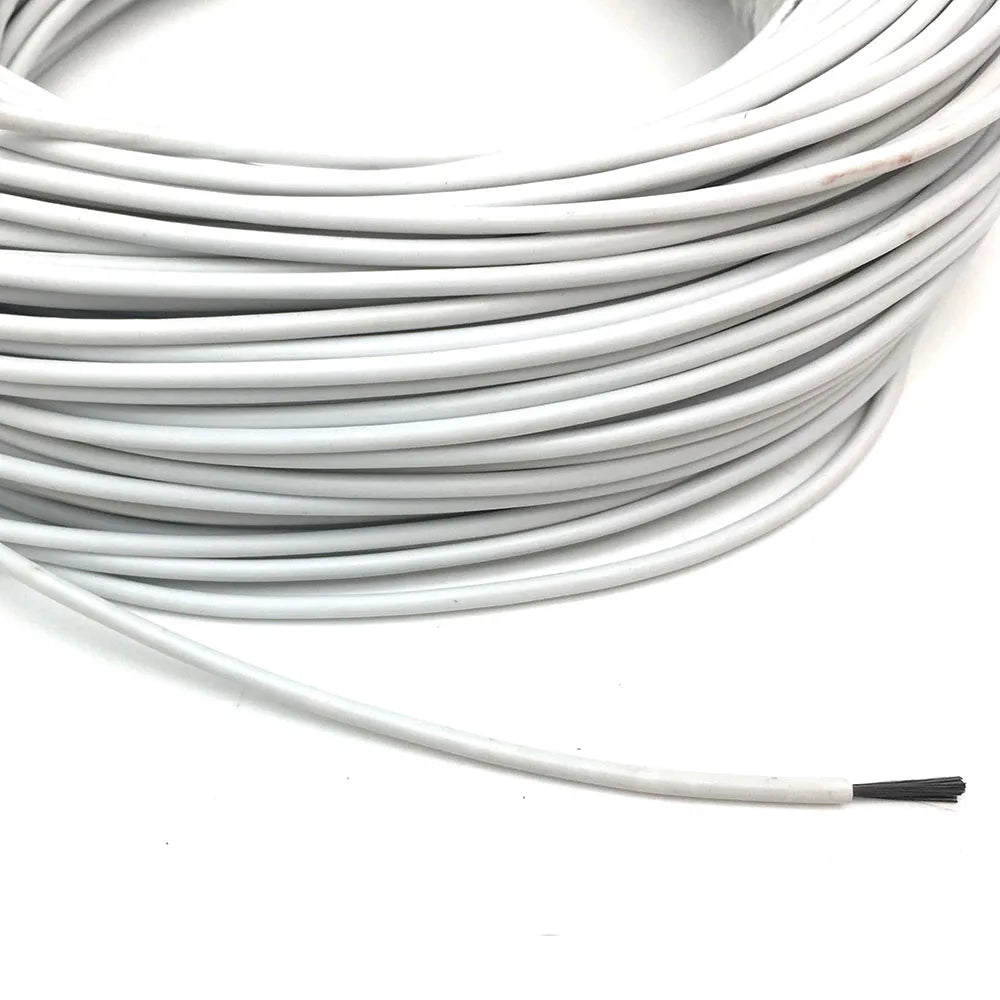

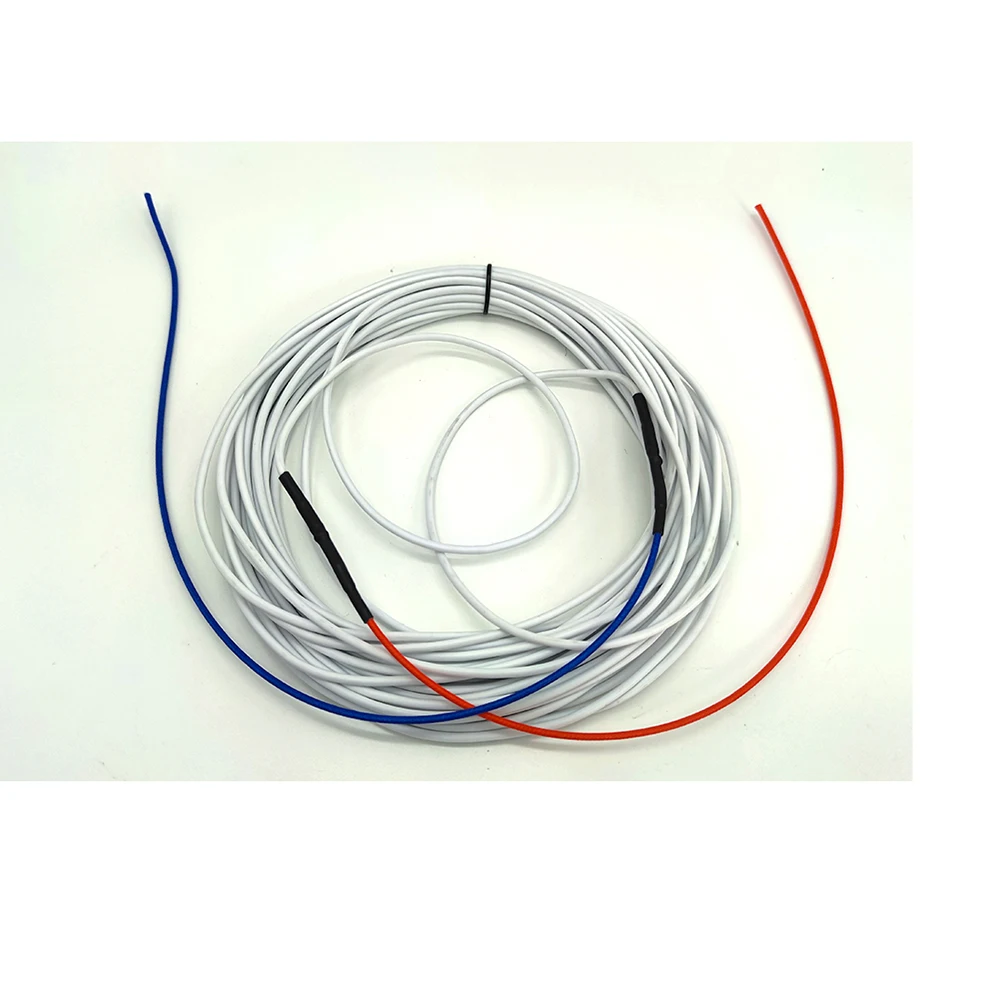

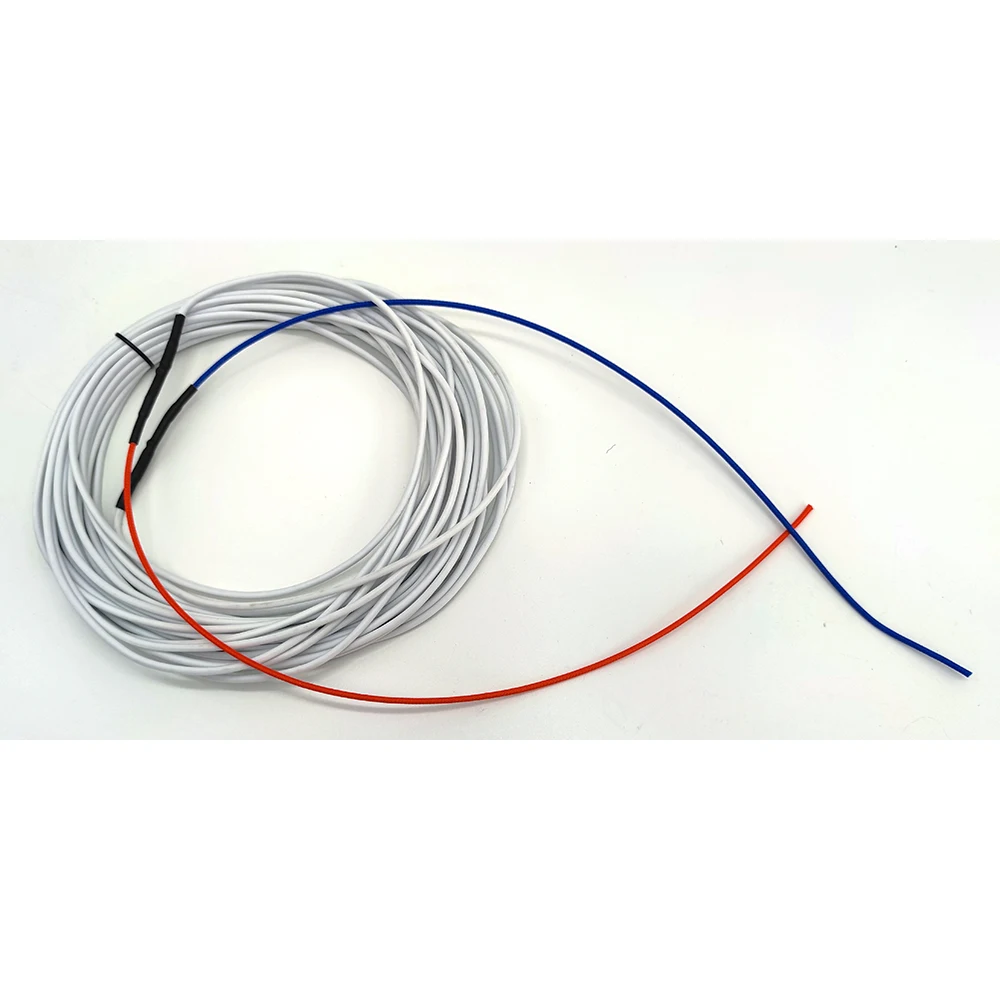

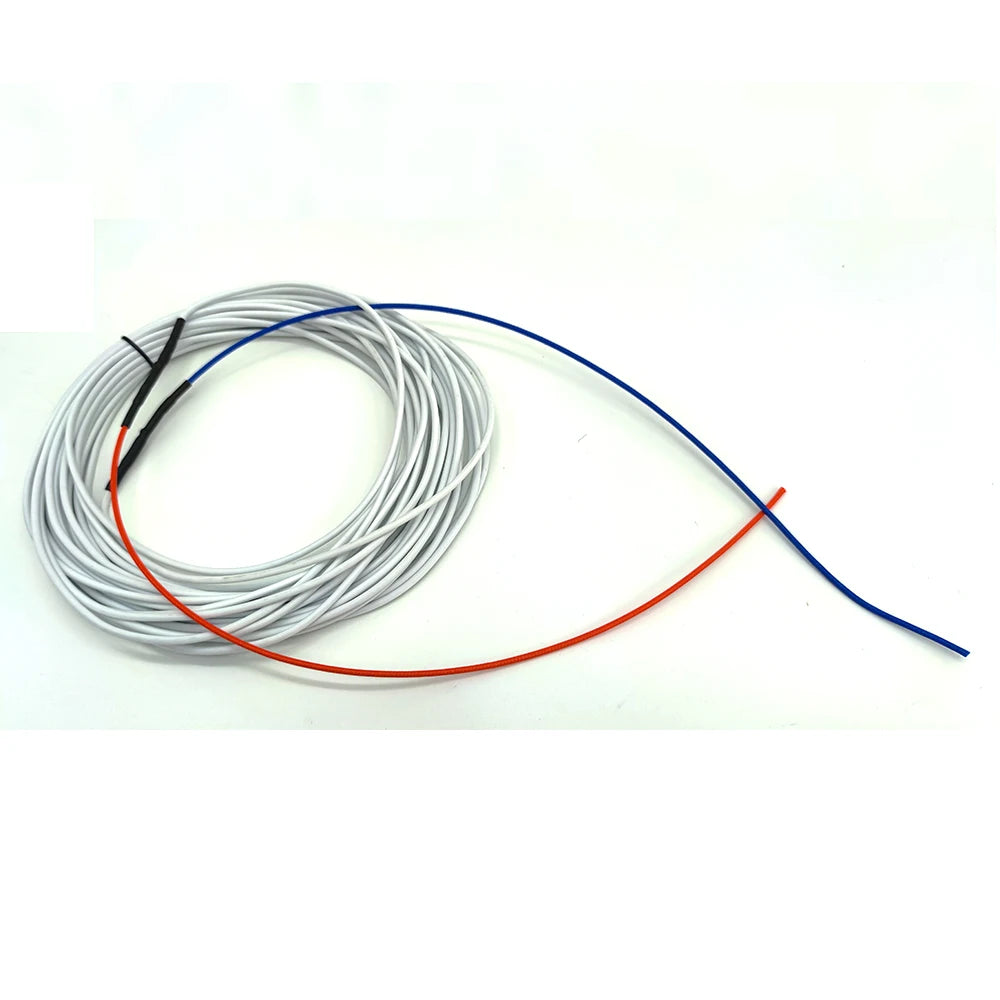

Product Photos:
